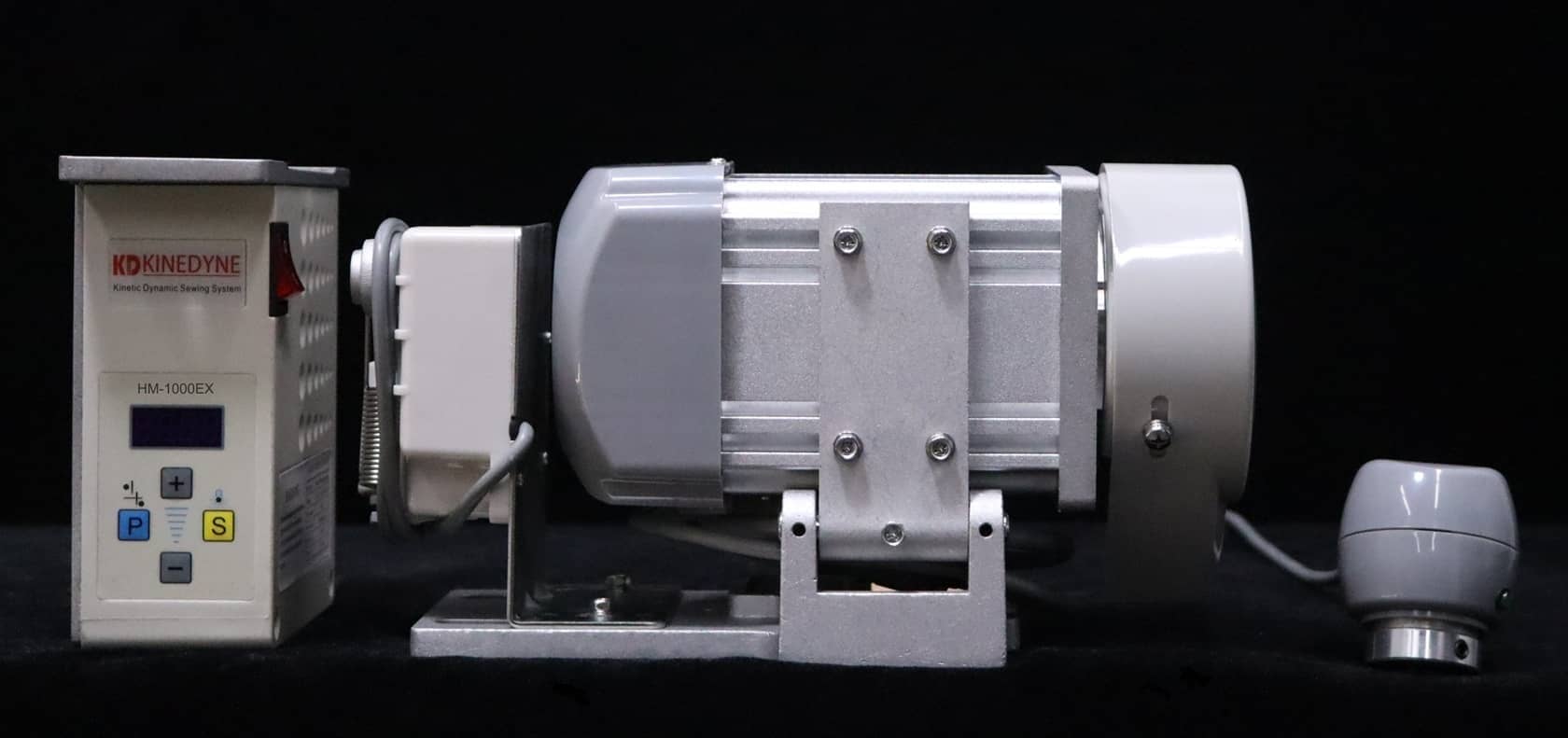

1000W Low Speed Heavy Duty Sewing Machine Servo Motor

1000W Low Speed Heavy Duty Sewing Machine Servo Motor thumbnail

Precision Needle Positioner servo motor thumbnail

Kinedyne HM-1000EX | 1000W High-Torque, Low-Speed, Heavy Duty Industrial Sewing Machine Servo Motor | Silky-Smooth, Stitch-by-Stitch Control

Video on YouTube

$300.00, plus shipping

Options:
Needle Positioner: $50.00

Call us at: 330 692 1418 for more information, or to order

Description +

The right servo motor is significantly important to the performance & efficiency of a heavy duty industrial sewing machine, so it is worth spending a little extra to get the best available. A good heavy duty leather sewing machine machine with the wrong motor and control is a bad investment and will cause a lot of frustration and discontent.

1. Massive Power (1000W / 1.35 HP) & Extra-High Torque (9 Nm)

The Kinedyne HM-1000EX is one of the world’s most powerful energy-saving, "low-speed, high-torque" brushless servo motors. It maintains full power and torque even at low speeds. It delivers an unbeatable needle-piercing force that never stalls. It punches effortlessly through 8+ layers of dense leather, thick webbing, or stacked upholstery. No more stuck stitches, broken needles, or fighting your machine mid-project.

2. Stitch-by-Stitch Precision Control (50 RPM)

Operating smoothly at speeds as low as 50 RPM, this servo motor allows you to execute ultra-fine detail work and navigate intricate sections with ease. Unlike cheap alternatives, it delivers flawless stitch consistency, making heavy-duty stitchers far more manageable for beginners. This level of precision is critical when a single misplaced stitch means instantly ruining expensive materials.

3. Instant Responsiveness & Silky -Smooth Operation

Experience total control with the ultra-responsive HM-1000EX servo motor. Powered by an advanced optical control system—which far outperforms the cheap Hall-effect sensors found in standard brushless motors—this motor responds to your touch instantly. Press the pedal for a perfectly smooth, gradual start with no sudden jumps in speed. Release it, and the motor halts immediately, functioning like a built-in electronic brake. Unlike conventional motors that suffer from coasting momentum and sew unwanted extra stitches, the HM-1000EX stops exactly when and where you want it to.

4. Incredibly Cost-Effective

We believe that world-class power should never be out of reach. The HM-1000EX is our premier value-leader model, engineered to introduce HighTex’s premium sewing technology to leather artisans and upholstery professionals worldwide at an unbeatable price point.

5. No Speed Reducer Required‌

Thanks to its extreme low-end torque output, you never need to install an external reduction pulley system. This cuts down your machine setup time, eliminates extra maintenance points, and — most importantly — the total cost of a HM-1000EX is lower than buying a budget motor plus a separate reducer kit.

6. Precision Needle Position Synchronizer‌

A built-in, high-precision sensor lets you program the needle to stop automatically in the exact "UP" or "DOWN" position every single time. The down position keeps your stitches secure, allowing you to easily pivot fabric, maneuver sharp corners, and turn tight angles without slipping. When you finish a seam, the needle stops in the up position so you can effortlessly remove your fabric and trim the threads.

7. Massive Energy Savings

It reduces energy consumption by 60% - 80% compared to standard clutch motors. The electricity savings can often recover the cost of the motor itself within 2 to 3 years.

8. 10-12 Hour Daily Industrial Thermal Management‌

Unlike hobby-grade motors that overheat after hours of continuous use, the HM-1000EX features a computer-controlled drive board with integrated overheat protection. It actively shields sensitive internal components from heat damage, even running non-stop for full 10–12 hour workdays.

9. Ergonomic 2-Stage Foot Pedal Included‌

The dedicated two-stage foot pedal lets you tap your heel lightly to lift the presser foot for easy material rotation, and press your heel all the way down to lift both the presser foot and the needle at once — no more awkward hand adjustments mid-sew.

10. Pure Copper Coil + Reinforced Alloy Base for Extreme Durability‌

Wound with 100% pure copper coils for superior heat resistance and optimal current transfer, mounted on a heavy-duty reinforced alloy base that never bends even under peak high-torque loads. This rugged, zero-maintenance construction delivers years of reliable performance in the harshest busy workshop environments.

11. Near-Silent Operation‌

Runs almost completely quiet compared to noisy old clutch motors and legacy servo motors, making long sewing sessions far more comfortable for you and everyone in your workshop.

12. Full Dynamic Sewing System Compatibility‌

Designed for ultimate versatility, this motor adapts seamlessly from slow, high-torque precision to high-speed operations. It is compatible with any industrial sewing machine requiring precise, low-speed control, including the Cowboy 797 high speed walking foot upholstery machine and the Cowboy CB4500 extra-heavy-duty leather sewing machine.

Specifications +

Lowest Speed: 50 rpm
Max. Speed: 2500 rpm
Power: 1000W
Max. torque:9 Nm
Voltage: 110V
Warranty:12 months
Packing size: 335X305X280MM, 9 KGS

Product Information +

For artisans crafting thick leather belts, bags, holsters, sheaths, harnesses, saddles, horse tack, or upholstery, Kinedyne has long been the industry benchmark. Unlike cheap alternatives that lose power at low speeds, Kinedyne motors deliver uncompromising torque with surgical precision—even at a stitch-by-stitch crawl. However, for many leatherworkers, premium Kinedyne models have historically been a significant financial investment... We believe world-class power should be accessible to everyone. To bridge this gap, we developed the HM-1000EX Brushless servo motor. This cost-effective, heavy-duty motor retains Kinedyne’s legendary low-speed piercing power and silky-smooth control. By stripping away non-essential electronics, we reduced production costs without compromising core performance, passing those savings straight to you. Plus, this budget-friendly powerhouse still comes complete with a precise needle positioner to ensure perfect stitch control every time. Upgrade to the HM-1000EX today for silky-smooth, highly predictable power that fits your budget!
