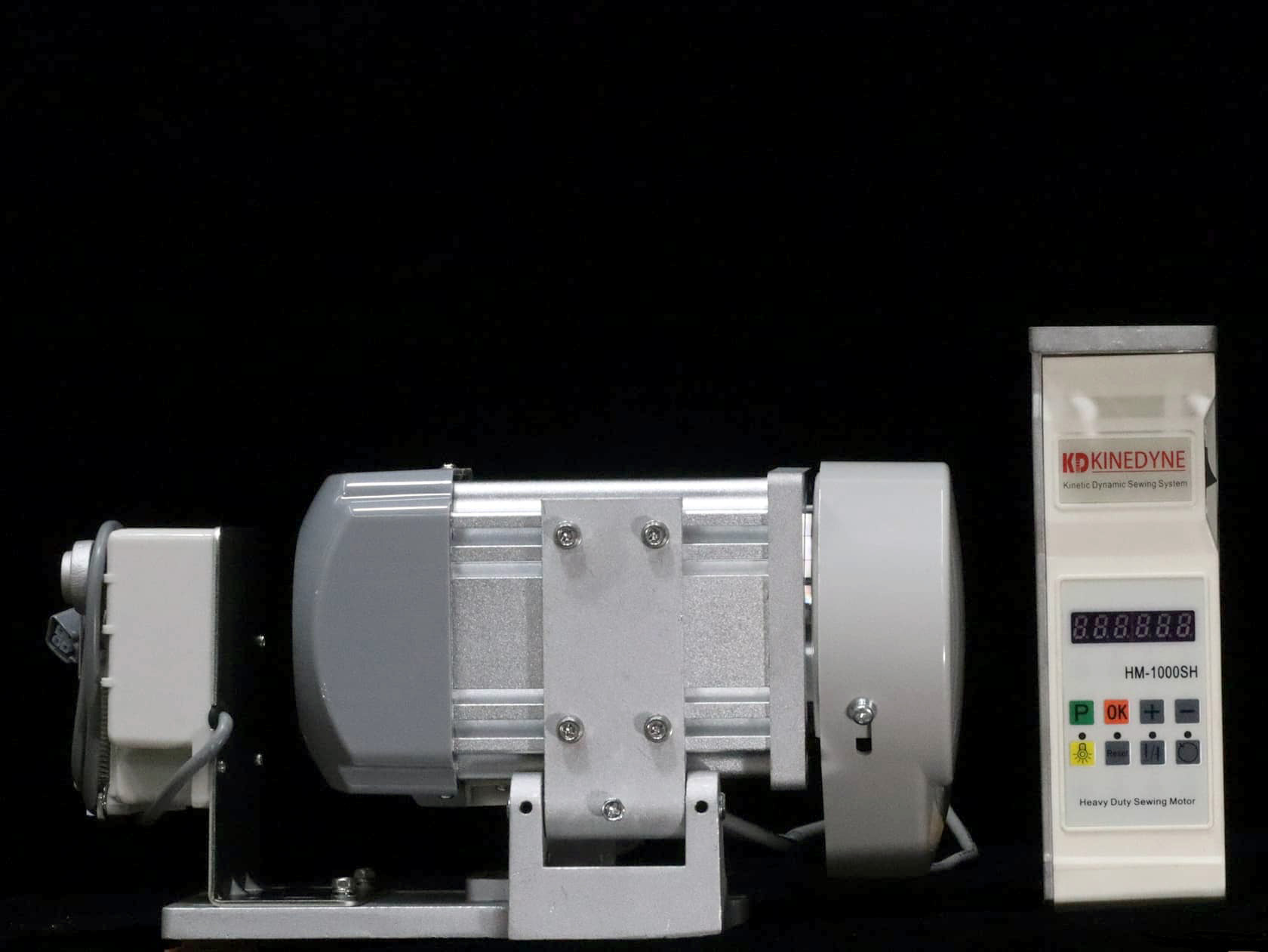

Kinedyne M-1000SH | 1000W Ultra-High-Torque Servo Motor for Extra-Heavy-Duty Industrial Sewing Machines | Precision Low-Speed Control

Video on YouTube

$425.00, plus shipping

Options:
Needle Positioner: $50.00
JOG dial: $75.00
Half stitch button: $50.00
Low speed button: $50.00

Have questions or ready to order? Call us at 330-692-1418

Description +

Ever find yourself completely frustrated by your sewing motor? When you are working with heavy saddles or thick leather, standard motors either bog down and stall, or take off like a rocket the moment you step on the pedal. A single jerk can instantly ruin hours of hard work. Introduce the ultimate solution to your workbench: the HM-1000SH heavy-duty servo motor.
Finishing steps and sharp corners are where standard motors fail because they simply overshoot. The HM-1000SH eliminates this frustration by delivering effortless "one-stitch, one-control" precision. Whether you are piercing through eight layers of thick veg-tan leather or laying down ultra-fine edge work, you are always in total command.
Don't let an outdated motor limit your craftsmanship! Upgrade your workshop today.

1. Massive Power (1000W / 1.35 HP)

Delivering a robust 1000-watt output—equivalent to approximately 1.35 horsepower (HP) of pure performance—this exceptionally powerful servo motor effortlessly drives extra-heavy-duty, long-arm industrial sewing machines with zero hesitation.

2. High Torque at Low Speeds

The motor generates an impressive 9 Nm of torque even at its lowest speed, delivering immense needle-penetration force. This allows operators to sew through multiple layers of heavy leather and dense materials seamlessly without stalling.

3. Stitch-by-Stitch Precision

With a minimum speed of just 50 RPM, the motor delivers complete control over the sewing process, allowing operators to execute precise, stitch-by-stitch detailed work with ease. This ultra-slow capability is also ideal for beginners. This level of precision is critical when a single misplaced stitch means instantly ruining expensive materials. Utilizing the HM-1000SH high-torque motor for heavy, thick sewing applications completely eliminates the need for an obsolete external speed reducer.

4. Instant Responsiveness & Silky -Smooth Operation

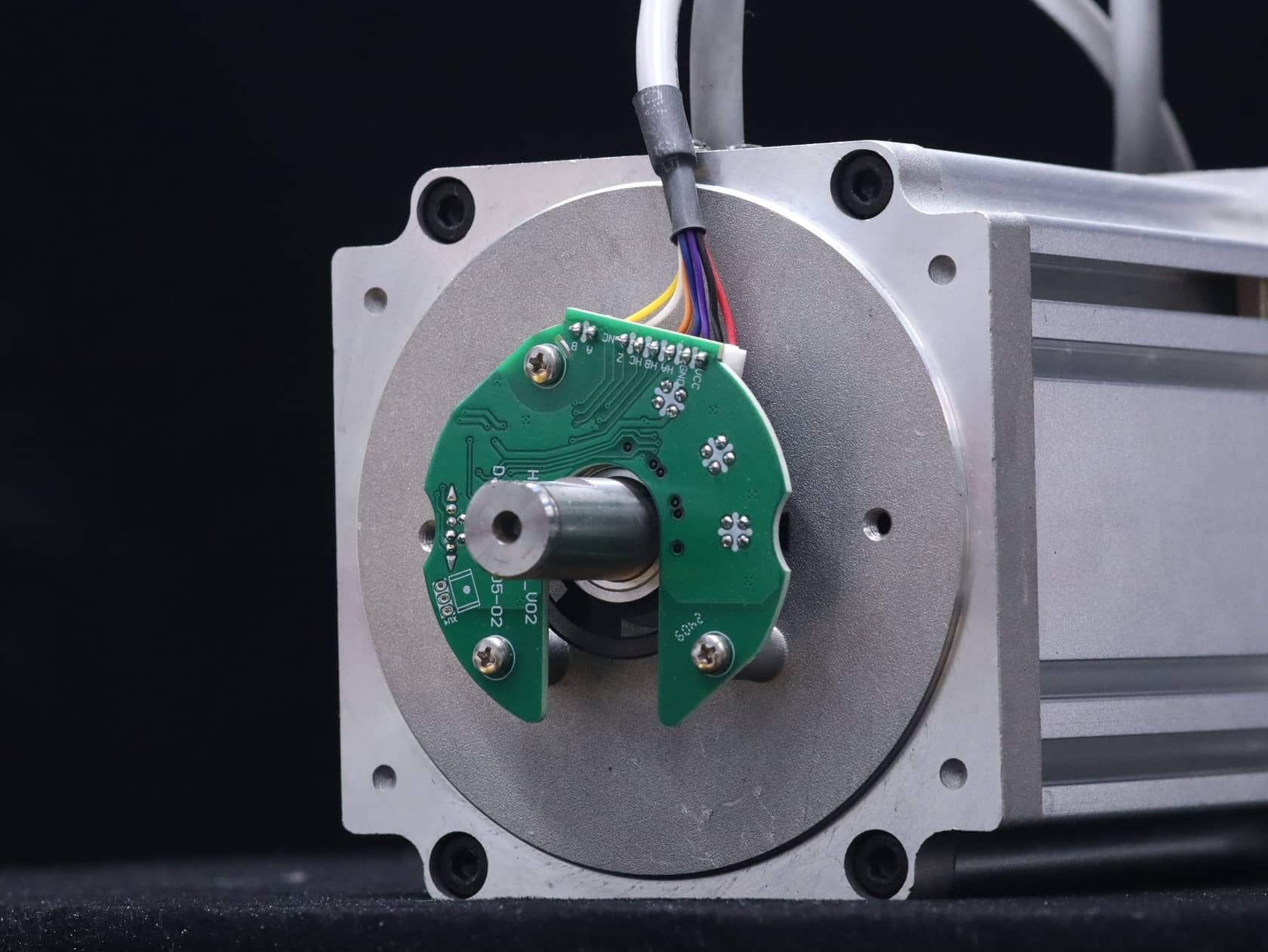

Gain total control over your machine with the ultra-responsive HM-1000SH servo motor. While standard brushless motors rely on cheap Hall-effect sensors, the HM-1000SH utilizes a premium, state-of-the-art optical control system for immediate, zero-lag performance that responds to your touch instantly. Pressing the pedal delivers a perfectly smooth, gradual start with no sudden jumps in speed. The moment you release it, the motor halts immediately, functioning as a highly effective built-in electronic brake. Unlike conventional motors that suffer from coasting momentum and sew unwanted extra 2-3 stitches, the HM-1000SH stops dead on your exact target.

5. Smart Automation

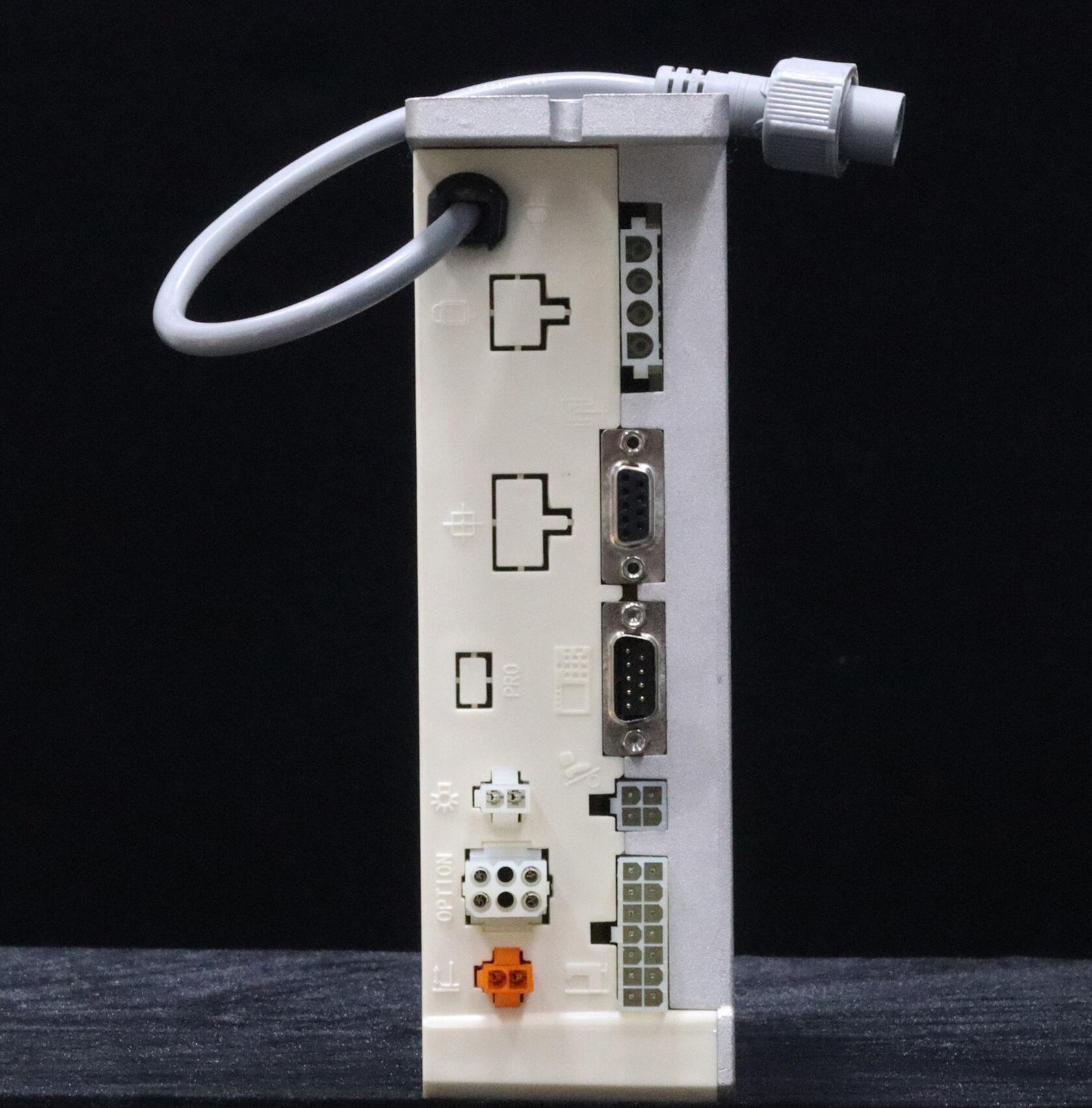

This motor is equipped with specialized expansion ports and built-in firmware to seamlessly power an automatic presser foot lifter, a needle cooler, and an automatic reverse function. Developed in collaboration with our experienced global dealer network, we integrated a suite of intuitive user controls—including a Soft-Start function, an electronic Jog-Dial, and a Half-Stitch button. Together, these smart advancements maximize machine control, enabling operators to achieve flawless, precise stitching every time.

6. Massive Energy Savings

This motor reduces energy consumption by 60% to 80% compared to standard clutch motors. For most operations, these substantial electricity savings allow the motor to completely pay for itself within 2 to 3 years.

7. Precision Needle Positioner Synchronization

The integrated Kinedyne needle positioner synchronizer allows you to program the needle to stop reliably in either the UP or DOWN position. When pivoting the workpiece to change sewing directions, the needle parks in the DOWN position to hold the fabric securely in place without dropping a stitch. At the end of a seam, the needle automatically stops in the UP position, allowing for immediate material removal and effortless thread trimming.

8. Ergonomic 2-Stage Foot Pedal

The dedicated two-stage foot pedal enables fluid, hands-free operation. A light heel-tap automatically lifts the presser foot for easy material rotation, while pressing your heel all the way down lifts both the presser foot and the needle simultaneously—completely eliminating awkward hand adjustments mid-sew.

9. Premium Pure Copper Coils

Built for maximum durability, the Kinedyne servo motor utilizes 100% pure copper stator windings. This high-grade material maximizes electrical conductivity for smooth power delivery while providing exceptional heat resistance to prevent burnouts during prolonged, high-intensity operation.

10. Reinforced Alloy Base (Maximum Stability)

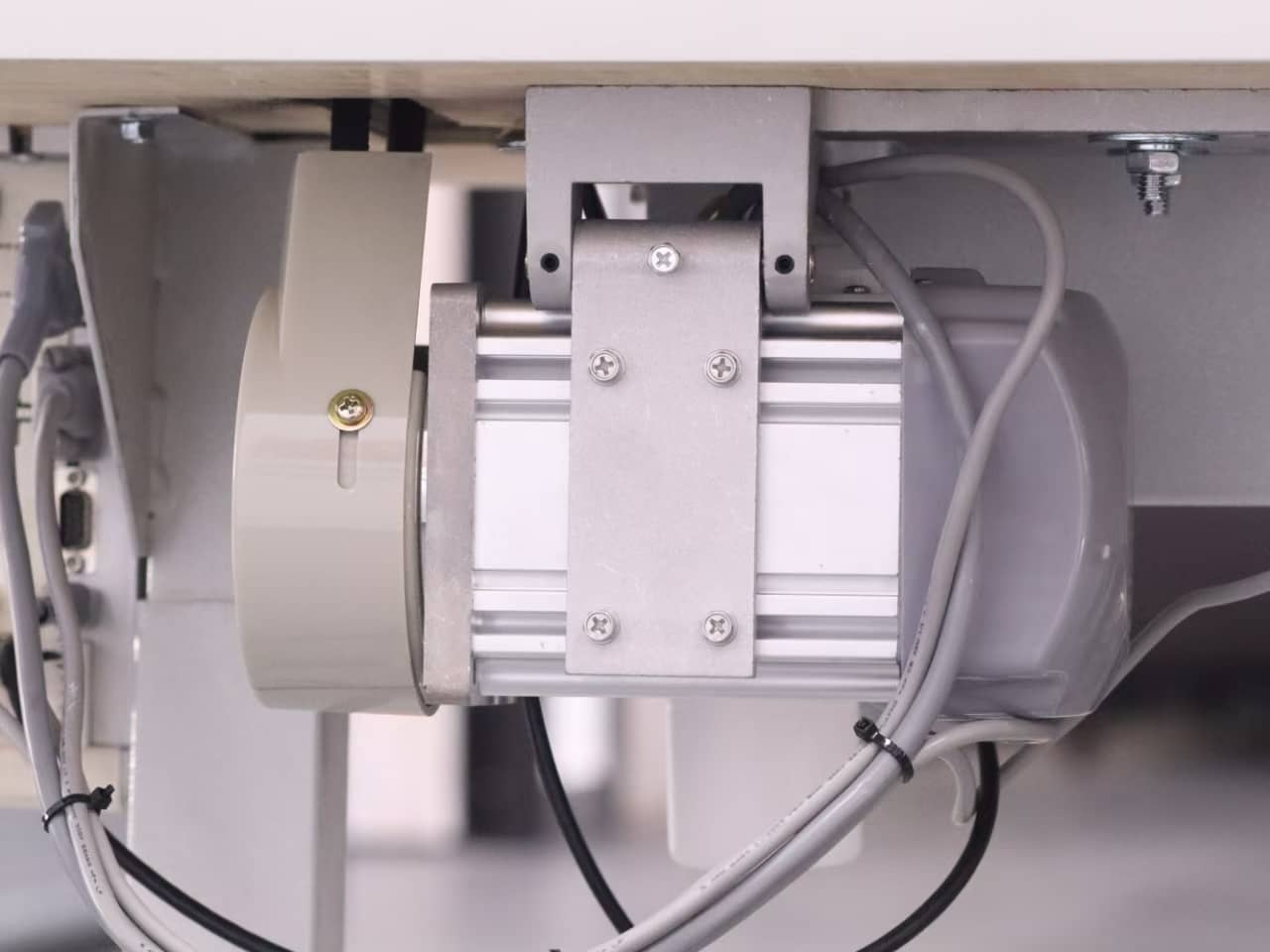

Built from a thick, premium metal alloy, the heavy-duty mounting base easily handles the massive torque and horsepower generated by the motor. This rigid structural design eliminates flexing, providing an exceptionally stable, secure, and vibration-free foundation for your sewing machine setup.

11. Integrated Overheat Protection

This motor is equipped with an internal overheat protection controller that enables continuous, ultra-low-speed operation without thermal build-up. This advanced feature makes it ideal for extra-heavy-duty industrial sewing machines and large-scale manufacturing environments requiring 10 to 12 hours of continuous multi-shift operation daily.

12. Full-Coverage Belt Guard

Designed with operator safety in mind, the integrated belt guard completely covers the motor pulley and belt system. This crucial safety feature eliminates accidental contact points, drastically minimizing the risk of workplace injuries.

Specifications +

Lowest Speed: 50 rpm
Max. Speed: 2500 rpm
Power: 1000W
Max. torque:9 Nm
Voltage: 110V
Warranty:12 months
Packing size: 335X305X280MM, 9 KGS

Product Information +

Kinedyne HM-750SH can drive most heavy duty sewing machines without any difficulty. However we wanted to ensure extra reliability and power with a more powerful servo motor for extreme operating conditions. For example, CB-4500 extra heavy duty leather sewing machine, 366-76-12-HM robust long arm zigzag sewing machine, 733 CS extreme heavy duty sewing machine, and 728-30 long arm twin needle heavy duty sewing machine are great machines that can use this motor. Long arm , heavy duty leather, and double needle machines require extremely high torque. That's why we developed the HM-1000SH super powerful sewing servo motor.
