Heavy duty Thick Thread Decorative Stitch Sewing Machine

Heavy duty Thick Thread Decorative Stitching Machine

Thick thread decorative seam sewing machine

Heavy duty Thick Thread Decorative Stitch Sewing Machine thumbnail

Heavy duty Thick Thread Decorative Stitching Machine thumbnail

ornamental seams sewing machine thumbnail

Thick thread decorative seam sewing machine thumbnail

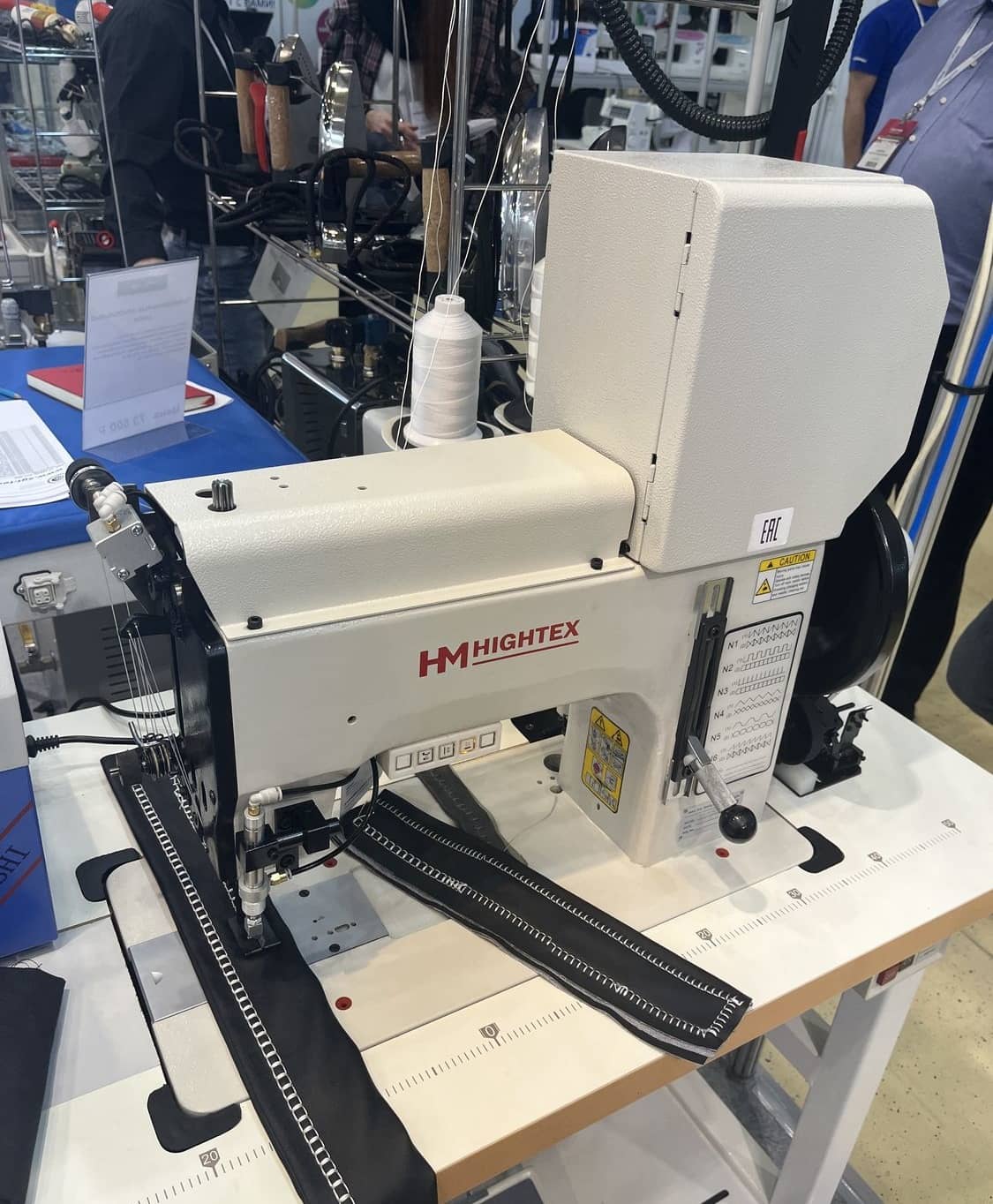

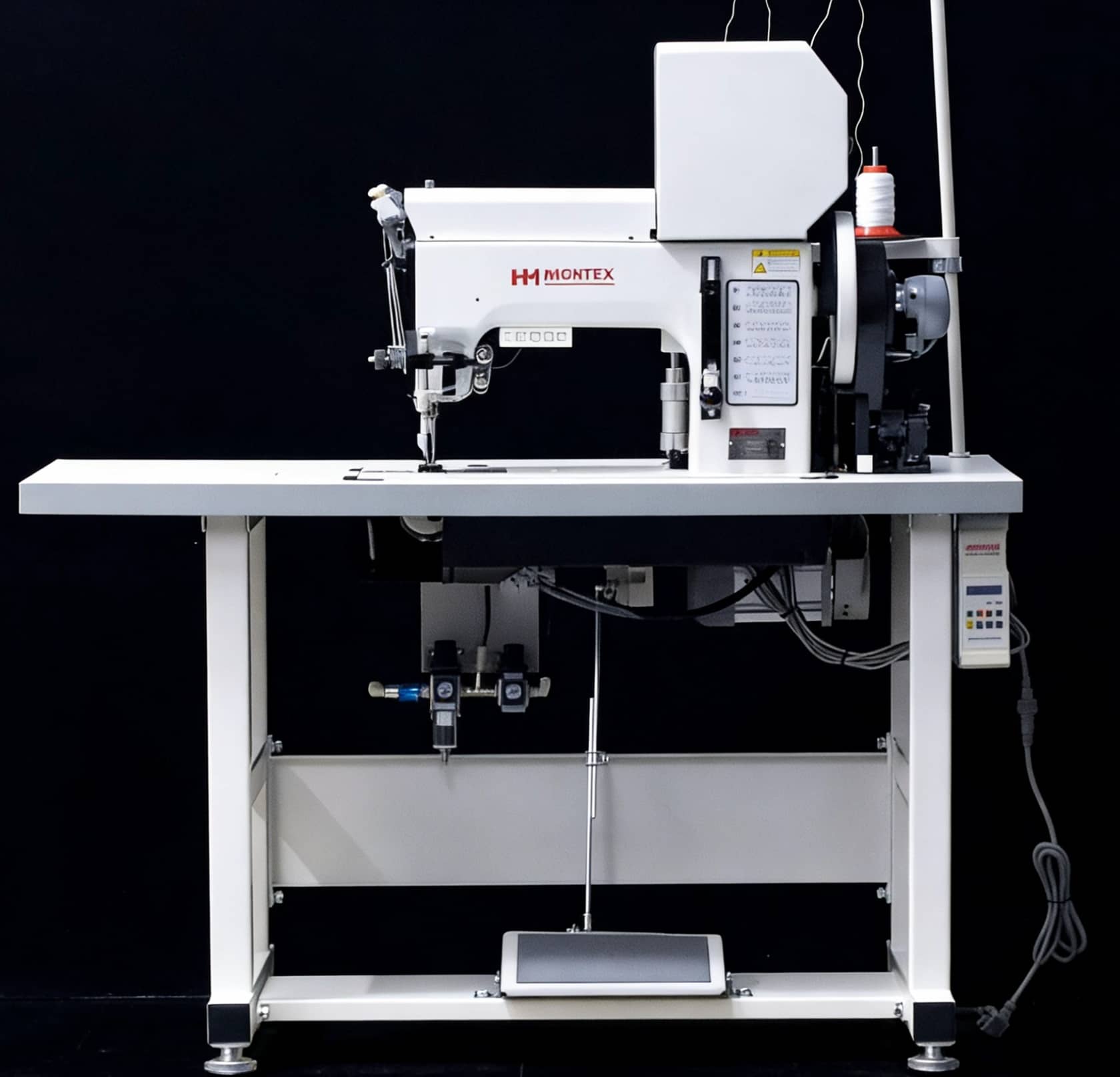

204-104MD Double-Needle Heavy-Duty Thick-Thread Decorative Stitch Sewing Machine - Engineered for Leather Sofas, Armchairs, and Automotive/Aircraft Interiors

Click here for DEMO video

$9,860.00, plus shipping

Special order this machine by calling 330 692 1418. Customer service will be happy to help and provide you with an estimated lead time.

Call us at: 330 692 1418 for more information, or to order

Description +

Long sewing cycles by Barrel shuttle hook with large bobbin capacity, even sewing with extremely thick thread;
The rotating needle bar technology is to personalize your upholstered furniture with 12 standard decorative stitch patterns;
The performance and quality of this machine has been approved by the leading leather sofas and furniture manufacturer Natuzzi;
High needle penetration power guarantee easy sewing thick spots or cross seams(over transversal seams), without skipped stitch, loose bottom thread, shorten stitch length;
Powered by a Kinedyne low-speed servo motor for precise speed control, it allows you to sew at a slow, consistent speed—ideal for both beginners and intricate artisan work;
Standard supplied with Pneumatic center seam guide,Automatic presser foot lift,Tape-reel bracket of front tape guide,Automatic thread tension release and Pneumatic center seam guide;
Up to 12 mm long stitches for decorative topstitching seams.

Specifications +

Max. Speed: 400 spm
Max. Stitch Length:12mm
Needle gauge sets:8mm, 10mm and 12mm
Needle:794, DY x 3 (#24)
Max.Thread Sizes:8/3 (=V415, T-400) or 1mm Braided yarn
Maximum Foot Lift: 20mm
Pattern changing method:Change Cam
Hook type: 204 Large Barrel Shuttle Hook
Feeding mechanism:drop feed

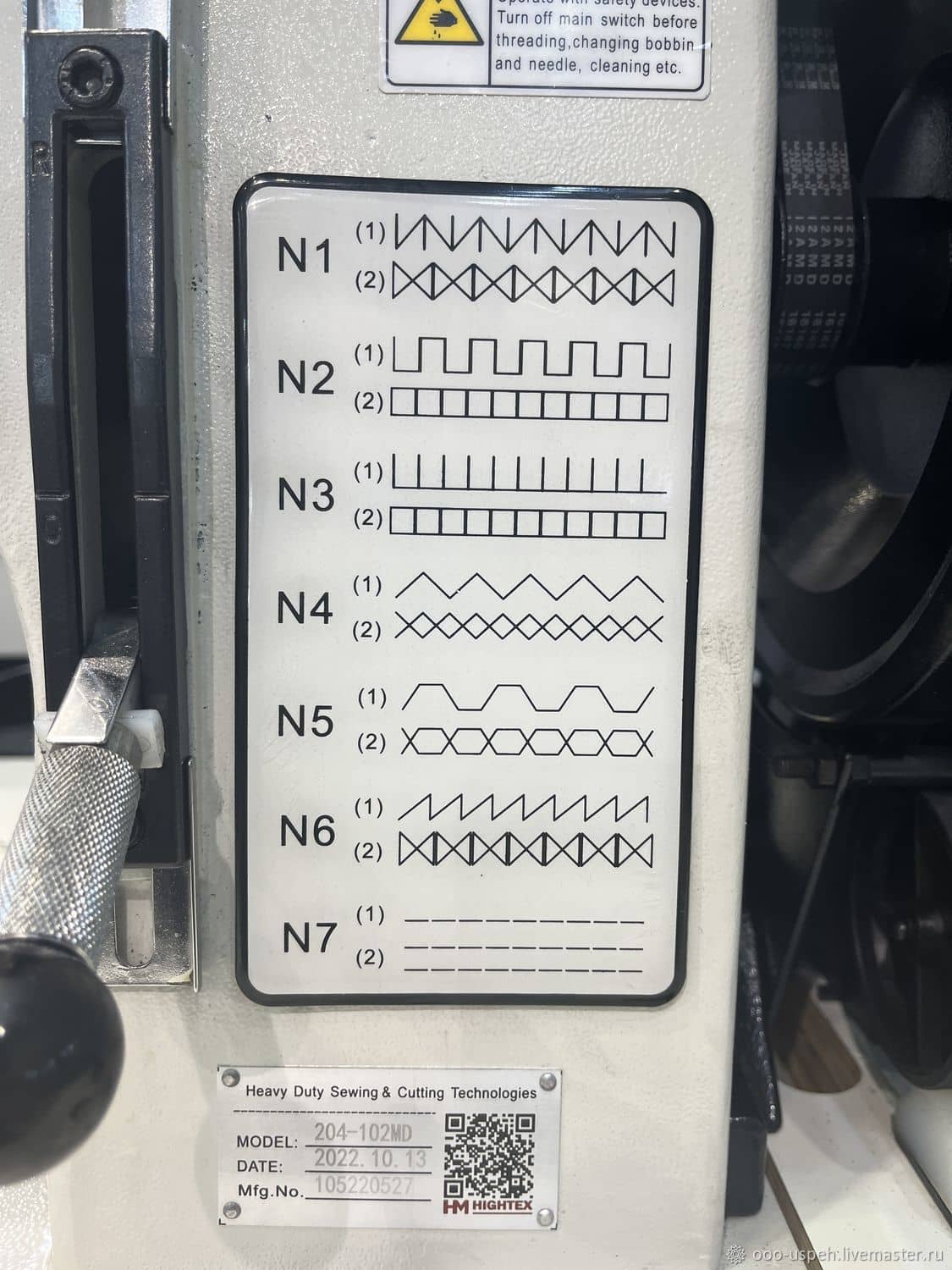

Number of decorative seams:7 single needle + 7 double needles
Clearance room:320mm (L) x 340mm( H)
Packing size(assembly):1240X1380X635MM, G.W: 170KGS

Product Information +

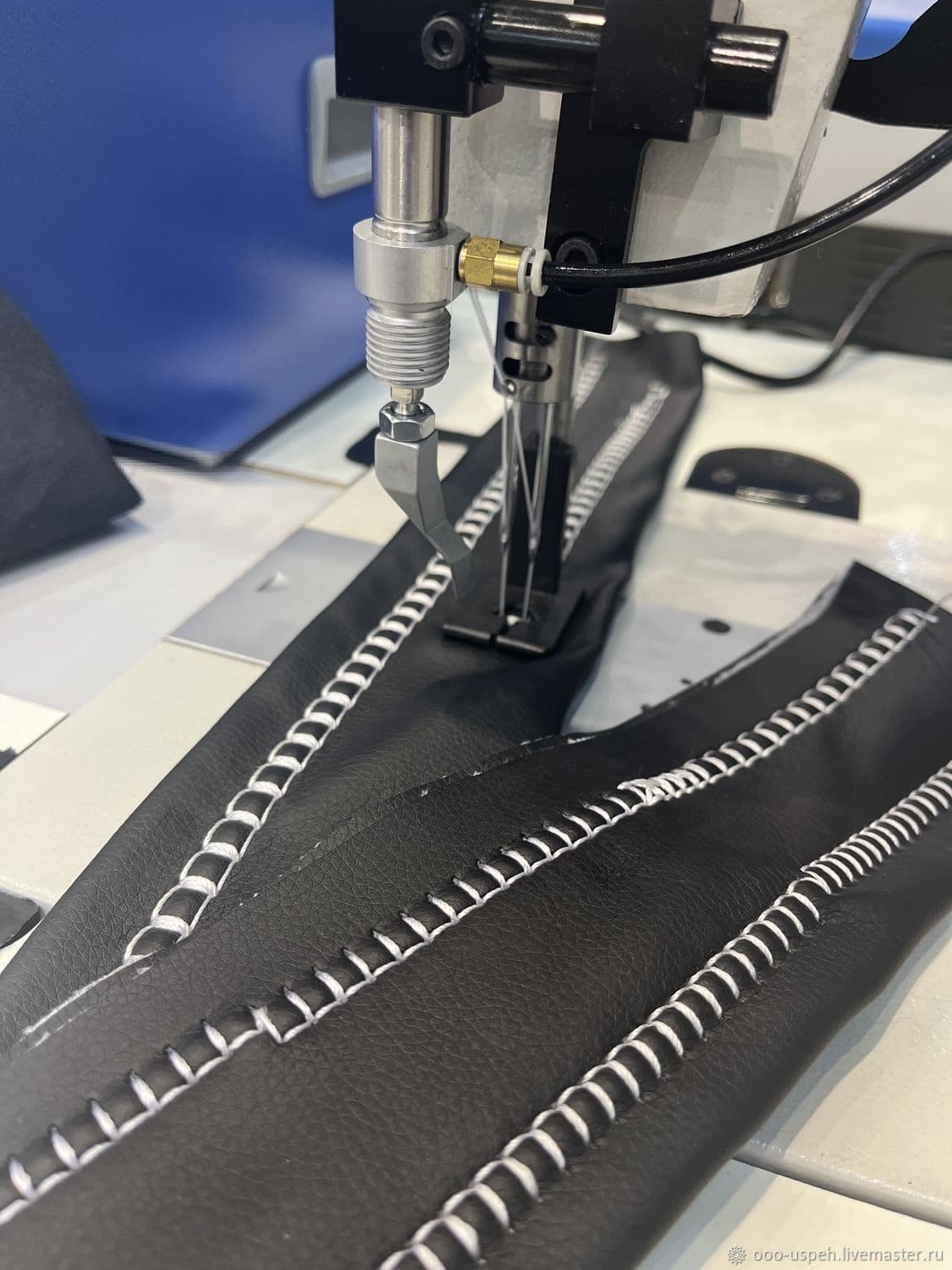

Equipped with a rotating needle bar, the HighTex 204-104MD effortlessly produces 14 different ornamental stitch patterns. Its massive large barrel shuttle hook is custom-engineered for decorative topstitching using extra-thick threads. For flawless material handling, the machine features a specialty compensating roller presser foot that excels at stitching sharp corners, heavy butted or overlapped seams, and extra-heavy padded or non-padded leather and upholstery fabrics.A pneumatic seam-center guide guarantees perfectly uniform seam quality, while a built-in cord-insert mechanism allows for the seamless integration of piping, cording, or rope inside the seams. This high-end decorative stitching machine serves as an ideal, cost-effective replacement for the Durkopp Adler 204-102 MD and Ciucani X86/204 C. Driven by a Kinedyne HM-1000SH low-speed electronic servo motor, it offers operators maximum control for slow, intricate, and detailed stitching. The exceptional reliability of this upholstery machine has been field-proven by industry-leading furniture manufacturers over the past decade, including global brands like Natuzzi and BoConcept.
