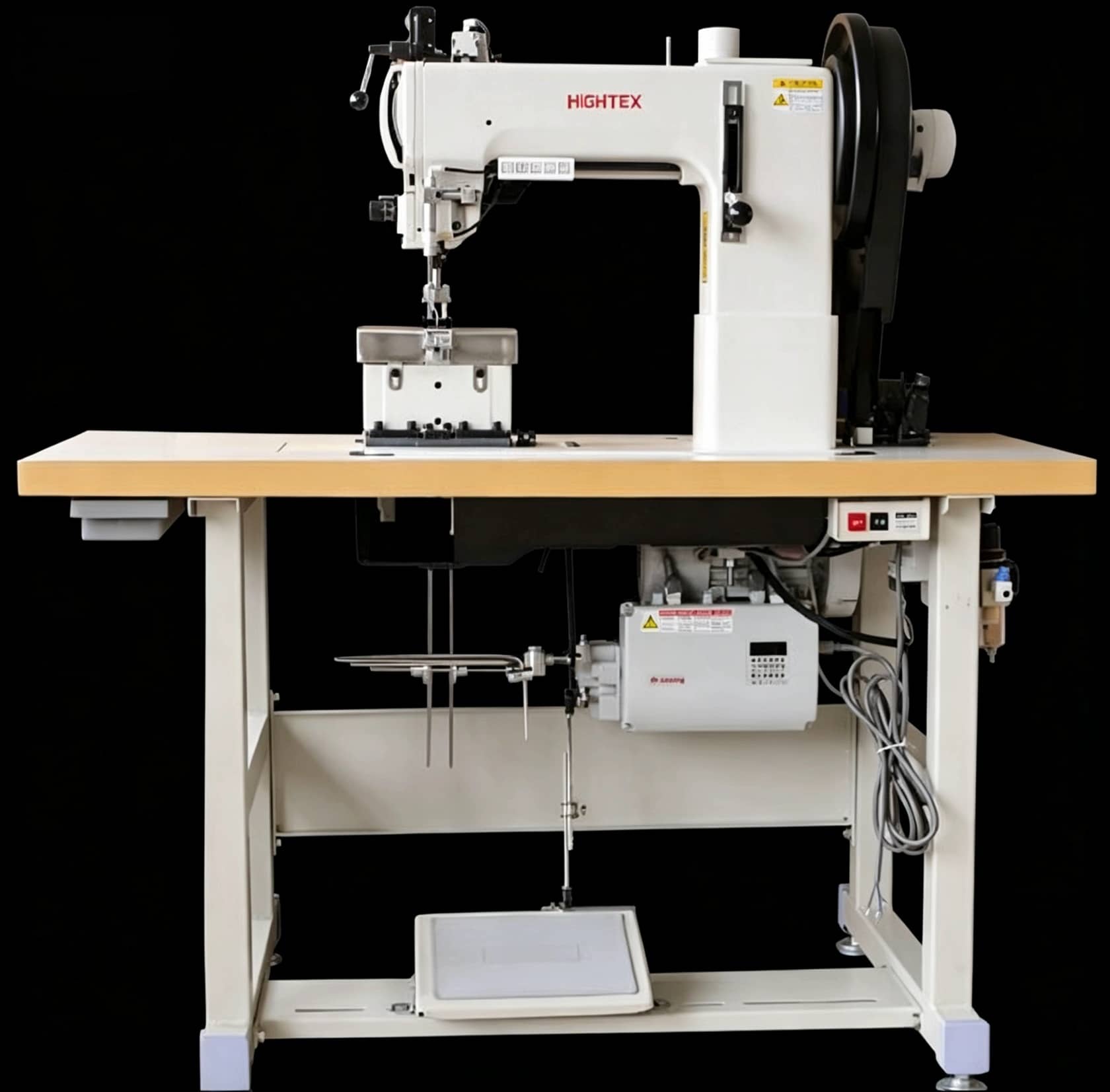

204-370-DP Heavy-Duty, Triple-Feed, Post-Bed, Double-Needle Upholstery Sewing Machine for Thick Thread Decorative Stitching

Click here for DEMO video

$12,500.00, plus shipping

Special order this machine by calling 330 692 1418. Customer service will be happy to help and provide you with an estimated lead time.

Call us at: 330 692 1418 for more information, or to order

Description +

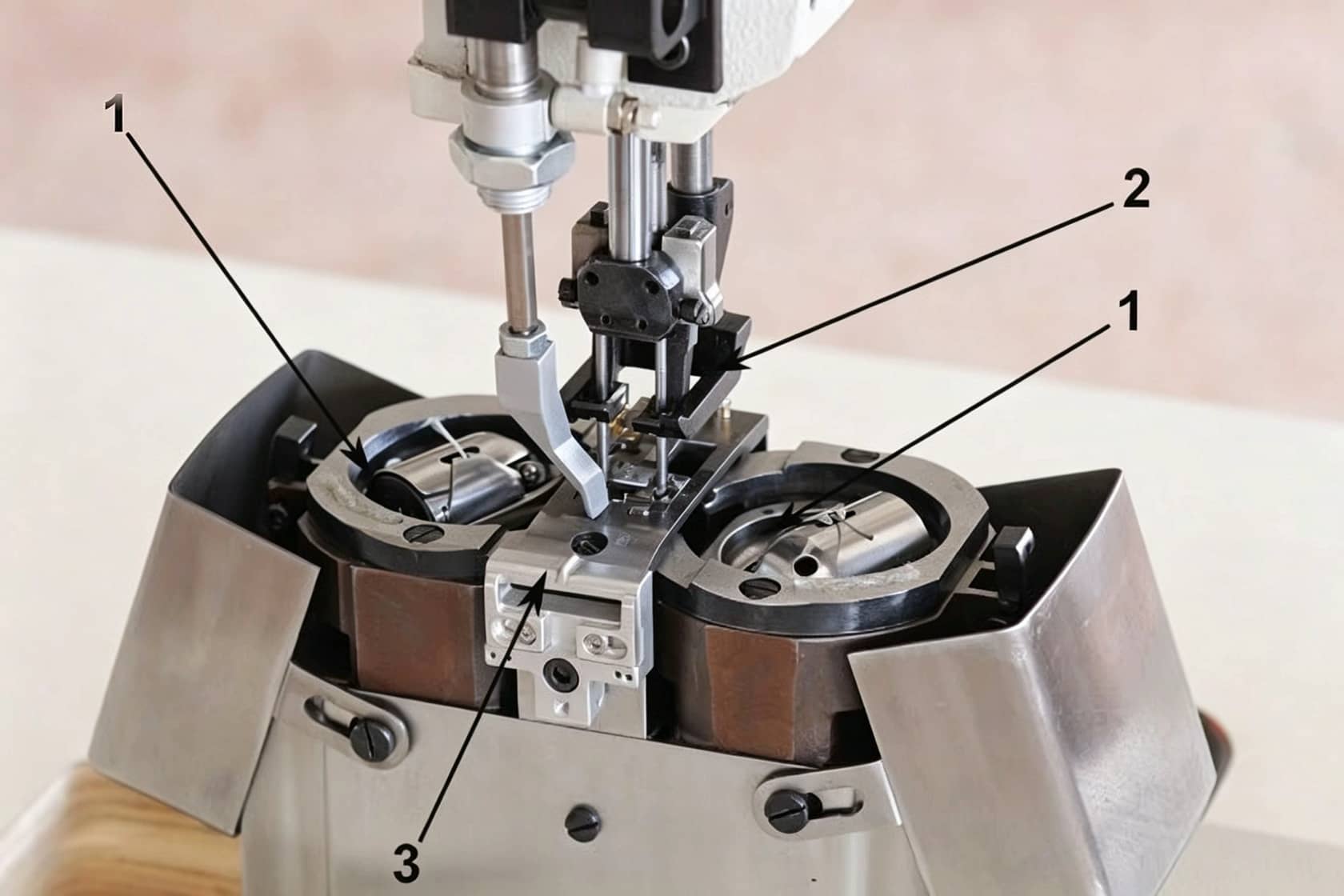

1. The Adler 204 type extra large Barrel shuttle has been specially designed for processing the extreme thick thread and heavy weight material;
2. Max. metric thread size 7, V415, T-400, 1300dx3 or Amann Serabraid Thread 1400 T60 braided thread can be use without any difficulty;
3. The post bed design gives you greater access and control when sewing decorative (top stitching) & functional stitching on shaped or 3d items;
4. Its heavy duty combined triple feeding action by way of: bottom feed, needle feed and walking foot top feed, guarantees constant stitch length;
5. High needle penetration power guarantee easy sewing thick spots or cross seams(over transversal seams), without skipped stitch;
6. The sewing foot stroke up to 10 mm allows the safe climbing over differently high material plies;
7. Up to 14 mm long stitches for decorative topstitching seams;
8.Standard sewing equipment:(1) Automatic presser foot lift; (2)Automatic back tacking; (3)Automatic needle UP/DOWN position; (4)Tape-reel bracket of front tape guide; (5)Pneumatic center seam guide; (6)Additional thread tension for cross seams; (7)Compensating presser foot; (8)Horizontal thread stand (for braided thread); (9) LED sewing light.

Specifications +

Max. Speed: 500 spm
Max. Stitch Length:14mm
Needle gauge sets:Standard 10mm (8mm, 12mm, 14mm as options)
Needle:794, DY x 3 (#24)
Max.Thread Sizes:8/3 (=V415, T-400) or 1mm Braided yarn
Maximum Foot Lift: 20mm
Height of post bed:140mm
Hook type: 204 Large Barrel Shuttle Hook
Feeding mechanism:triple feed
Presser foot alternating:10mm
Clearance room:320mm (L) x 340mm( H)
Packing size(assembly):1250x730x 1510 mm, G.W: 190KGS

Product Information +

This extra-heavy-duty, twin-needle, post-bed leather sewing machine is a consistent best-seller for topstitching leather sofas, couches, car seat covers, and similar upholstered furniture requiring thick thread decorative seams. The specialized post-bed design provides superior access and control when sewing decorative and functional stitches on shaped or 3D items, which are difficult or impossible to manage on a standard flatbed machine.Maximum metric thread sizes up to #7, V415, T-400, 1300dx3, or 1400 T60 braided thread can be used effortlessly. Its heavy-duty triple-feeding action—combining bottom feed, needle feed, and walking foot top feed—guarantees smooth handling of medium- to heavy-weight materials, leather, and fabrics. Additionally, a pneumatic climbing device ensures excellent stitch formation when sewing over thick spots or overlapping seams, delivering up to 14mm long stitches for both assembly and decorative seams.
