204-370 Heavy Duty Long Arm Sewing Machine for upholstery

204-370 Heavy Duty Long Arm Sewing Machine for upholstery thumbnail

Long Arm Upholstery Sewing Machine thumbnail

Low seed powerful sewing machine motor thumbnail

204-76-370 Heavy Duty Triple Feed Long Arm Upholstery Sewing Machine for Thick Thread Decorative Stitches on Leather Sofas & Couches

DEMO video for upholstery
DEMO video for leather

$8,360.00, plus shipping

Special order this machine by calling 330 692 1418. Customer service will be happy to help and provide you with an estimated lead time.

Call us at: 330 692 1418 for more information, or to order

Description +

High-quality, durable machinery is essential to maximizing production output and profit margins. When purchasing sewing equipment, prioritizing quality over price is a critical investment. Machine failure doesn’t just mean high repair costs—it results in costly downtime, lost orders, and damaged client relationships.

At HighTex, reliability is non-negotiable. Unlike alternative suppliers, our commitment to excellence begins long before the machine leaves our facility. Because we never compromise on quality, our equipment undergoes rigorous testing and preparation to ensure flawless performance.

Thank you for your patience; we are dedicated to building the perfect, reliable machine for your business.

1. This heavy duty industrial sewing machine arm has been extended to give 760mm clearance, which is very useful when sewing larger panel, for example: lounge sofa, car seat, marine upholstery etc.;
2. It is fitted with an extra large shuttle hook assembly (204 type) for use with heavy weight & extra heavy weight materials and extra thick threads;
3. Constant stitch lengths due to optimized triple feed mechanism, even in case of extremely thick materials;
4. Excellent stitch pattern and constantly tight stitches, even when sewing with extremely thick threads up to Nm 8/3 or 1.4mm braided thread;
5. The presser foot has an ultra high lift of up to 20mm, allowing for a large range of extra heavy weight material or bulky items to be used;
6. The sewing foot stroke up to 10 mm allows the safe climbing over differently high material plies;
7. Powered by a Kinedyne low-speed servo motor for precise speed control, it allows you to sew at a slow, consistent speed—ideal for both beginners and intricate artisan work;
8. Pneumatic sewing foot lift, pneumatic reverse stitch (back-stitch) and automatic needle UP/DOWN positioning as standard equipment;

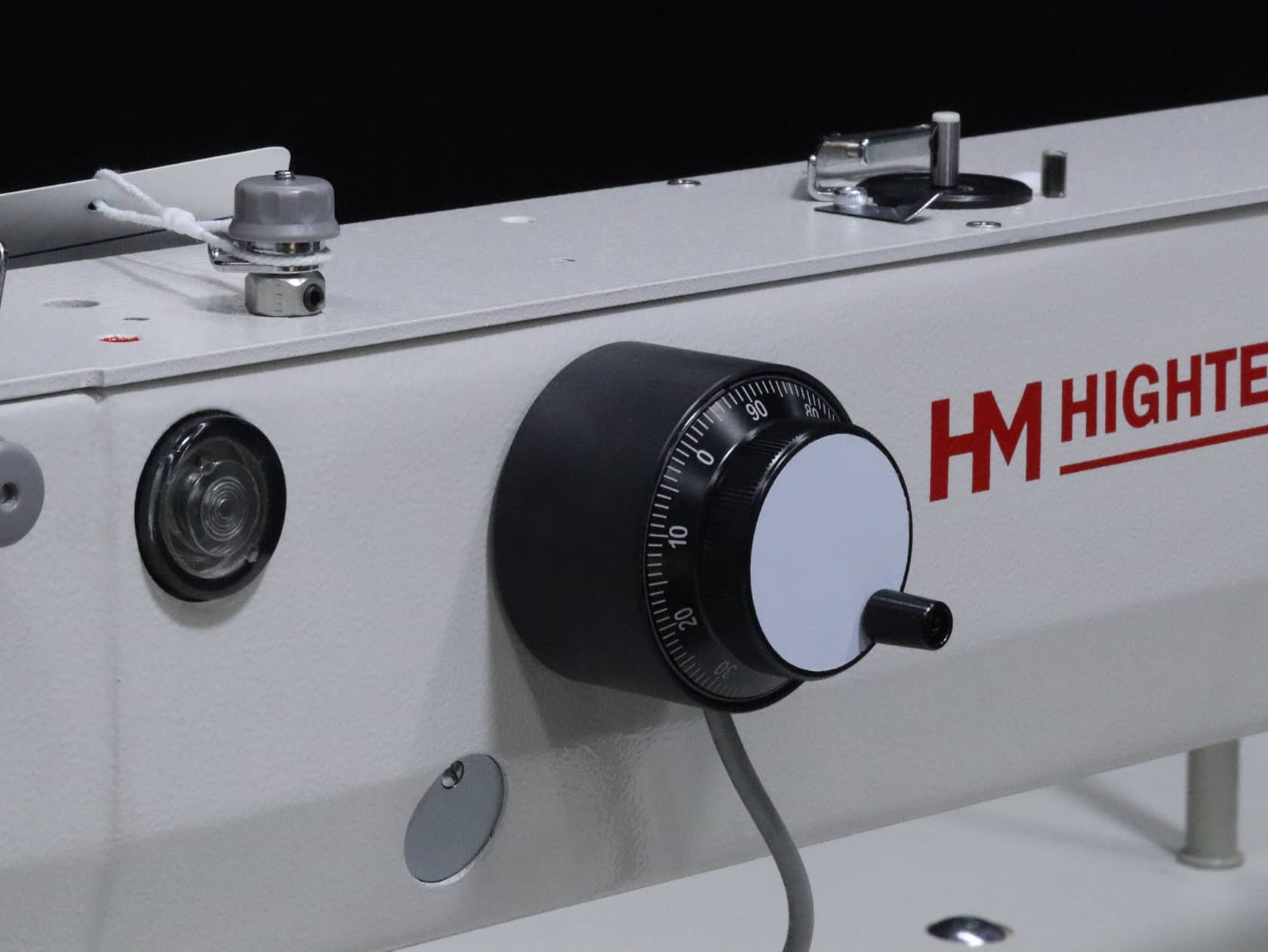

9. Simplify needle bar adjustments with a convenient electronical hand wheel(Jog-Dial);
10. This long arm industrial sewing machine with a cheaper price than others on the market offers average European quality standards.

Specifications +

Max. Speed:800 spm
Max. stitch Length:14mm
Needle:794, DY x 3 (#24)
Max.Thread Sizes:8/3 (=V415, T-400) or 1mm Braided yarn
Maximum Foot Lift: 20mm
Presser foot alternating:10
Hook type: 204 Large Barrel Shuttle Hook
Feeding mechanism:triple feed
Clearance room:760mm (L) x 185mm( H)
Packing size(Assembly):1630X750X1350MM, 360KGS

Product Information +

Built for professionals who demand a flawless aesthetic finish alongside the power and precision of German engineering, this machine excels at processing three-dimensional workpieces made of the heaviest materials. This heavy-duty industrial upholstery sewing machine features an extended arm providing 760mm of working clearance, making it highly efficient for managing large panels such as lounge sofas, car seats, and marine upholstery. Thanks to optimized sewing kinematics and a robust triple-feed system, this reliable machine delivers a consistently first-class stitch pattern, while its large barrel shuttle handles thick threads effortlessly. Additionally, the user-friendly design features a Kinedyne HM-1000SH servo motor, allowing for slow, controlled stitching that makes intricate, detailed work effortless.
