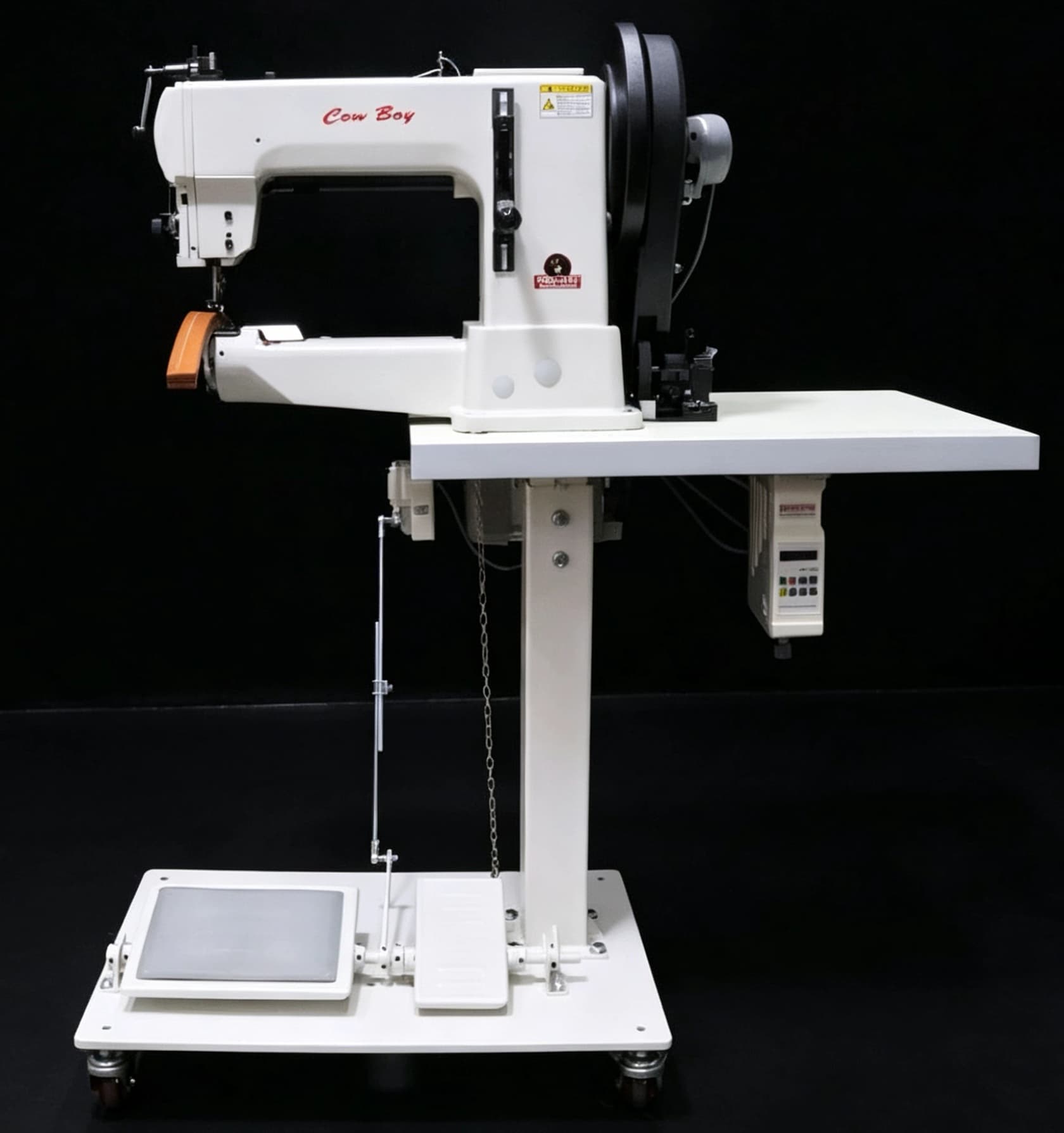

Cowboy 205-370 Premium Leather sewing machine thumbnail

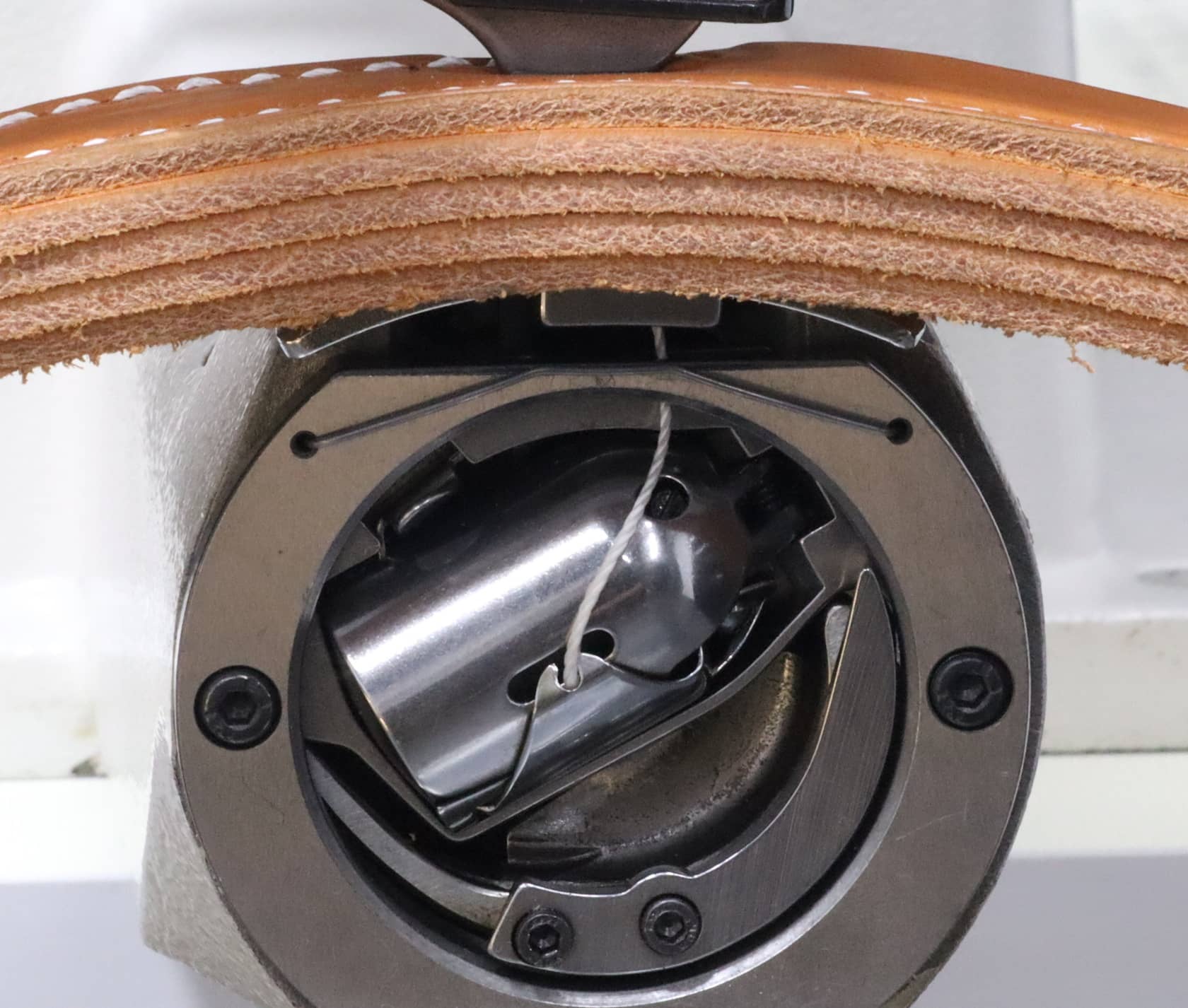

Shuttle hook thumbnail

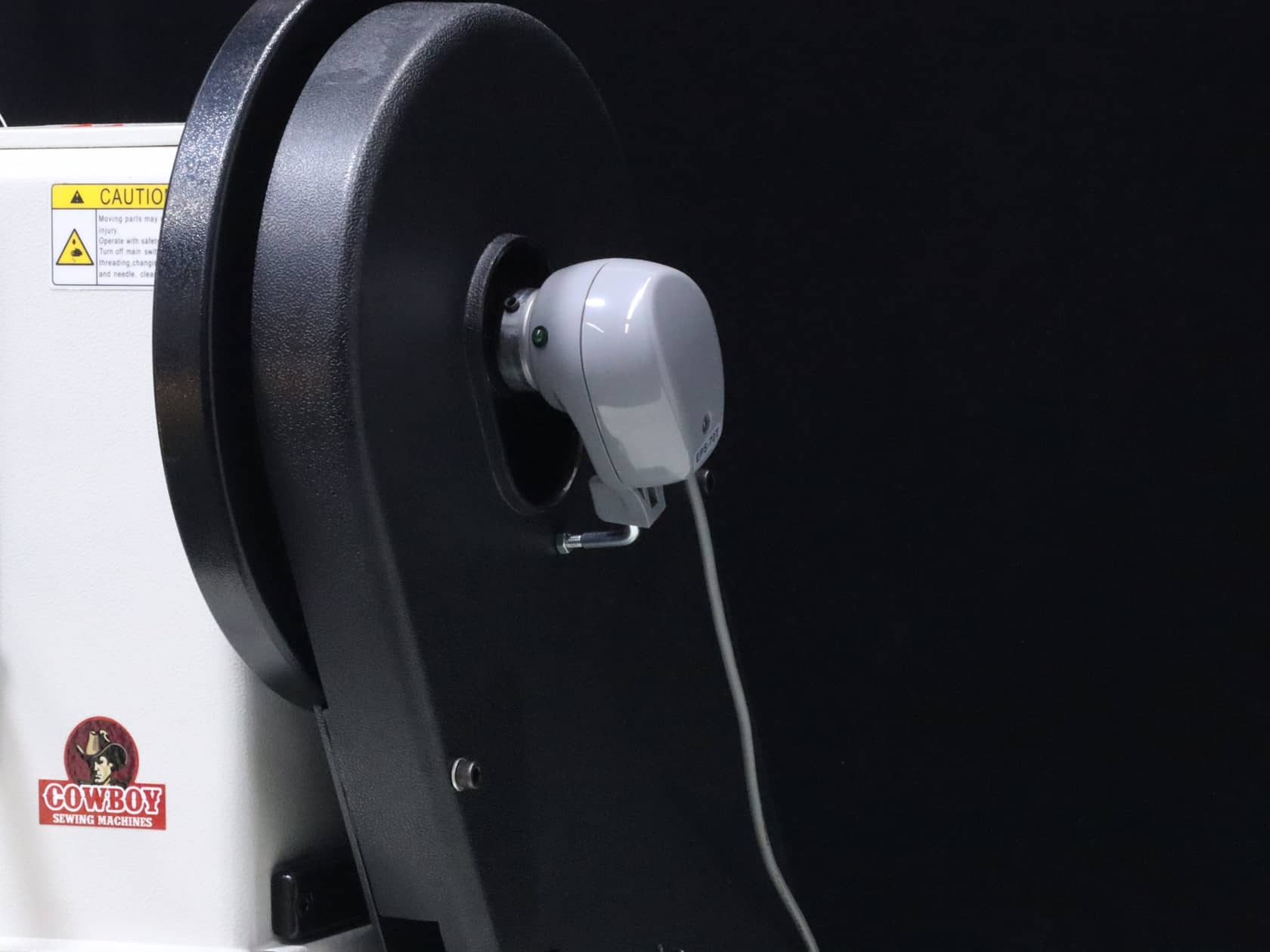

Needle positioning servo motor thumbnail
Durkopp Adler 205-370 industrial sewing machine thumbnail

Cowboy 205-370 Premium heavy-duty triple-feed industrial sewing machine for saddlery, leather upholstery, handbags, and webbing slings

Click here for DEMO video
$3,895.00, plus shipping
Special order this machine by calling 330 692 1418. Customer service will be happy to help and provide you with an estimated lead time.
Call us at: 330 692 1418 for more information, or to order
Description +

  • General Advantages:

  • 1. The 205 class walking foot sewing machine with large Barrel shuttle has been specially designed for processing the extreme thick thread and heavy weight materials;
  • 2. Due to the extremely sturdy design and powerful & effective triple feed system guarantees a trouble-free and displacement-free material feed when processing most different fabric thicknesses;
  • 3. The free-arm construction allows an unhindered material handling and guarantees high quality production of 3-dimensional material parts when making shoes, saddlery, technical textiles and upholstery;
  • 4. The extremely high sewing foot lift up to 20 mm facilitates the feeding and removing of bulky workpieces;
  • 5. Up to 14 mm long stitches for assembly and decorative seams;
  • Excellent climbing properties guarantee easy sewing thick spots or overlapping cross seams, without skipped stitch;
  • 7. A full array of special sewing attachments (Click here for detail) are available for high productivity and perfect seam quality.

  • Superior Maneuverability for Leatherwork:

  • In the realm of craftsmanship, where every stitch is a testament to quality and precision, the Cowboy 205-370 leather sewing machine delivers unparalleled maneuverability to ensure precise stitching.
  • 1. Using low speed, high torque extra powerful servo motor (Click here for detail) that allowing you to slow down your sewing machine and sew stitch by stitch (eliminates the need for a now obsolete, "Speed Reducer");
  • 2. The soft start/slow start function helps prevent issues with thread breakage or damage to the material at the beginning of the sewing process;
  • 3.The robust needle positioner offers exceptional precision that allows you to achieve perfect stitching alignment, improving overall sewing quality and efficiency;
  • 4.Jog-Dial (Optional): simplify needle bar adjustments with a convenient electronic hand wheel, if you need to sew particularly carefully with of accuracy;
  • 5. Speed Controller (Optional)): allow you to adjust sewing speed in a second, essential for sewing thick leather and fine or delicate fabrics;
  • 6. Half stitch (Optional): This micro-adjustment button allows you literally move at a half-stitch at a time if you need to sew particularly carefully with of accuracy, stitch length, angles and where it is needed.
Specifications +

Max Speed: 800 rpm
Max Stitch Length: 14mm
Needle: 7x3 or 794: #19-#27
Max.Thread Size: 8/3 (=V415, T-400) or 1.4mm Braided yarn
Bobbins: Outside Dia. 24mm, Height 30.5mm
Presser foot alternating: 10mm
Arm Length: 320mm
Maximum Foot Lift: 20mm
Max Sewn Thickness: 18mm
Reverses into same holes
750W/110V Slow speed high torque servo motor

Product Information +

Elevate your craftsmanship with a machine designed for professionals who refuse to compromise on aesthetics, power, or the legendary precision of German engineering. The class 205-370 architecture shows its true strength when navigating complex, three-dimensional workpieces made from the most demanding, heavy-weight materials. Offering an expandable 420mm flatbed for optimal clearance, this robust powerhouse utilizes synchronized triple-feed kinematics to guarantee an immaculate stitch pattern with every pass. Equipped with a high-capacity barrel shuttle for flawless thick-thread management and 100% parts compatibility with the Dürkopp Adler 205-370, it adapts seamlessly to your workflow. Combined with a Kinedyne HM-750SH servo motor for surgical, micro-controlled low-speed stitching, executing complex, detailed seams has never been more intuitive.

Contact us at +1 (330) 6921418 or Email: neelre@comcast.net
