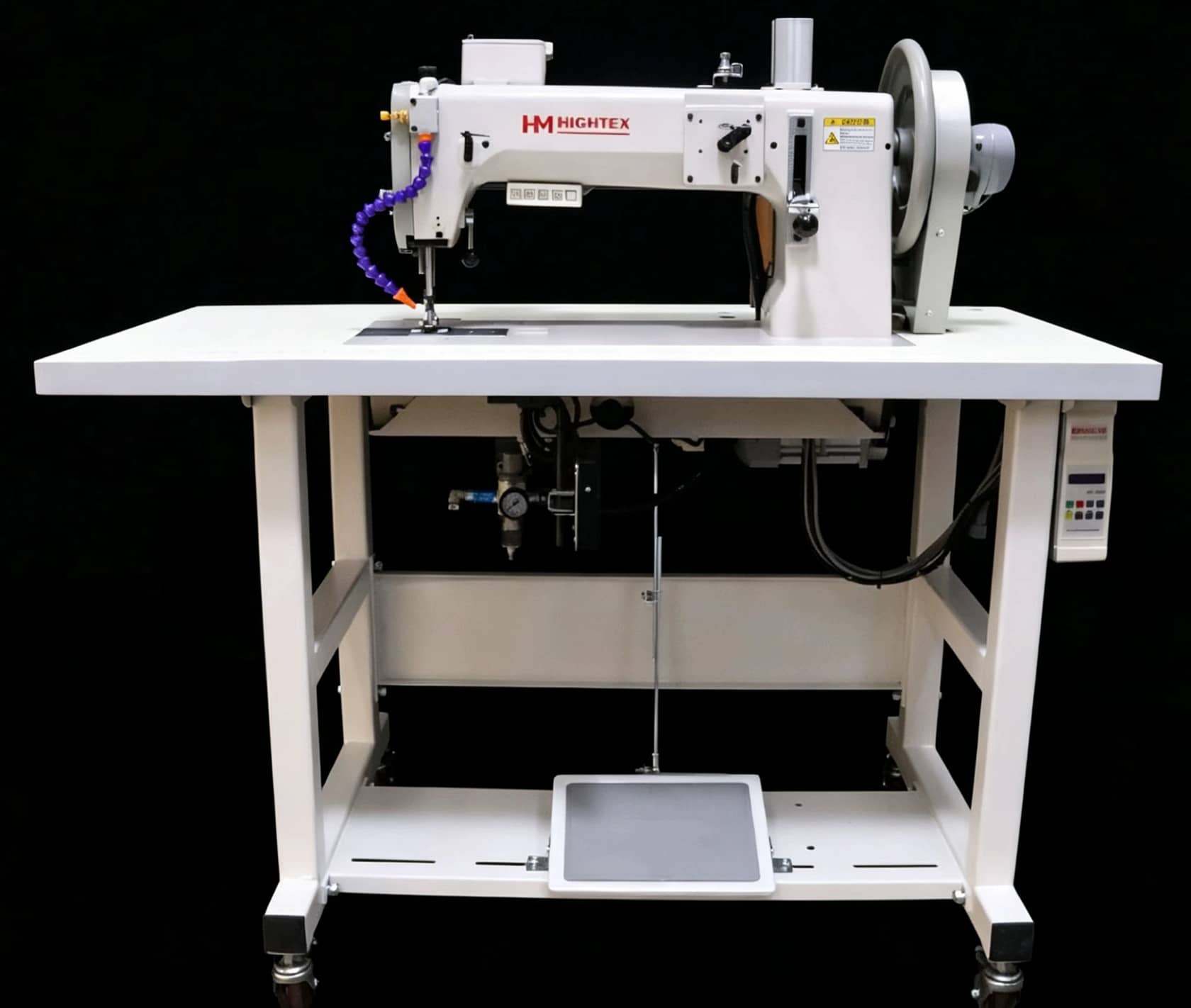

7243 Affordable heavy duty compound feed and walking foot sewing machine for webbing slings, safety harness, saddle, upholstery and leather goods

Video for sewing flat webbing slings
Video for sewing slings "Eye"/"Loop"

$3695.00 complete for base package. $4695.00 with pneumatic package.

Special order this machine by calling 330 692 1418. Customer service will be happy to help and provide you with an estimated lead time.

Call us at: 330 692 1418 for more information, or to order

Description +

1. Immense Mechanical Punching Power

Massive Thickness Capacity: The machine easily punches through up to 7/8 of an inch of hard-tempered saddle leather, Kydex, BioThane, or plywood-reinforced leather panels without motor hesitation. Furthermore, the substantial 22mm presser foot clearance makes it effortless to slide bulky, folded lifting sling "eyes" (loops) under the needle, even when they are wrapped in protective Cordura sleeves.
True Triple/Compound Feed: The triple-feed mechanism—where the needle, presser foot, and feed dog move the material simultaneously—prevents the layers from slipping and delivers constant, uniform stitches on finished leather goods. For webbing sling manufacturers, this ensures the bottom ply aligns perfectly with the top ply at the end of a long seam, maximizing the ultimate load capacity of your lifting slings.

2. Flatbed Stability & Arm Space (Optimized for Large Assemblies)

Generous Workspace Under the Arm: Featuring a standard throat space of approximately 420mm × 190mm, the clearance room under the machine arm provides plenty of area to rotate, manipulate, and pass through semi-shaped leather goods (like heavy tool pouches or saddle components) without them jamming against the machine column.
Stable Flatbed Foundation: The large flatbed surface provides solid structural support for massive, heavy leather goods. It prevents heavy materials from hanging down and dragging on the needle, ensuring perfectly straight stitch lines on long straps, reins, and gun belts.

3. Built for Heavy Aesthetics and Cord Thread

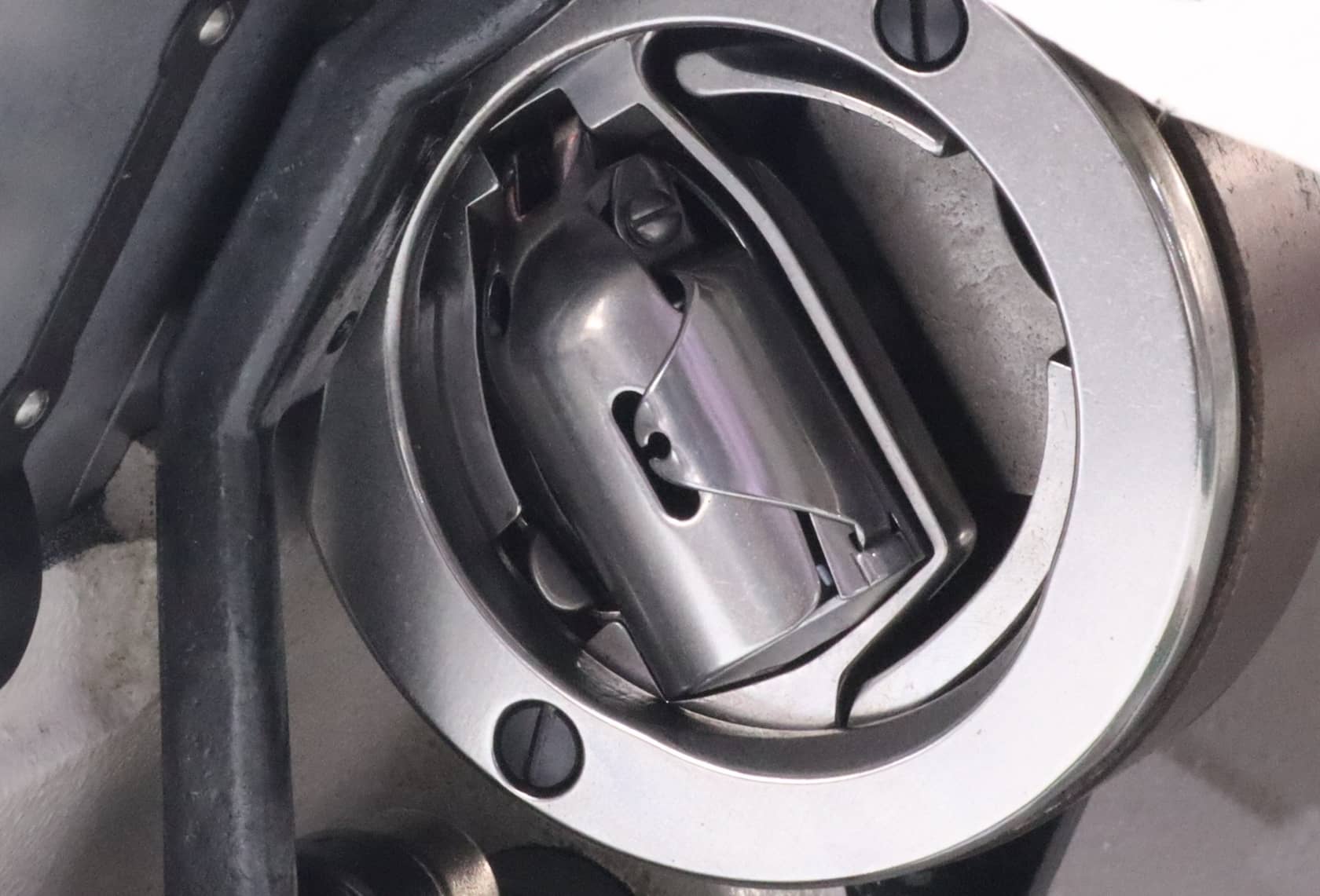

Large Barrel Shuttle Hook: Utilizes a specialized extra-large Adler 204/Juki 243 style shuttle hook. It holds large volumes of exceptionally thick structural thread—up to #415 bonded nylon/polyester or 1.4mm decorative braided threads—maintaining impeccable bottom tension.
Fewer Bobbin Interruptions: The high-capacity barrel bobbin holds vastly more thick cord than standard industrial hooks. This minimizes machine downtime spent stopping production to wind and swap out bobbin thread.
Long Stitch Length: It can produce bold, visually striking stitches up to 11 mm in length, which is a highly sought-after aesthetic for premium western saddlery, holsters, and luxury leathercraft.

4. Interchangeable Parts & Elite Value

Harness Presser Feet Availability: It shares parts and accessories with popular cylinder arm models like the Cowboy CB4500. You can swap to ultra-narrow harness feet, letting you stitch extremely close to raised leather borders or heavy hardware buckles.

Unbeatable Value Proposition: It delivers identical mechanical performance, build quality, and structural rigidity to legacy standard machines like the Juki TNU-243 or Dürkopp Adler 204-370, but at roughly 1/4 of the capital cost. This makes it the ideal budget-friendly anchor machine for expanding workshops.

5. Optional Pneumatic Package

The addition of air-assisted foot lift and reverse stitching transforms the 7243 from a high-effort manual machine into a highly efficient, ergonomic production workhorse. For industrial operators handling heavy leather or thick synthetic webbing, these pneumatic upgrades provide a massive competitive advantage.

Specifications +

Max. Speed:800 spm
Max. stitch Length:14mm
Needle:794, DY x 3 (#24)
Max.Thread Sizes:8/3 (=V415, T-400) or 1mm Braided yarn
Maximum Foot Lift: 23mm
Hook type: 204 Large Barrel Shuttle Hook
Feeding mechanism:triple feed
Clearance room:420mm (L) x 190mm( H)
Packing size(head):790x450x570 MM, 70KGS

Product Information +

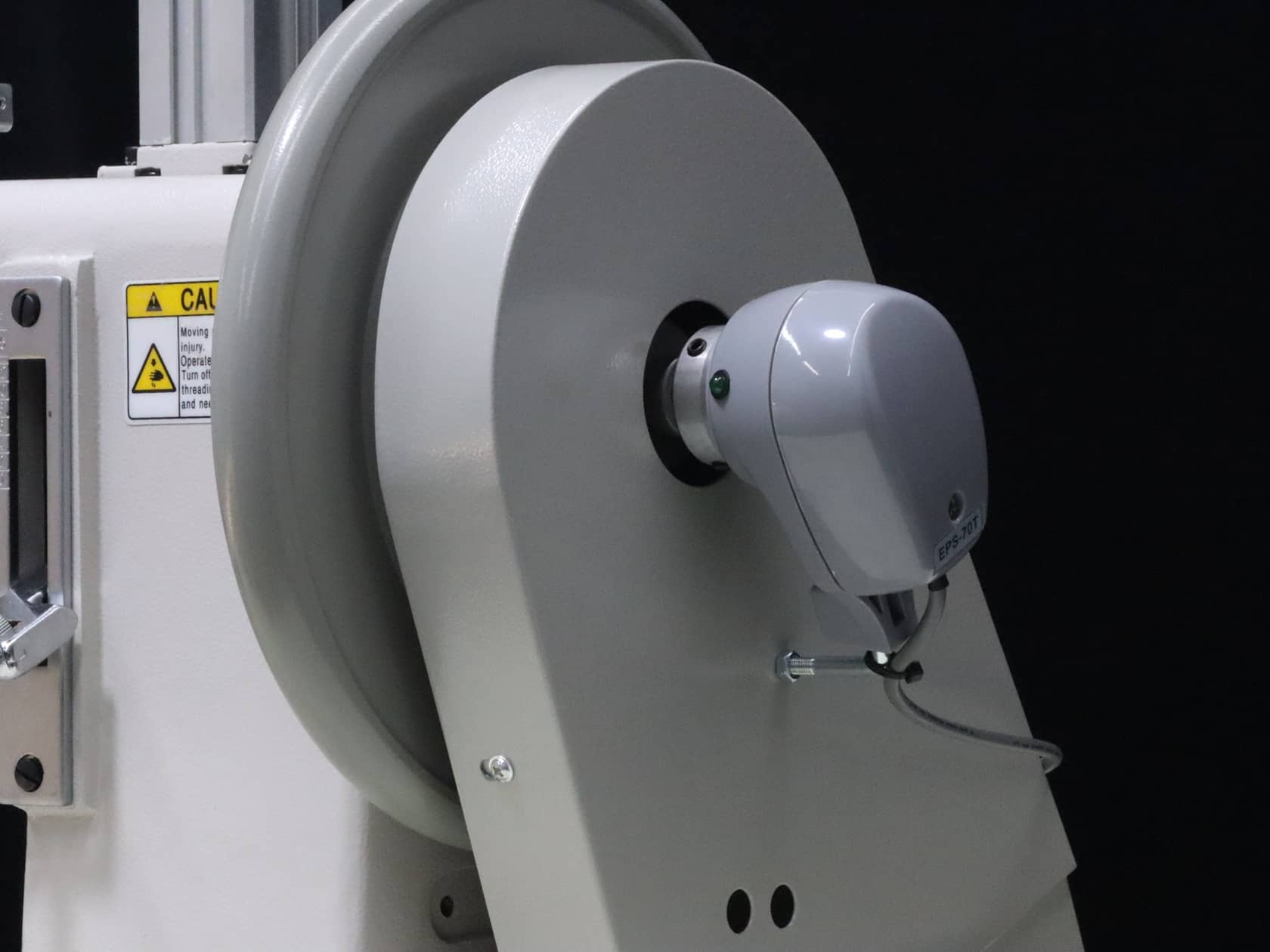

Looking for a heavy-duty industrial sewing machine that fits your budget? The HighTex 7243 delivers the exact same performance as premium models like the JUKI TNU-243 and Durkopp Adler 204-370, but at roughly one-quarter of the cost. Highly regarded as one of the most reliable, extra-heavy-duty machines in its class, it perfectly bridges the gap between high-end industrial strength and affordability. Consequently, it is widely utilized for manufacturing heavy-duty webbing lifting slings, safety harness, saddles, harnesses, leather sofas, and tactical military gear. Additionally, the powerful Kinedyne HM-1000EX high torque servo motor provides precise speed control, making detailed, slow-pace stitching effortless.
