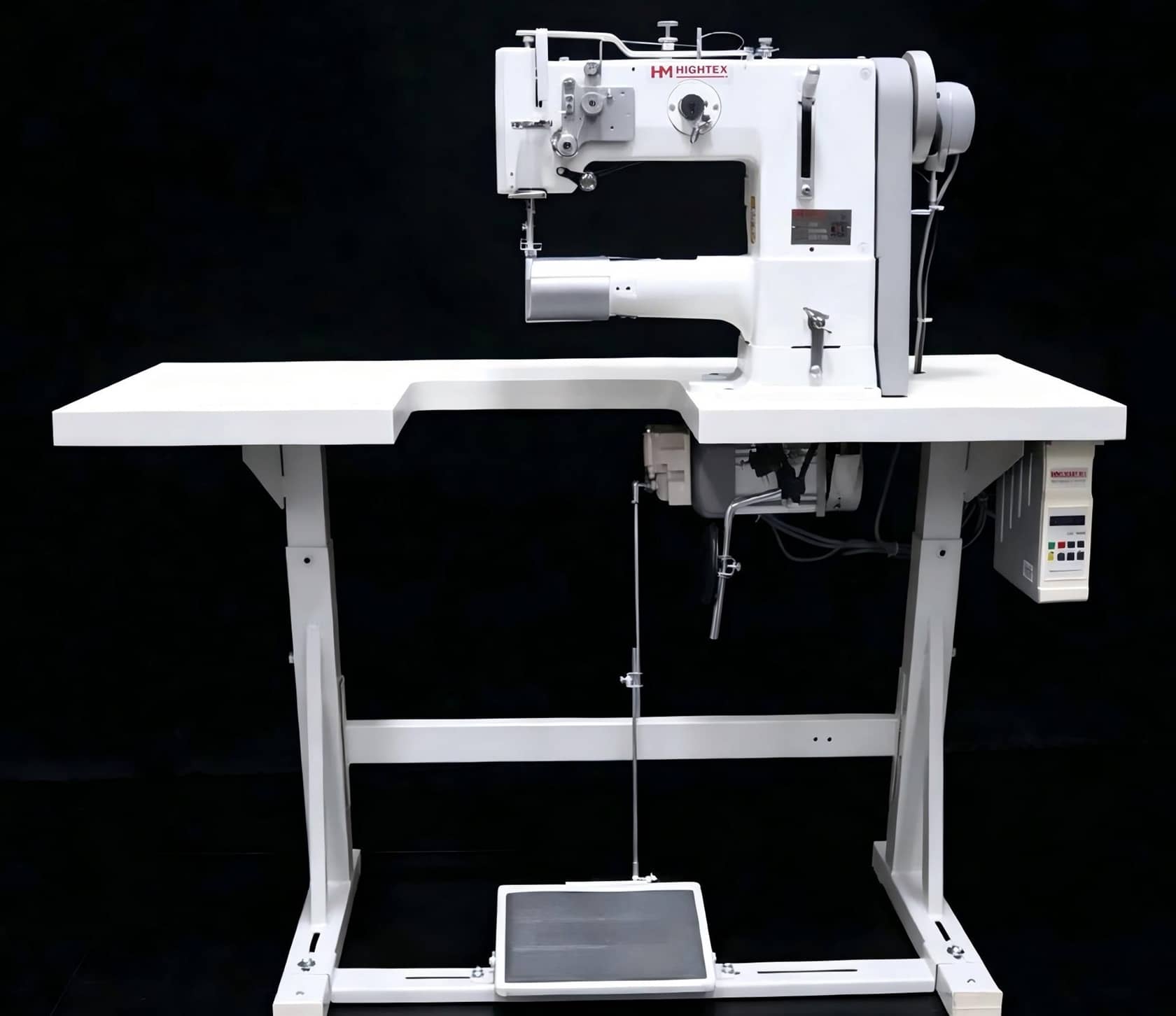

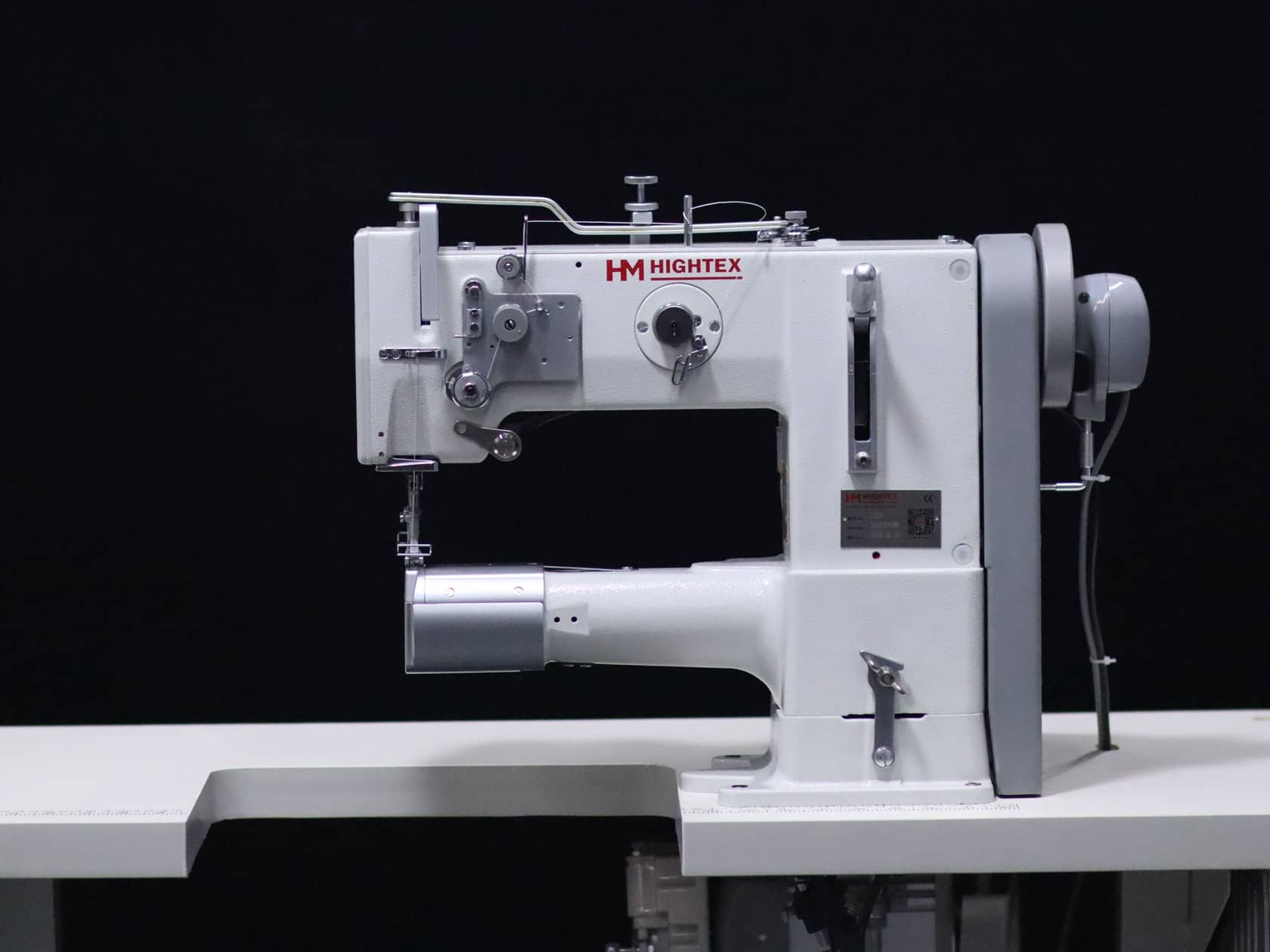

7269 Industrial Cylinder Arm Leather Sewing Machine – Built with Genuine Adler Parts

Click here for DEMO video

$2,850.00, plus shipping

Special order this machine by calling 330 692 1418. Customer service will be happy to help and provide you with an estimated lead time.

Call us at: 330 692 1418 for more information, or to order

Description +

1.Superior 3-Dimension Feeding Mechanism: The 7269 features a high-performance triple (unison) feed system (synchronized needle feed, bottom feed dog, and alternating walking feet).
2.Full-Motion Feed Dogs: Unlike thinner cylinder arm machines (like the Adler 69 or Pfaff 335), which often feature feed dogs that only move back and forth, the 7269's slightly thicker arm accommodates a full-motion mechanism where the feed dogs move both back-and-forth and up-and-down. This provides unmatched grip and smooth material transport on highly slick, sticky, or uneven leather layers
3.Large Vertical-Axis Hook System: Most standard cylinder arm machines feature a horizontal-axis hook (where the bobbin case drops in from the top or front facing you). The Adler 269 features a large vertical-axis hook assembly.This layout allows the thread to loop off the bobbin with less twisting, delivering world-class stitch quality and highly consistent tension.It also accommodates a larger vertical-axis bobbin, which significantly reduces down-time when sewing long runs of heavy bonded threads (like #138 nylon).
4.Built-In Mechanical Safety Clutch: To protect its highly precise internal gears, the 269 is equipped with a mechanical safety clutch. If you hit a hidden metal hardware piece, jam a needle, or experience a severe bird-nest thread jam, the clutch instantly disengages the hook drive. This stops the machine from knocking itself out of timing, turning what would be a costly technician repair on other machines into a simple push-button reset.
5.Extreme Climbing & Crossing Seam Capacity: The 7269 features an alternating foot stroke that can be adjusted up to 10mm in height. This massive stroke height allows the presser feet to effortlessly climb over thick cross-seams, webbed straps, and intersecting layers of foam or plastic backing without stalling, shifting, or shortening the stitch length.
6. Legendary Build Quality & Resale Value: Machines explicitly manufactured under rigorous HighTex standards feature metallurgical casting and part tolerances that resist heat expansion and wear over decades of heavy production. Because of this reputation for absolute durability, vintage and modern 7269 units retain exceptionally high resale values on the secondhand leather craft market.

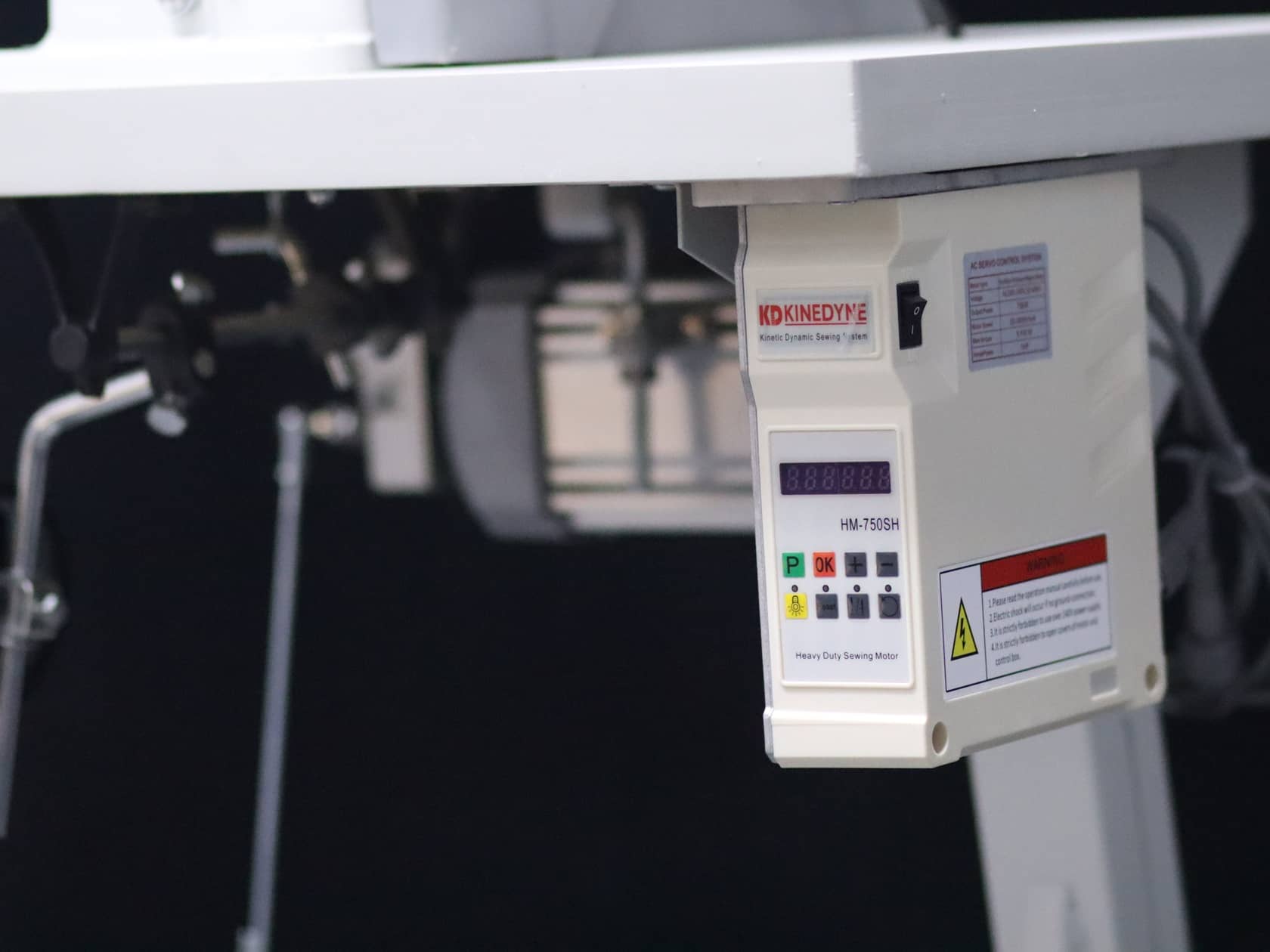

7. Precision Speed Control: Usually paired with a Kinedyne low-speed, high-torque servo motor, the system allows millimeter-by-millimeter stitch control. This ultra-slow, consistent pace is crucial for beginners or experts executing highly intricate artisan topstitching.

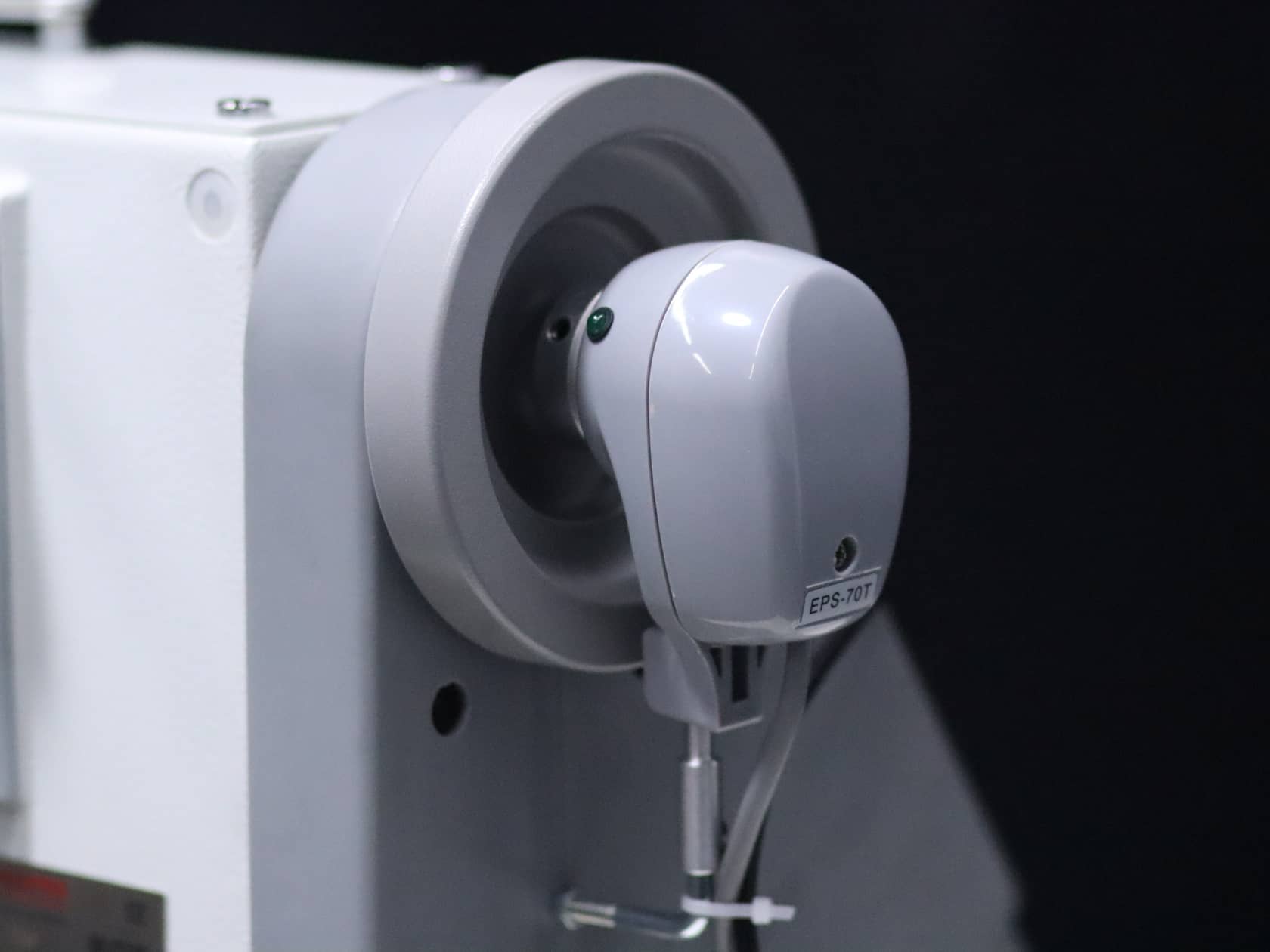

8. Precision needle positioner synchronizer: The robust needle positioner offers exceptional precision that allows you to achieve perfect stitching alignment, improving overall sewing quality and efficiency.

Specifications +

Max. Speed: 1700 rpm
Max. Stitch Length: 6mm
Needle:134-35 Size#110-140
Max.Thread Sizes:10/3
Maximum Foot Lift: 10mm
Presser foot alternating: 5mm
Max Sewn Thickness: 8mm
Arm length:260mm
Motor: 750W/110-120 Volt
Packing size(Head):765x280x670MM, 45KGS

Product Information +

The Dürkopp Adler 269 (specifically the popular 269-373 variant) is a legendary, German-engineered, medium-to-heavy-duty cylinder bed industrial sewing machine. Renowned in the luxury leather, upholstery, and technical textile industries, it represents the pinnacle of structural precision and mechanical longevity. While machines like the Cowboy CB6900 or CB341 are excellent multi-purpose clones for bag-making, the Adler 269 occupies a premium market segment due to its distinct engineering advantages. For those seeking an alternative, the HighTex 7269 is manufactured entirely using genuine Dürkopp Adler parts. While ensuring top-tier quality, this machine offers an incredibly familiar and intuitive setup for manufacturers who already operate Dürkopp Adler leather sewing machines.
