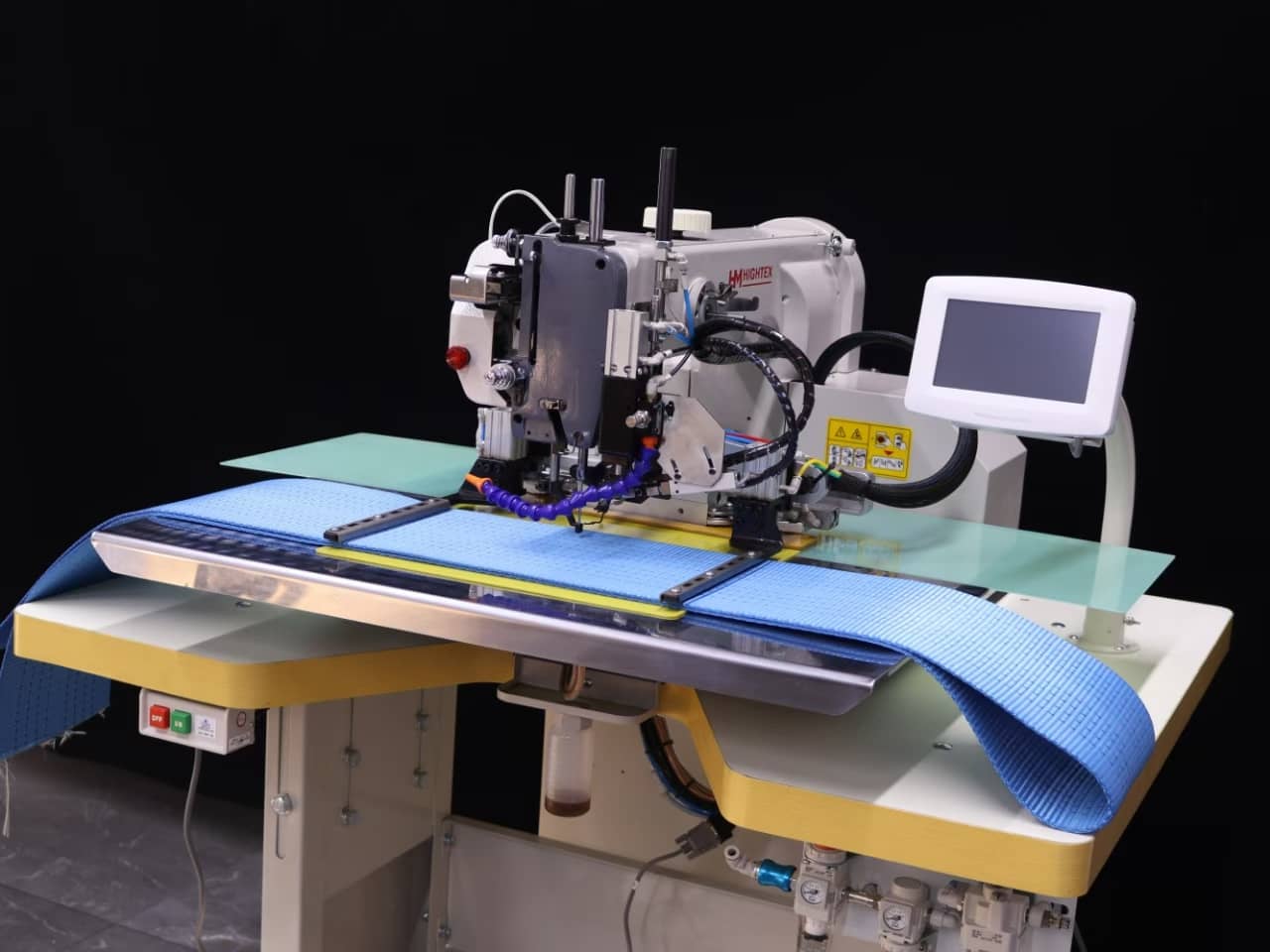

7273CNC Heavy duty pattern sewing machine

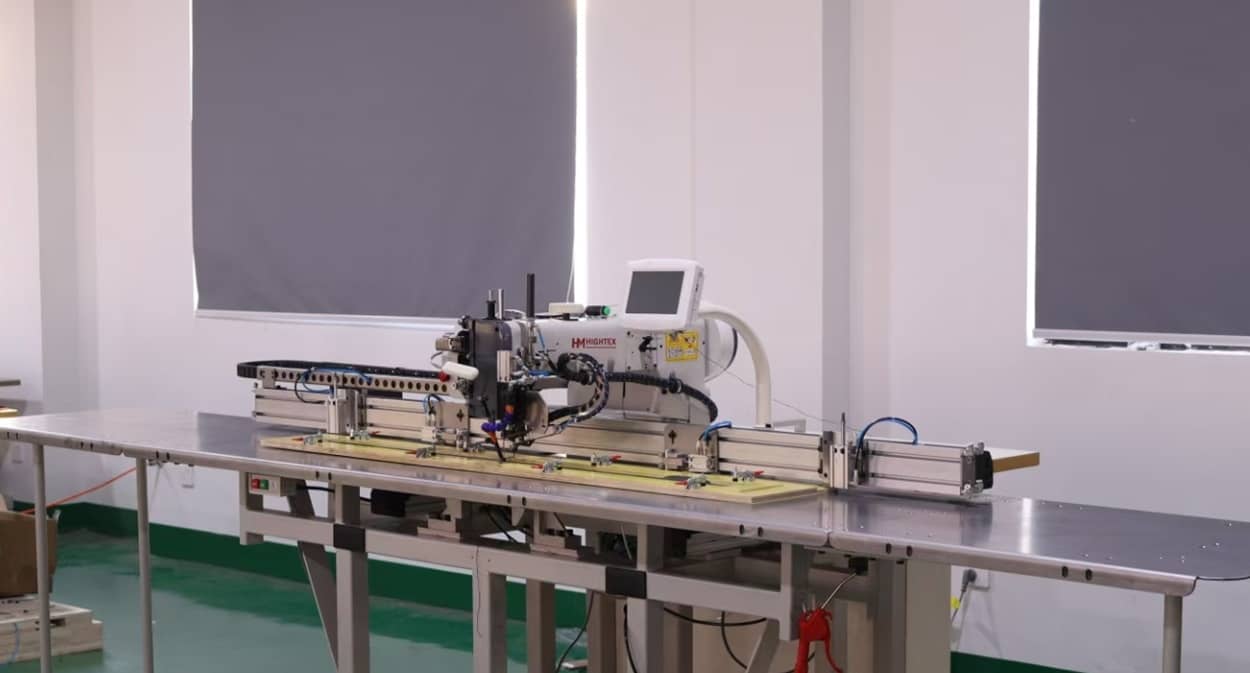

7273CNC Heavy duty automatic webbing sewing machine

7273CNC Heavy duty bar backing machine thumbnail

7273CNC Heavy duty pattern sewing machine thumbnail

7273CNC Heavy duty automatic webbing sewing machine thumbnail

Automatic webbing sling sewing machine thumbnail

7273CNC Heavy Duty Electronic Programmable Pattern Sewing Machine with Automatic Heat Thread Cutter for Webbing Lifting Slings, Cargo Lashing Straps and Safety Harness

Click here for DEMO video

$19,950.00, plus shipping

Special order this machine by calling 330 692 1418. Customer service will be happy to help and provide you with an estimated lead time.

Call us at: 330 692 1418 for more information, or to order

Description +

The large Barrel shuttle hook that has been specially designed for sewing very heavy materials and thick thread;
The special large bobbin capacity reduces the number of bobbin changes and offer high efficiency in sewing products using extra thick thread up to metric size 7* (=V415, T-400, 1300dx3);
The burning type automatic thread trimmer (heat cutter) is special designed for cutthing very thick Polyester sewing thread and Nylon sewing thread (without fringing);
The high-rigid feeding system (double shafts) provides pinpoint accuracy and beautiful stitches;
Excellent stitch pattern and constantly tight stitch formation due to its advanced pneumatic system, strong needle penetration force and custom made fixture;
Newbie friendly pattern making system, it is always a challenge for beginner to create new sewing pattern (design, program), we've got the perfect line-up of easy and beginner-friendly sewing patterns to allow a stress-free, and fun introduction to sewing;
Each machine supplies with comprehensive spare parts package that allow you to service, maintain and repair the machine for long time without the need to buy spare parts;
Over 20 years of combined experience in servicing and repairing, there is no problem that we cannot solve by email or video conference, that will insure your machine can be serviced with minimal downtime.

Specifications +

Max. Speed: 800 rpm
Max. sewing Area: 300x200mm
Max. Stitch Length: 12.7MM
Needle: 794 (DYx3) #26
Max.Thread Sizes:Metric #7, V415, T-400, 1300dx3
Bobbins: 7/8" x 1" large capacity
Maximum Foot Lift: 25mm
Max Sewn Thickness: 20mm
Pattern Input:Touch screen
Max. QTY of Patterns:2000 patterns
Air pressure: 0.6 MPa
Motor: 1000W/200-240 Volt
Packing size: 1300*1220*1450mm, G.W: 300KGS

Product Information +

Engineered to master heavy-weight webbing and extra-thick threads, the 7273CNC features a spacious 300 x 200 mm sewing area. To ensure clean finishes on industrial-grade threads, it comes equipped with a specialized upper and lower hot-knife thread burning system. An extra-large rotary hook drastically extends runtime between bobbin changes, maximizing floor productivity.This advanced sewing automation significantly enhances seam consistency, reduces cycle times, and minimizes manual labor. In fact, a single operator can comfortably manage two automated units simultaneously, paving the way for substantial labor savings. For unparalleled versatility, its quick-change clamping system allows teams to easily transition between manufacturing webbing lifting slings, cargo lashing straps, safety harnesses, and fall protection equipment. The 7273CNC serves as an excellent, high-performance replacement for the legendary MITSUBISHI PLK-G2008H heavy-duty pattern sewing machine.
