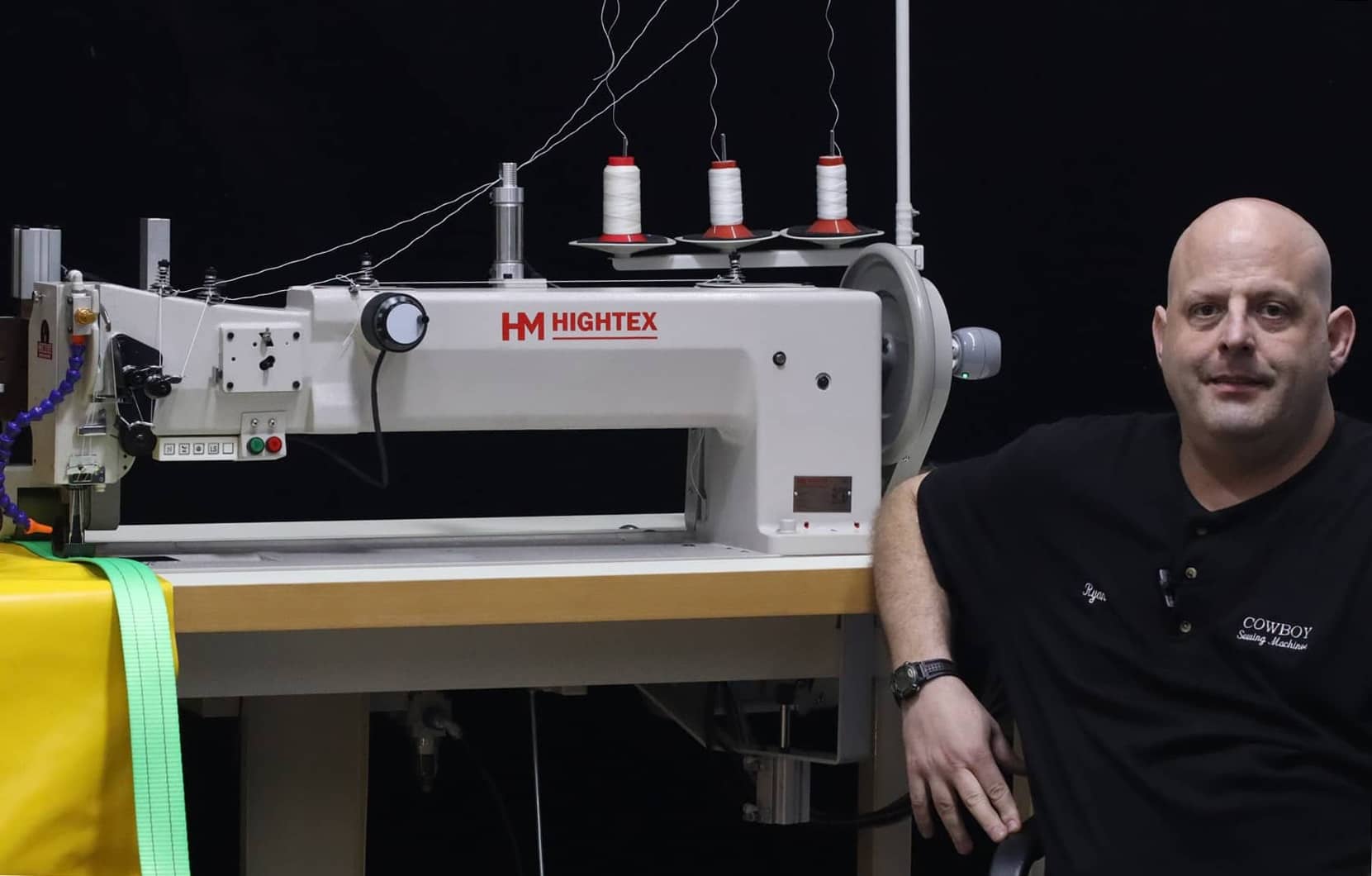

728-30 Extra Heavy Duty Double Needle Compound Walking Foot 30" Long Arm Sewing Machine for Tents and Upholstery

Click here for DEMO video

$12,360.00, plus shipping

Special order this machine by calling 330 692 1418. Customer service will be happy to help and provide you with an estimated lead time.

Call us at: 330 692 1418 for more information, or to order

Description +

High-quality, durable machinery is essential to maximizing production output and profit margins. When purchasing sewing equipment, prioritizing quality over price is a critical investment. Machine failure doesn’t just mean high repair costs—it results in costly downtime, lost orders, and damaged client relationships.

At HighTex, reliability is non-negotiable. Unlike alternative suppliers, our commitment to excellence begins long before the machine leaves our facility. Because we never compromise on quality, our equipment undergoes rigorous testing and preparation to ensure flawless performance. Thank you for your patience; we are dedicated to building the perfect, reliable machine for your business.

The long arm flat bed allows up-to 760mm* (30") clearance to the right of the needle, which is approximately Three times the length of a standard sewing machine arm, and has a high under arm clearance of 145mm;
It features a triple feeding action by way of: bottom feed, needle feed & walking foot top feed and is fitted with 2x extra large vertical axis hooks for use with very thick sewing threads (for both decorative stitches and safety seams);
Is fitted with two extra large vertically mounted hook & bases (6 times bigger compare to regular industrial sewing machine) for sewing with very thick thread up to Nm 10/3;
High needle penetration power guarantee easy sewing thick spots or cross seams(over transversal seams), without skipped stitch, loose bottom thread, shorten stitch length;
The sewing foot stroke up to 9 mm allows the safe climbing over differently high material plies;
A safety clutch is fitted to help prevent damage to the hook, bevel gears and other important parts, should the machine become jammed or over-loaded;
Very user-friendly due to the Kinedyne HM-1000SH low speed servo motor that allows slow, controlled stitching, it makes sewing detailed work much easier;
Up to 10 mm long stitches for decorative topstitching seams.

Specifications +

Max. Speed: 1200 spm
Max. Stitch Length:10mm
Needle:794, DY x 3 (#24)
Max.Thread Sizes:Upper #8 - #0, lower #8
Maximum Foot Lift: 23mm
Hook type: Extra large Vertical Axis Hook
Presser foot alternating:9mm
Max Sewn Thickness: 20mm
Clearance room:762mm (L) x 145mm( H)
Packing size(Assembly):1830x800x1330MM, 285KGS

Product Information +

This long-arm, compound-feed (walking foot) sewing machine is a proven bestseller for manufacturing tents, tarpaulins, parachutes, geotextile tubes, upholstered furniture, and similar heavy-duty products. Highly rated within its class, it boasts a massive global following, particularly in the United States, Australia, and South Africa.Key advantages include an expansive under-arm working space designed for managing bulky materials, an advanced triple-feed (unison feed) system, and an extra-large rotary hook with six times the standard bobbin capacity for seamless thick-thread stitching. For manufacturers already utilizing the Consew 745R-30, Seiko JW-28BL-30, or JUKI LG-158, this machine offers 100% parts interchangeability, ensuring a seamless transition and hassle-free maintenance. A single-needle version (718-30) is also available. To maximize operator control, it comes equipped with the Kinedyne HM-1000SH low-speed servo motor, enabling slow, micro-controlled stitching that makes complex, detailed work effortless.
