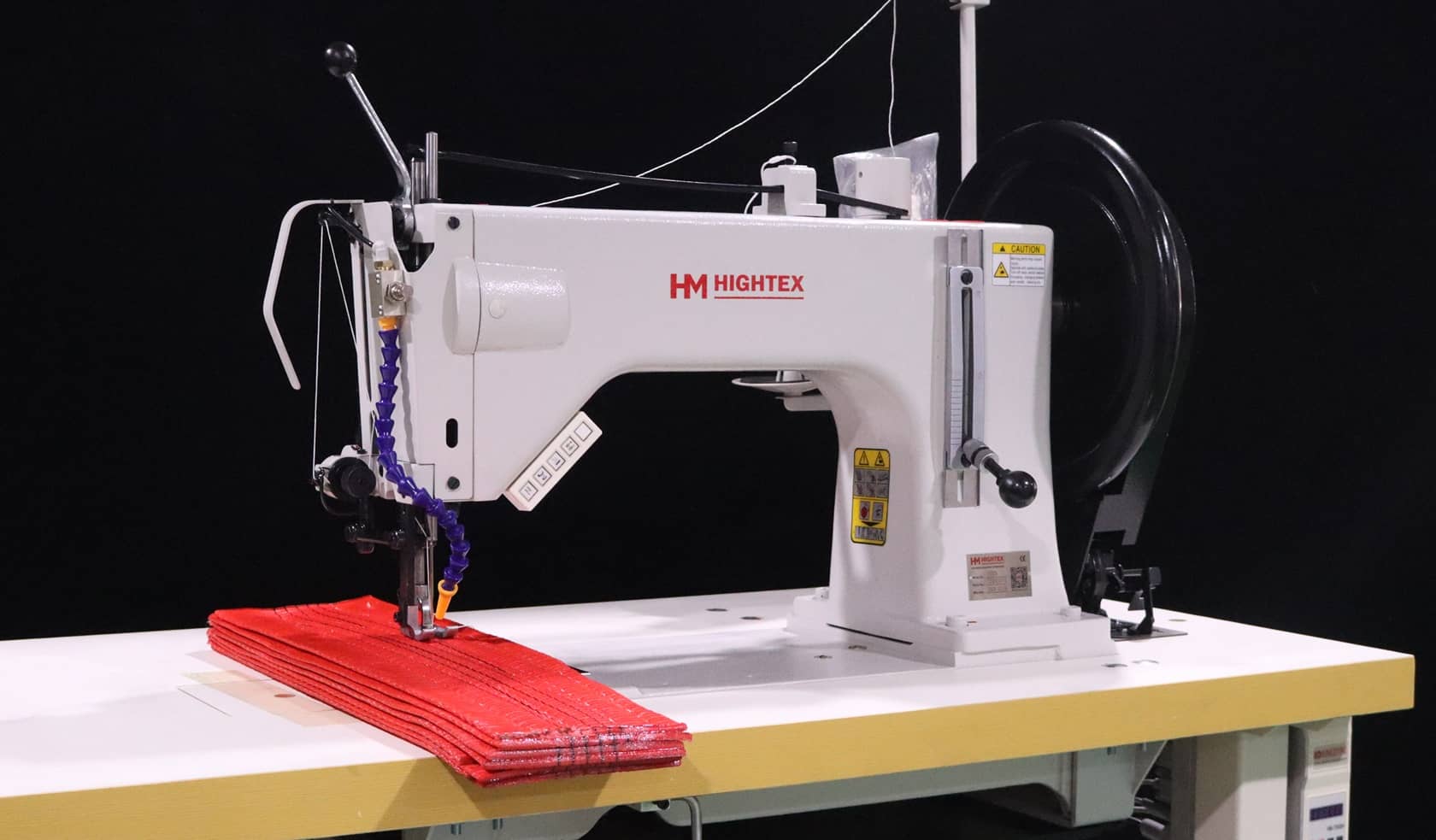

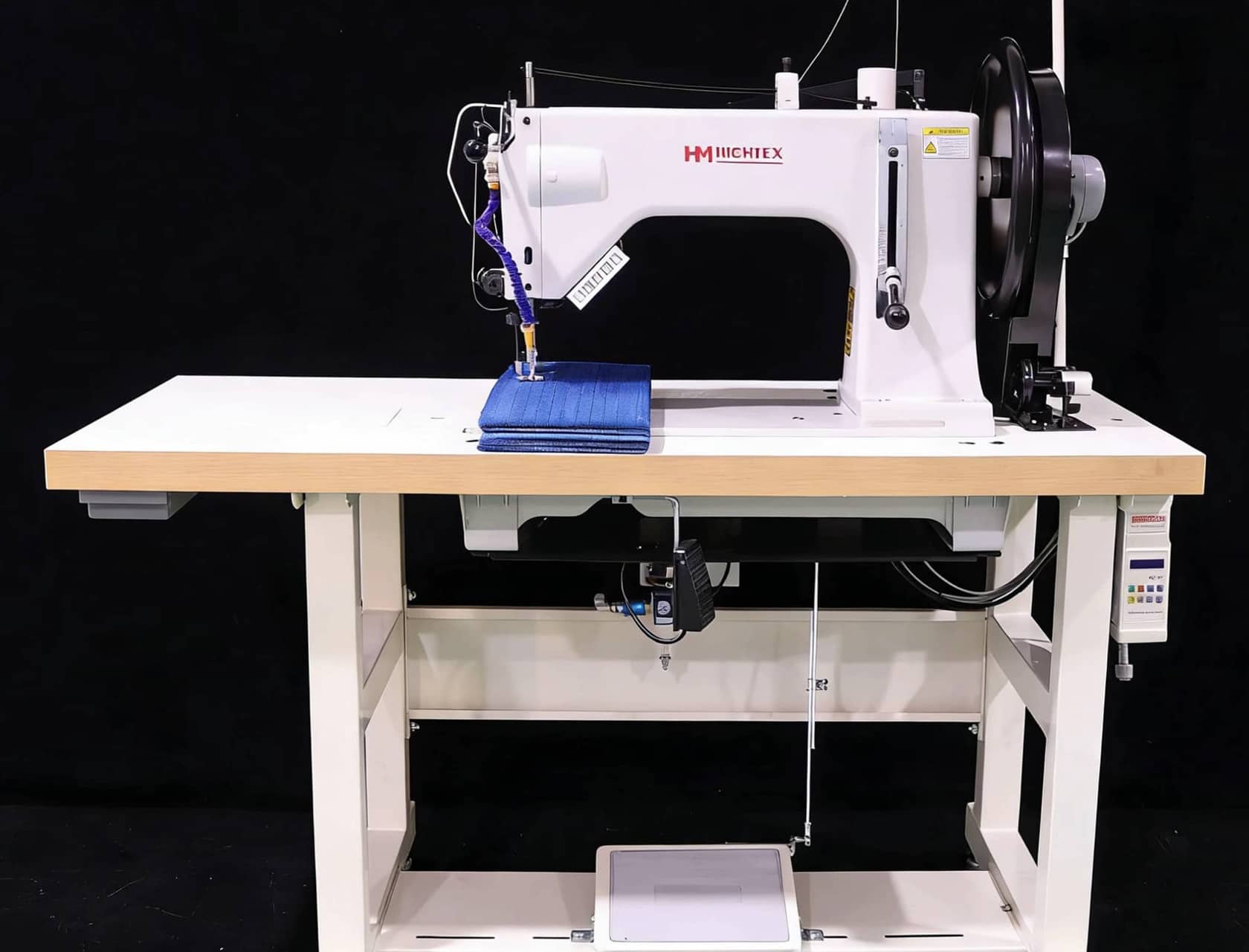

733 Extra Heavy Duty Walking Foot Sewing Machine - The quality and performance far better than other 7 class sewing machines

Click here for DEMO video

$5,650.00, plus shipping

Special order this machine by calling 330 692 1418. Customer service will be happy to help and provide you with an estimated lead time.

Call us at: 330 692 1418 for more information, or to order

Description +

Equipped with XL Large Oscillating Shuttle Hook, this model in the HighTex range is one of the most heavy-duty industrial sewing machines in production today;

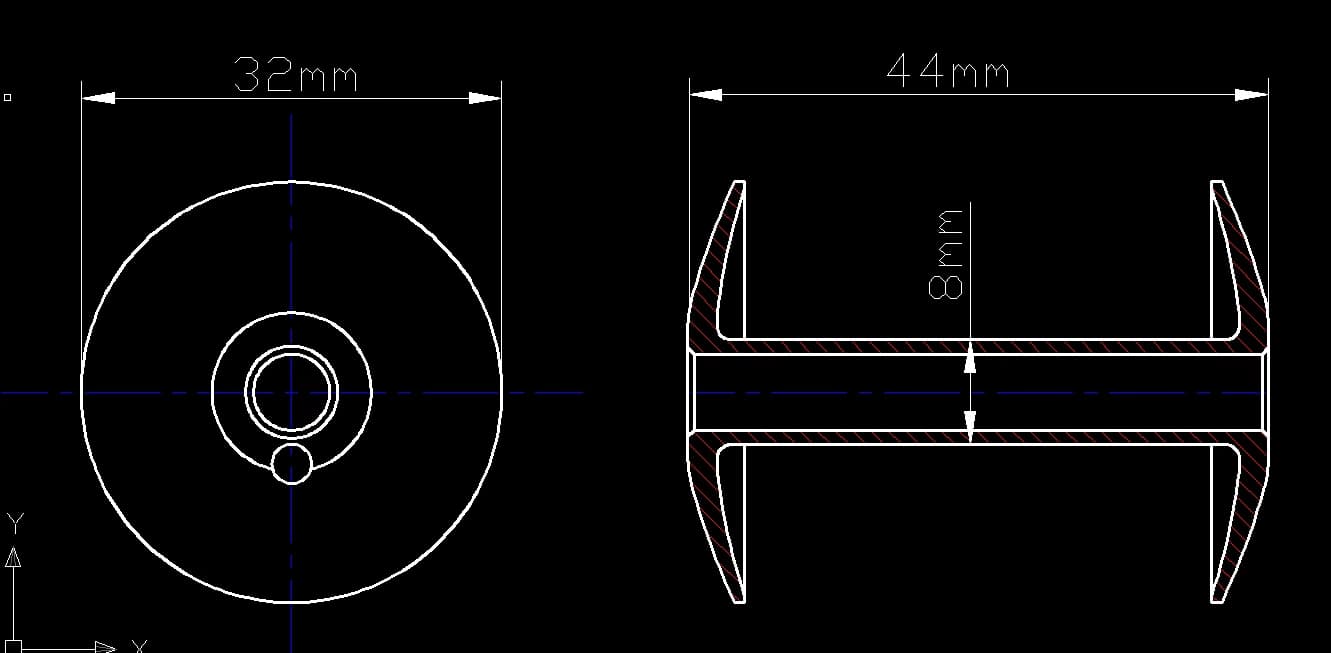

The extra large bobbin capacity offers high efficiency in sewing production when using extra thick thread up to 1500dx3 and 2000dX3 (=Metric size #4=V693=T-700);
The presser foot has an ultra-high lift of up to 32mm/38mm, allowing for stitching 9 ply heavy duty webbing slings (29mm) and a large range of extra heavy weight material or bulky items to be used;
The walking foot action is driven and combines with the powerful bottom feed to produce a positive feeding motion for extra heavy use;
Equipped with Kinedyne HM-1000SH effortless and precise speed control servo motor, making sewing smoother and more manageable than ever. Saves 60-80% electricity consumption;
Standard supplied with needle positioner that automatically stops the needle in the Down and Up position, good for improving efficiency;
Standard supplied with pneumatic presser foot lift and pneumatic reverse stitch, your productivity may increase substantially;
The dual tensioning bolt of shuttle hook prevents loss of bobbin thread tension mid-stitching;
The shuttle bed of other China made 733 class sewing machine is made by Ductile iron, which is prone to wear and tear. It is more frustrating that fabric or thread may get contaminated by ductile iron filings mixed excess oil. The HighTex 733 shuttle bed is made by High Carbon Steel, the super hard finish allow the parts to last up to 3 times longer than normal, and completely eliminate the problem of thread contamination;
The large Barrel Shuttle Hook has been given a alloy coating that allow the parts to last up to 3 times longer than normal, and the smooth finish significantly reduce the noise of machine;
All 733CS sewing machines will be completely assembled, tested, and serviced, ready to operate out of the box.

Specifications +

Max. Speed: 700 rpm
Max. Stitch Length: 15mm (standard), 20mm (Model 733EX)
Needle:Schmetz 1000H (#300/#29)
Max.Thread Sizes:Metric size #4,V693, T-700, 2000d X3
Maximum Foot Lift: 32mm (1 1/4")(Custom 38mm)
Max Sewn Thickness: 35mm
Clearance room:420mm (length) x 255mm( High)
Air pressure: 0.6 MPa
Motor: 1000W/110-120 Volt
Packing size:1500X770X1450MM, 240KGS

Product Information +

As a flagship model in the HighTex range, this machine stands as one of the heaviest-duty industrial sewing machines in production today. It is a proven bestseller for specialists manufacturing 6-to-8-ply webbing slings, military parachute harnesses, safety harnesses, and premium saddles. Globally recognized and highly rated, it boasts a massive international following.The machine features an impressive presser foot lift of up to 32mm/36mm and an extraordinary maximum stitch length of 15mm/20mm. A synchronized walking foot and drop-feed mechanism guarantee flawlessly uniform stitching, supported by an extra-large shuttle hook and high-capacity bobbin. Engineered as the modern successor to the legendary Consew 733R-5, Seiko SLH-2B, Adler 120, and Singer 7-class extra heavy-duty machines, it offers unmatched durability—featuring what is arguably the finest shuttle bed and shuttle hook system in the world. To ensure ultimate control, it comes equipped with the Kinedyne HM-1000SH servo motor, delivering effortless, precise speed control for a smoother, more manageable sewing experience.
