733PLC Heaviest Programmable Pattern Sewing Machine

733PLC military spec Nylon webbing sewing machine

733PLC Heaviest Programmable Pattern Sewing Machine thumbnail

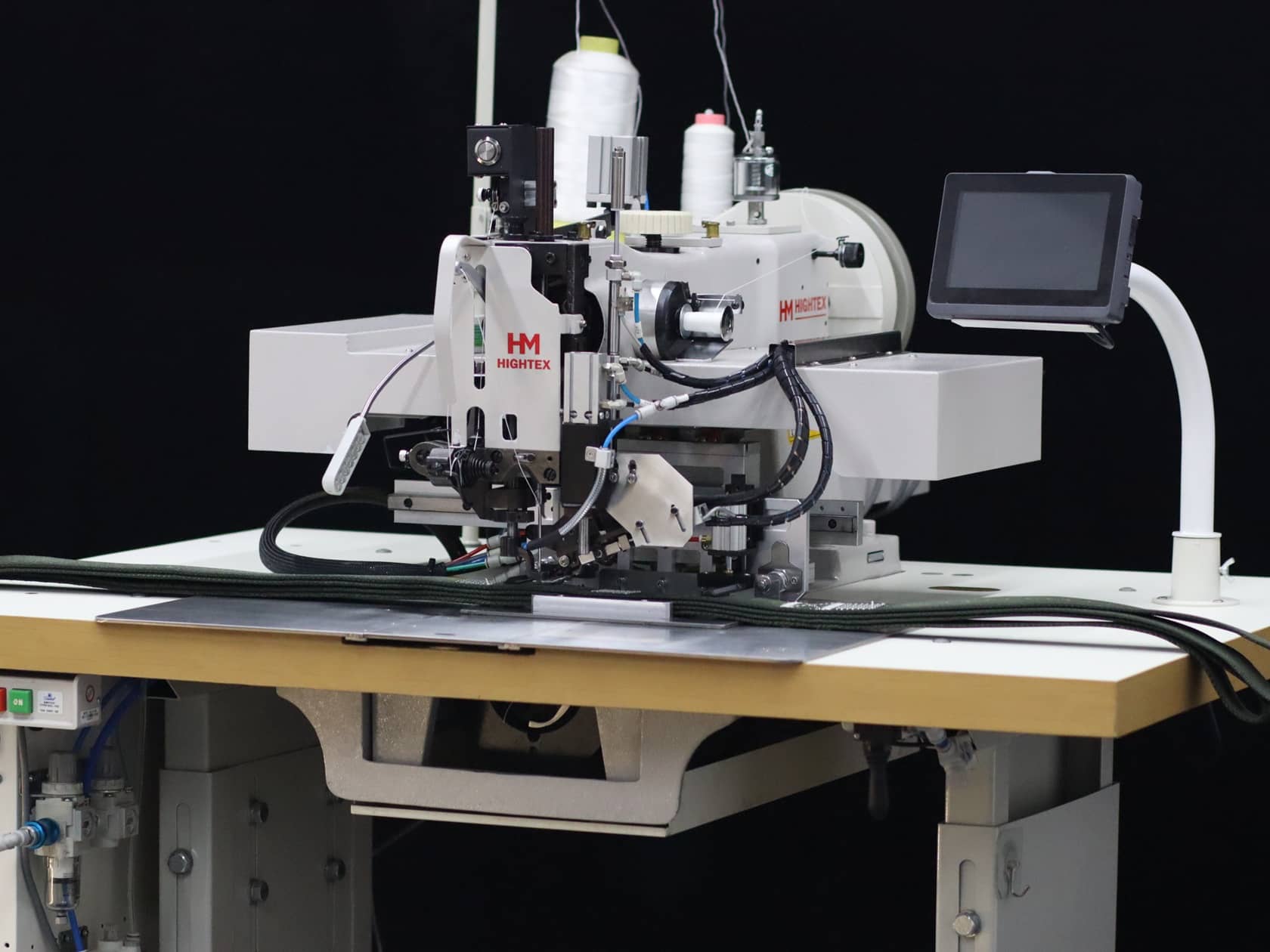

733PLC parachute harness sewing machine thumbnail

733PLC military spec Nylon webbing sewing machine thumbnail

733PLC Heaviest Programmable Pattern Sewing Machine for Extremely Heavy Materials & Thick Threads

Click here for DEMO video

$26,950.00, plus shipping

Special order this machine by calling 330 692 1418. Customer service will be happy to help and provide you with an estimated lead time.

Call us at: 330 692 1418 for more information, or to order

Description +

High-quality, durable machinery is essential to maximizing production output and profit margins. When purchasing sewing equipment, prioritizing quality over price is a critical investment. Machine failure doesn’t just mean high repair costs—it results in costly downtime, lost orders, and damaged client relationships. At HighTex, reliability is non-negotiable. Unlike alternative suppliers, our commitment to excellence begins long before the machine leaves our facility.

For automatic equipment, we dedicate several weeks to assembling each machine, ensuring every detail is flawless. Following assembly, we spend one to two weeks pre-programming and rigorously testing the equipment using your specific thread and fabric samples. This eliminate setup hassles, ensuring your machine is ready for immediate operation upon arrival.

Because we refuse to cut corners on quality, our automated sewing equipment takes time to prepare. We appreciate your patience as we build the perfect machine for your business.

Equipped with XL Large Oscillating Shuttle Hook, this model in the HighTex range is one of the most heavy-duty industrial sewing machines in production today;
The extra large bobbin capacity offers high efficiency in sewing production when using extra thick thread up to V554 (Tex 600 / Govt. 8-Cord);
Its automatic lower and upper hot knife thread trimmer is designed to handle extra thick thread, and thread fraying is prevented by thread heat cutter (The thread trimmer is unable to work when the thickness of material over 20mm);

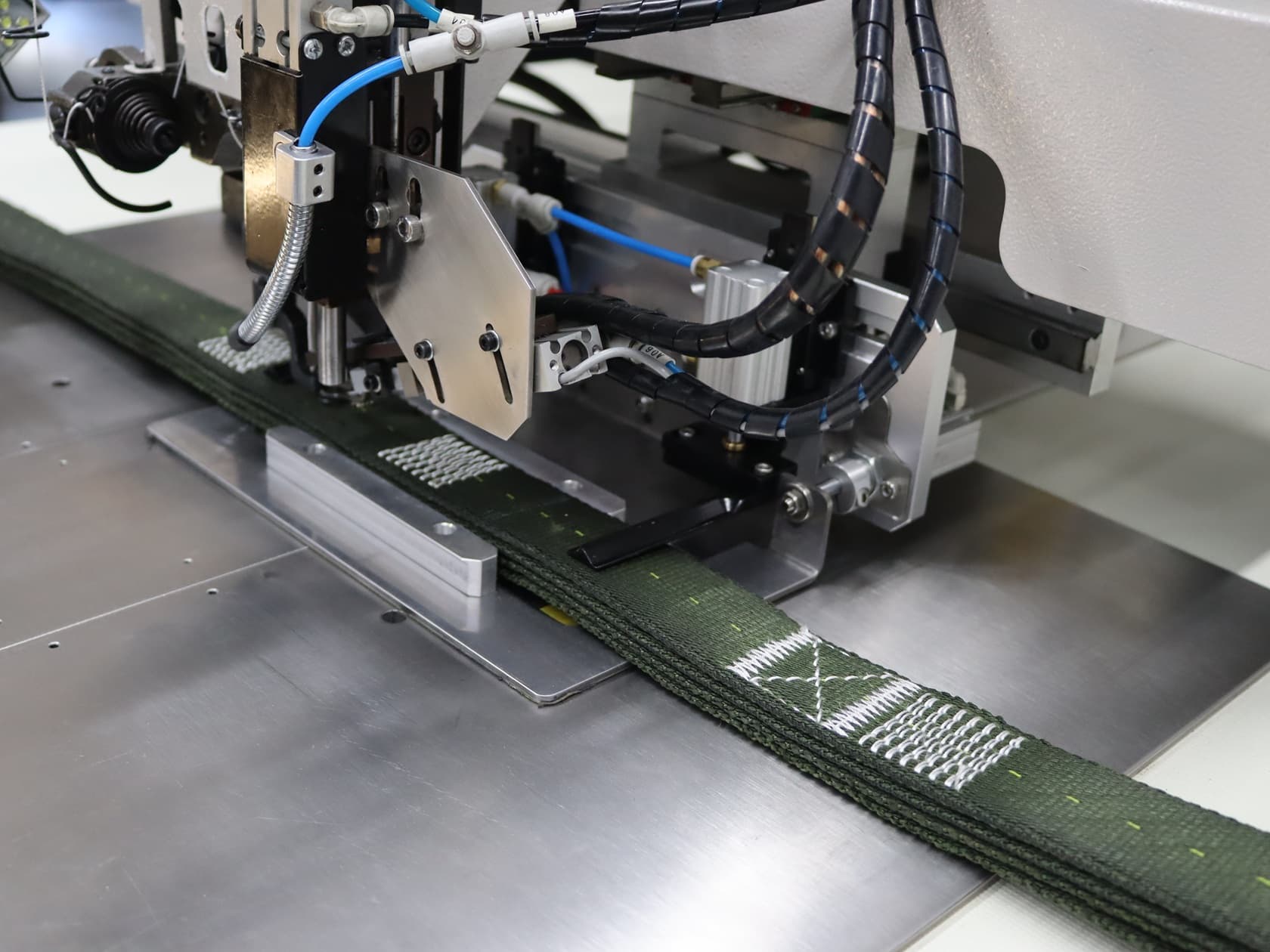

Extremely large needle penetration power allow the processing of super tough material, such as Mil-W-4088K type 26 military spec Nylon webbing (for parachute harness);
The dual tensioning bolt of shuttle hook prevents loss of bobbin thread tension mid-stitching;
The shuttle bed of other China made 733 class sewing machine is made by Ductile iron, which is prone to wear and tear. It is more frustrating that fabric or thread may get contaminated by ductile iron filings mixed excess oil. The HighTex 733 shuttle bed is made by High Carbon Steel, the super hard finish allow the parts to last up to 3 times longer than normal, and completely eliminate the problem of thread contamination;

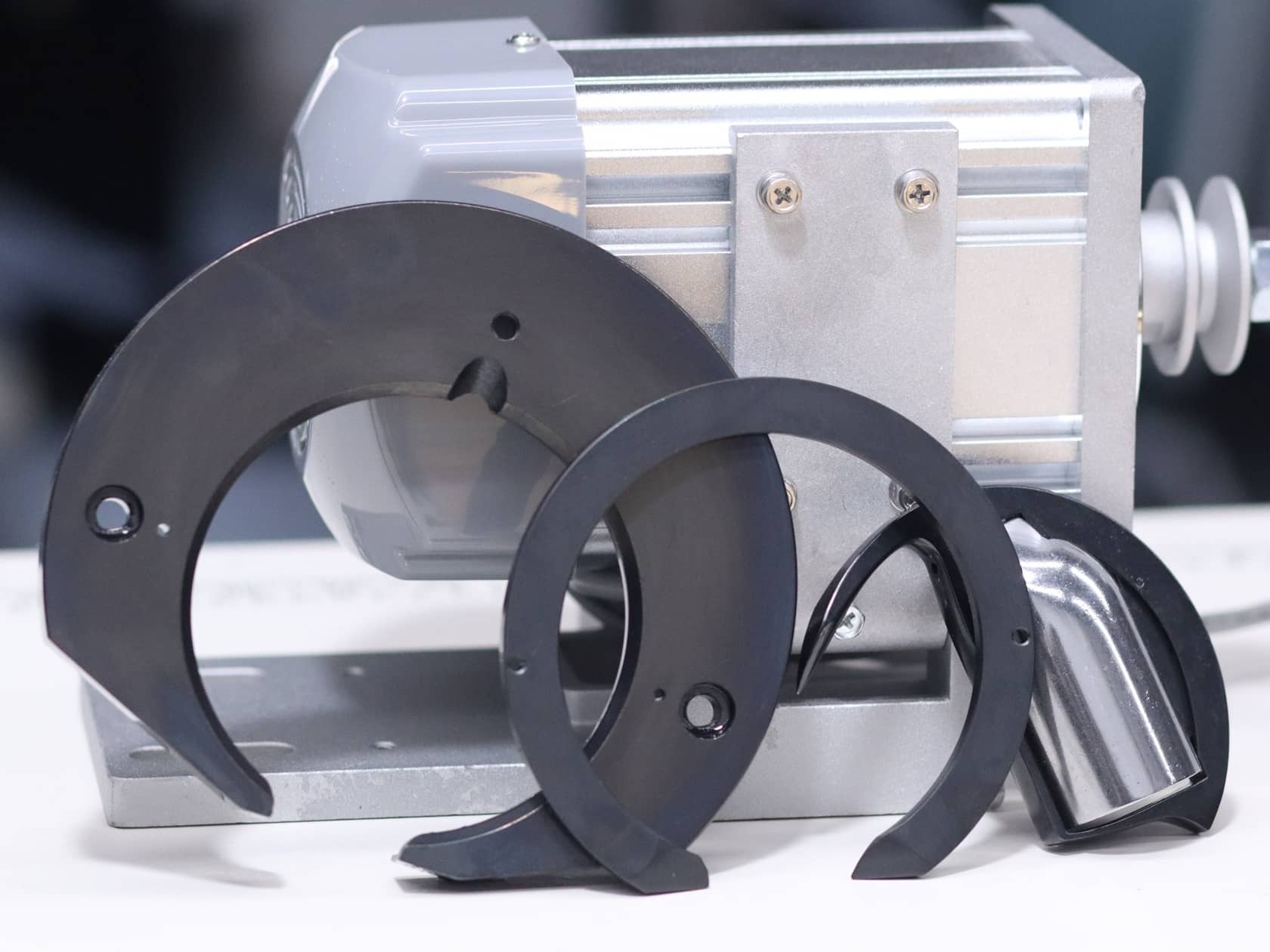

The large Barrel Shuttle Hook has been given a alloy coating that allow the parts to last up to 3 times longer than normal, and the smooth finish significantly reduce the noise of machine;
This extral heavy duty automatic sewing machines will be completely assembled, pre-programmed, tested and serviced, ready to operate out of box, very easy to use and maintain.

Specifications +

Max. Speed: 500 rpm
Sewing Area: 300x200mm
Max. Stitch Length: 12.7mm
Needle:Schmetz 1000H (#300/#29)
Max.Thread Sizes:Metric size #4,V693, T-700, 2000d X3
Max Sewn Thickness: 25mm
Pattern Input:Touch screen
Max. QTY of Patterns:2000 patterns
Air pressure: 0.6 MPa
Motor: 1500W/110-120 Volt
Packing size: 1090x1430x1445MM, G.W:360KGS

Product Information +

In view of the extremely extremely tough Mil-Spec webbing and strongest sewing threads used in the production of military parachute harness maximum demands are made not only on the machinery to be used, but also on the safety and durability of the seams. This robust, high penetration force programmable pattern sewing machine is designed for high-strength applications, for example 4-ply of Mil-W-4088 military spec Nylon webbing with each of 4.5mm, total thickness 18mm. Built to handle extreme heavy materials and/or thick thread, it delivers consistent, high-tensile strength seams for critical load-bearing products. Equipped with a super-large shuttle hook for extended sewing runs and capable of using thread sizes up to 554 (Tex 600 / Govt. 8-Cord), this machine offers unmatched stitch security. This extra heavy duty automatic sewing machine mainly purchased by American military manufacturers.
