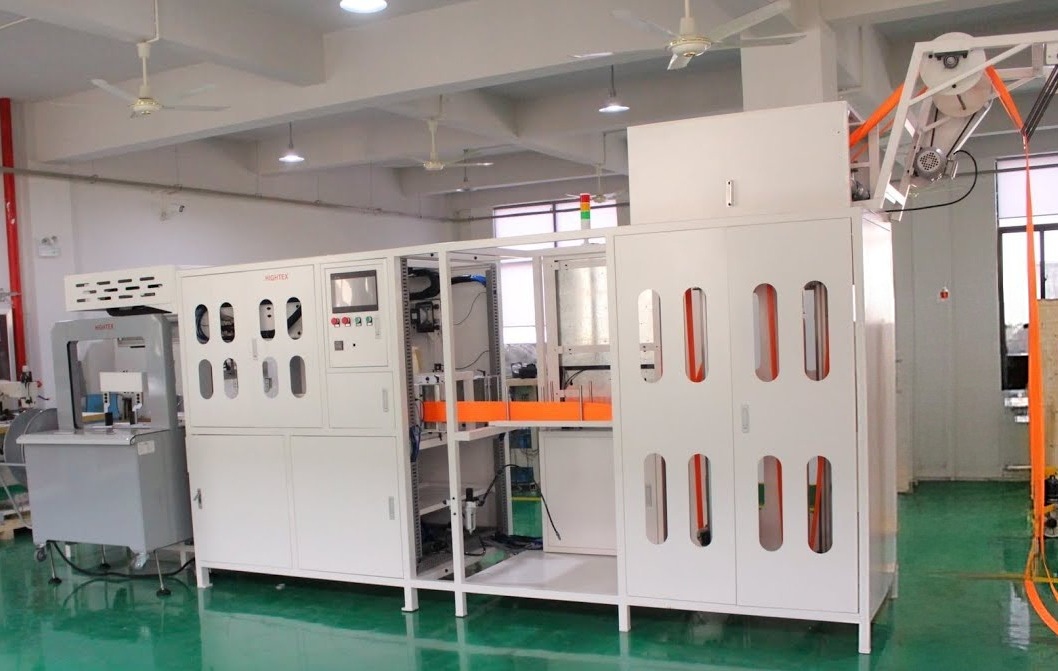

Fully Automatic Heavy-Duty Webbing Cutting, Measuring, Winding, and Bundling Machine

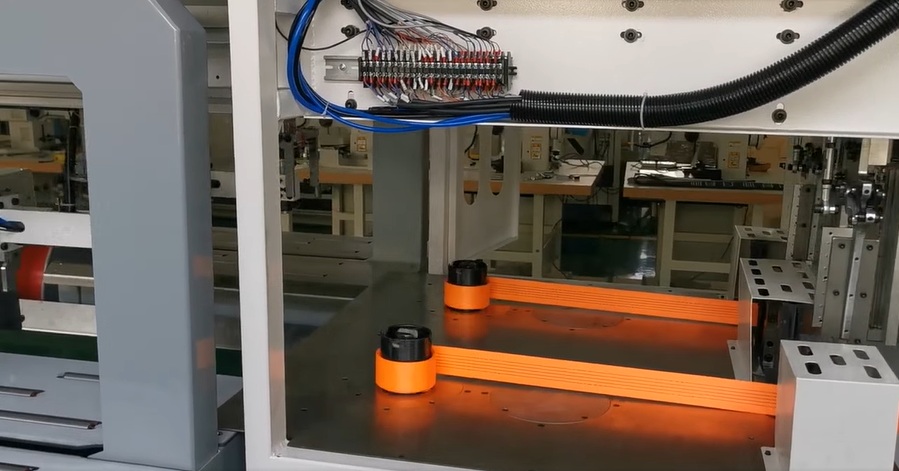

Fully Automatic Webbing Roll Winding Machine

Fully Automatic Heavy-Duty Webbing Cutting, Measuring, Winding, and Bundling Machine thumbnail

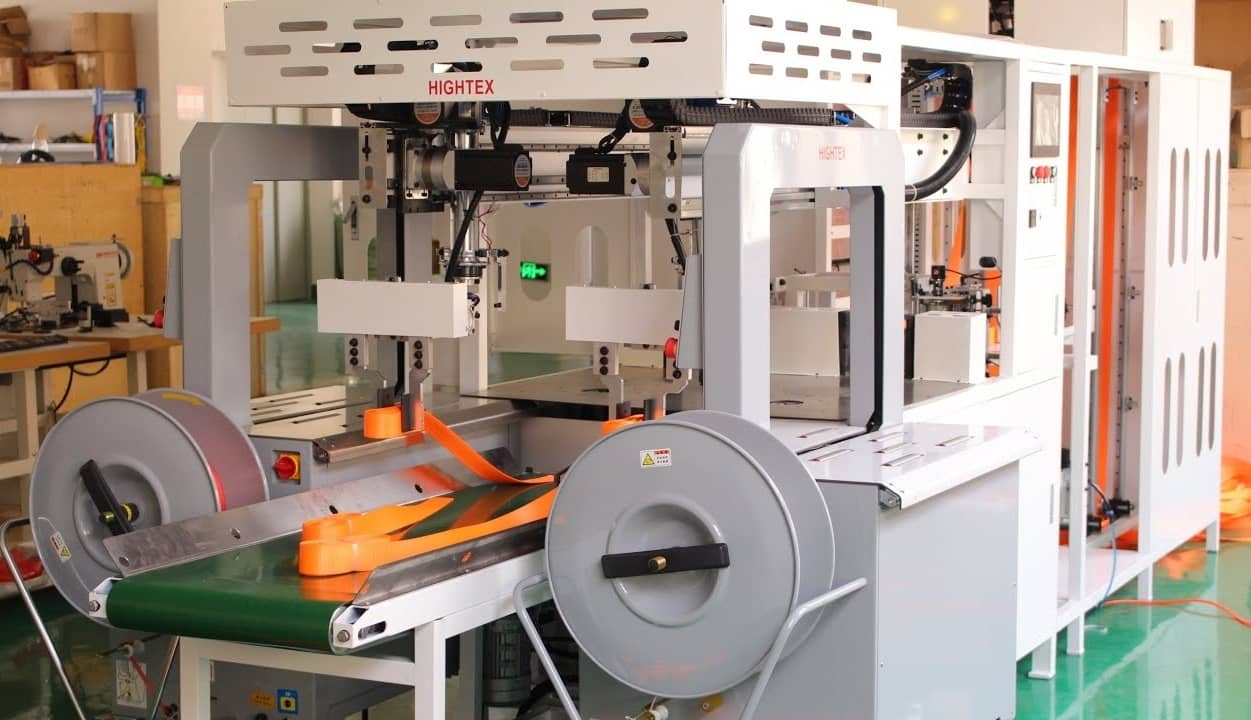

Fully Automatic Webbing Cutting Machine thumbnail

Fully Automatic Webbing Roll Winding Machine thumbnail

Fully Automatic Webbing Measuring Machine thumbnail

828-UV60-WPS Fully Automatic Heavy-Duty Webbing Cutting, Measuring, Winding, and Bundling Machine

Video on YouTube

$125,000.00, plus shipping

Call us at: 330 692 1418 for more information, or to order

Description +

High-quality, durable machinery is essential to maximize production output and profit margins. When purchasing automatic cutting equipment, prioritizing quality over price is a critical investment. Machine failure doesn’t just mean high repair costs—it results in costly downtime, lost orders, and damaged client relationships.At Hightex, reliability is non-negotiable. Unlike alternative suppliers, our commitment to excellence begins long before the machine leaves our facility.

For our automatic webbing cutting machines, we dedicate several weeks to assembling and testing each unit, ensuring every detail is flawless. This eliminates setup hassles, ensuring your machine is ready for immediate operation upon arrival. Furthermore, these heavy-duty hot knife webbing cutters are manufactured in accordance with European safety standards (CE) to ensure safe operation.

Because we refuse to cut corners on quality, our automated webbing cutting machines take time to prepare. We appreciate your patience as we build the perfect machine for your business.

1. Automatic length measuring;
2. Automatic cutting and sealing the webbing in same time for simple future processing (sewing);
3. Automatic roll winding;
4. Automatic bundling/strapping;
5. with device for the reduction of material feed tension;
6. Use single-chip microcomputer, very easy to use;
7. HighTex's extensive textile confection expertise, the machine prevents common issues like webbing entanglement, uneven tension during winding, or loose roll packages.

Specifications +

Working Speed: Adjustable from 100 rpm to 1000 rpm
Dia. of roller: F40mm~F140mm
Cutting length: 6 to 20 meters
Blade heating: 0-500 C.
Webbing width: 50mm~100mm (25mm requires different strapping machine)
Cutting type: Hot cutting
Cutting thickness: 1mm-6mm
Air pressure: 6Mpa
Voltage: 200-240V, 50-60HZ
Power: 12KW
Machine size: 7250mm(L) x1900mm (W) x 2500mm (H), G.W: 1560 KGS

Product Information +

The HighTex 828-UV60-WPS is a fully automatic heavy-duty webbing cutting, measuring, winding, and strapping machine designed specifically for high-volume cargo lashing straps and ratchet straps production. It automates the entire process from raw material feeding to the finished, bundled roll, eliminating manual labor completely during operation. Traditional lashing strap production typically requires up to four operators (two for measuring/cutting, one for winding, and one for bundling/packaging). The 828-UV60-WPS allows one single operator to manage multiple machines simultaneously, drastically lowering labor costs. Built with HighTex's extensive textile confection expertise, the machine prevents common issues like webbing entanglement, uneven tension during winding, or loose roll packages. This unit can be easily paired upstream or downstream with automatic sewing workstations (such as the HighTex ASM911 heavy-duty CNC automatic sewing machine) to create a fully integrated manufacturing line for ratchet straps.
