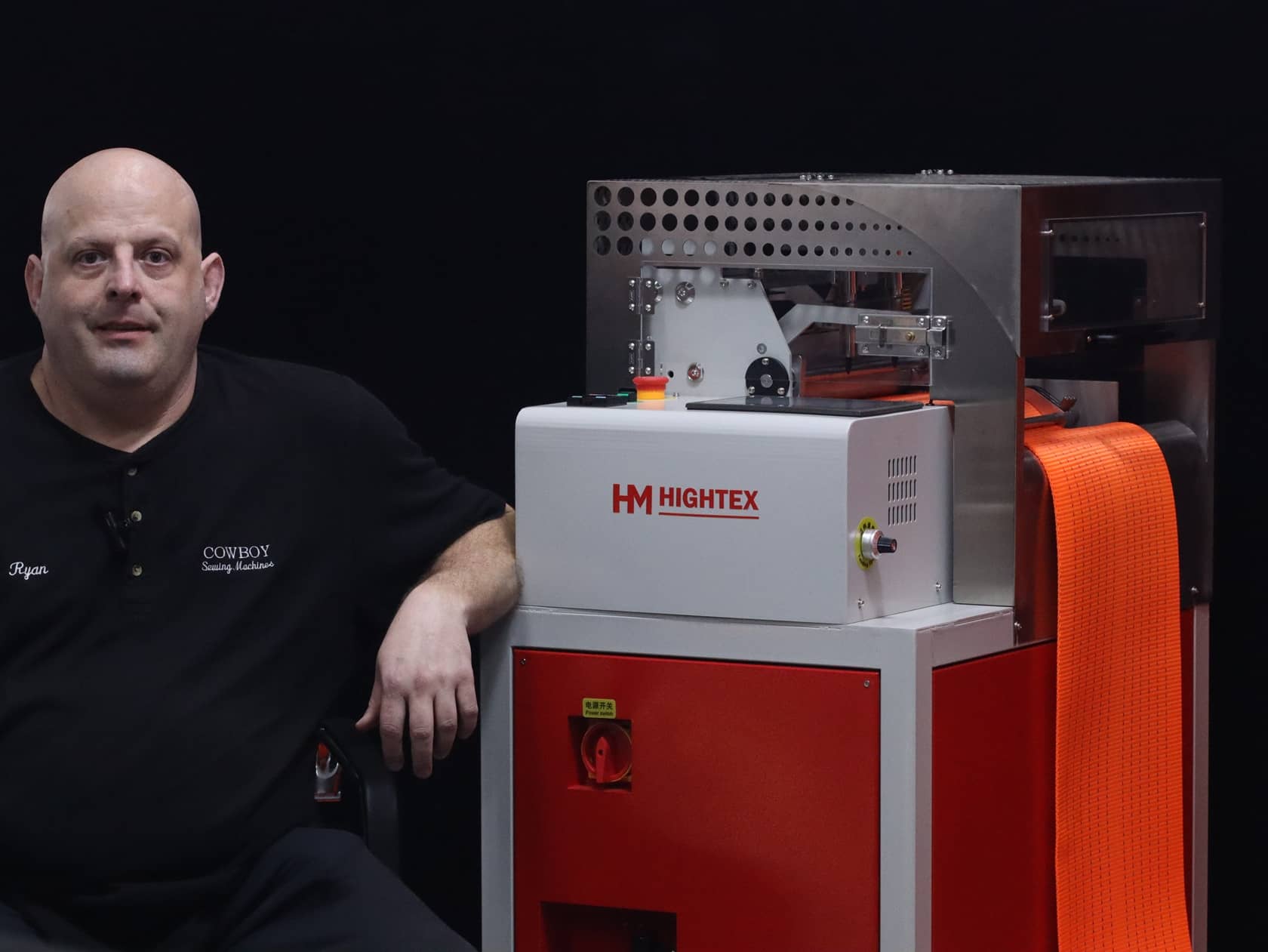

hot knife webbing cutting machine for 300mm wide webbing

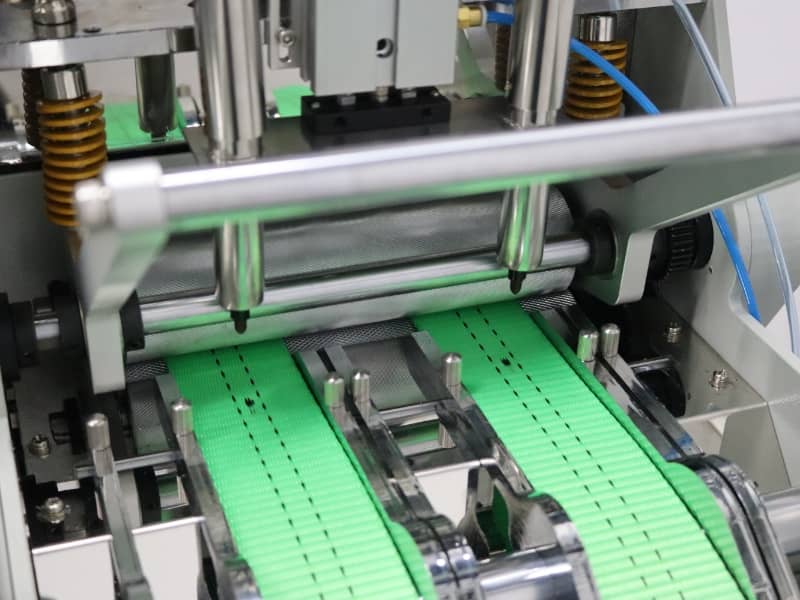

Heavy duty webbing cutting machine with marking

Heavy duty 300mm wide webbing cutting machine thumbnail

hot knife webbing cutting machine for 300mm wide webbing thumbnail

Heavy duty webbing cutting machine with marking thumbnail

828AC320 Heavy Duty Automatic Webbing Cutter for Cutting & Marking 300mm Wide Webbing Slings

Click here for DEMO video

$12,650.00, plus shipping

Option:
Automatic feeding equipment (pro-tensioning equipment): $3,000.00

Call us at: 330 692 1418 for more information, or to order

Description +

High-quality, durable machinery is essential to maximize production output and profit margins. When purchasing automatic cutting equipment, prioritizing quality over price is a critical investment. Machine failure doesn’t just mean high repair costs—it results in costly downtime, lost orders, and damaged client relationships.At Hightex, reliability is non-negotiable. Unlike alternative suppliers, our commitment to excellence begins long before the machine leaves our facility.

For our automatic webbing cutting machines, we dedicate several weeks to assembling and testing each unit, ensuring every detail is flawless. This eliminates setup hassles, ensuring your machine is ready for immediate operation upon arrival. Furthermore, these heavy-duty hot knife webbing cutters are manufactured in accordance with European safety standards (CE) to ensure safe operation.

Because we refuse to cut corners on quality, our automated webbing cutting machines take time to prepare. We appreciate your patience as we build the perfect machine for your business.

Massive 300mm Cutting Capacity

1.Massive Sling Processing: Standard cutters max out at 200mm. This custom 300mm machine cuts and heat-seals massive, heavy-duty, wide-body webbing slings used in maritime cranes and heavy construction rigging (e.g., Basket Slings).
2. High-Volume Multi-Slitting: Instead of processing one strap, the 300mm width allows manufacturers to run multiple narrower straps simultaneously side-by-side (e.g., three 100mm straps or six 50mm straps), vastly multiplying daily output.

Integrated Automated Point-Marking

3.Downstream Alignment: The machine features a programmable ink-marking system that automatically places reference dots on the webbing while it cuts.
4.Seamless Sewing Prep: These markings eliminate the "trouble" of manual measuring in the next production phase, guiding sewing machine operators precisely on where to overlap and reinforce stitch lines.
Ultimate 600°C Edge-Sealing
5.Fray-Proof Welding: Standard blades bend or lose heat when slicing through extra-thick webbing. The 828AC320 features specialized heating elements that reach up to 600°C.
6.Clean, Synchronized Melt: It cleanly melts and heat-seals both sides of dense nylon, polyester, and polypropylene fibers instantly. This prevents any fraying, structural unravelling, or rough edge artifacts that would fail heavy industrial safety inspections.

Continuous, Slip-Free Material Feeding

7.Heavy Weight Handling: Thick, 300mm wide material rolls are incredibly heavy and generate massive drag. The 828AC320 uses a synchronized top-and-bottom roller feed mechanism to pull the webbing steadily into the blade chamber without slipping, maintaining a strict length accuracy tolerance.
8.Automatic Jam Prevention: To achieve a completely "trouble-free" operation, the closed-loop PLC system monitors material tension. It automatically stops the machine if the material runs out or detects an intake jam, preventing dry-cycling or blade damage.
9.Tension Control Pre-Feeder (Optional): Operators can equip the machine with an automatic pre-feeding unit (like the S828AF-200). This actively pulls material from heavy floor bins or trolleys before it reaches the cutter, maintaining an exact, tension-free feed that eliminates tape-snagging errors.

Built-in Memory Storage

10.One major advantage of the HighTex 828AC320 is its built-in memory. It can save up to 30 different cutting profiles. This means once you program a specific length and quantity, you can recall it instantly for future orders without wasting time entering the data all over again.

Safe Operation

11.These wide heavy duty webbing cutting machines are manufactured in accordance with European safety standards (CE) to ensure safe operation.

Specifications +

Max. cutting width:300mm
Cutting length: 100mm to 500000mm
Max.temperature of blade:600C
Program storage: 30 programs
Time delay:1 to 1.5 second per cutting
Power: 2800W
Max. quantity marking point: 90 per cutting
Max cutting thickness: 5mm thick webbing or 16mm rope
Quantity of hot blades: 2 (Top and bottom hot knives)
Cutting tolerance: +2mm / -2mm
Packing size(assembly):1480X840X560mm, G.W: 180KGS

Product Information +

We are frequently asked about the performance of our 828AC320—a machine engineered for marking and cutting 300 mm wide webbing used in the manufacturing of lifting slings, lashing straps, safety harnesses, climbing ropes, and other industrial applications. How efficient is it, and can it truly reduce your labor costs?
Let’s answer these questions not just with words, but with concrete numbers! Read on to discover the proven benefits of this advanced webbing marking and cutting machine.
Just like the 828ACM, these wide-webbing cutting machines are manufactured in accordance with European safety standards to ensure safe operation
