Manual clicker die cutting press with swing arm

Manual clicker die cutting press with swing arm thumbnail

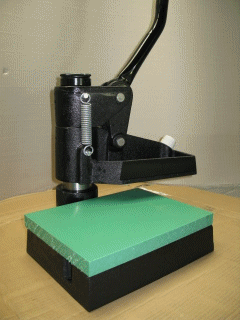

8360 Manual Clicker Die Cutting Press with Swing Arm

Click here for DEMO video

$1,260.00, plus shipping

Special order this machine by calling 330 692 1418. Customer service will be happy to help and provide you with an estimated lead time.

Call us at: 330 692 1418 for more information, or to order

Description +

The surprising power and strength of this industrial quality manual die cutting machine it apart from all other clickers in its class;
The 8360 hand operated press die cutter with swing-arm cutting head can perform many types of die cutting with steel rule dies and clicker dies;

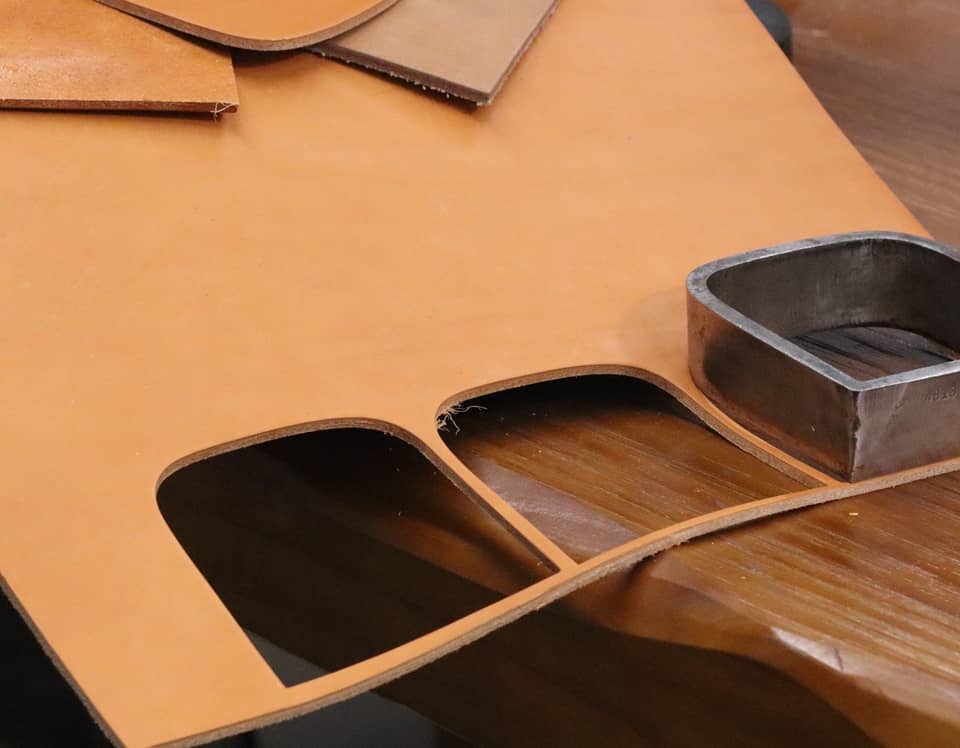

This bench top clicker has been used for leather, embroidery, badge cutting, card stock, magnetic cards, coasters, small plastic shapes, straps and belt ends, clothing, rubber, key fobs, cork, plastic, felt and many other materials;
The manual die cutting press allows you to use cutting dies pre-formed to the exact shapes that you cut on a regular basis in a fraction of the time;
Ruggedly built with a cam actuated mechanical advantage. This die cutting press requires little effort making operation very easy;
The swing arm operation provides the operator with a clear view, it allows you to see where you’re setting the die and offers easier clicking;
The knurled adjustment knob makes it easy to adjust machine for various material thicknesses.

Specifications +

Cutting pressure:Up to 5 tons
Cutting pad size: 300 x 228mm
Platen:200 x 230mm
Max. cutting thickness:10mm
Swing rotation:360 degree
Handle up:812mm
Packing size:395x345x480mm, G.W: 56/49 KGS

Product Information +

The Cowboy 8360 is a hand-operated clicker press featuring a swing arm, and a 300 x 215 mm cutting surface. The exceptional power, durability, and portability of this industrial-quality machine completely set it apart from all other manual clickers in its class. Equipped with a swing-arm cutting head, the CB-8360 effortlessly performs various types of die cutting using both steel rule dies and clicker dies. Ruggedly engineered with a cam-actuated mechanism, it provides a high mechanical advantage that requires very little physical effort from the operator.The rotating swing arm offers a completely clear view and easy access to the work table (cutting board), making the precise placement of dies on printed products incredibly simple. The 8360 functions just like larger industrial swing-head machinery—there is no need to pull your material out of the press between cuts. Simply swing the head out of the way, reposition your die, and make your next cut.Beyond cutting, the 8360 serves as an excellent embossing machine, capable of stamping maker's marks, geometric tooling patterns, and cheater dies onto various types of leather. Every artisan reaches a point where they need a clicker press but may be held back by the high cost of hydraulic machinery. The CB-8360 delivers industrial-grade performance at an incredibly affordable price.
