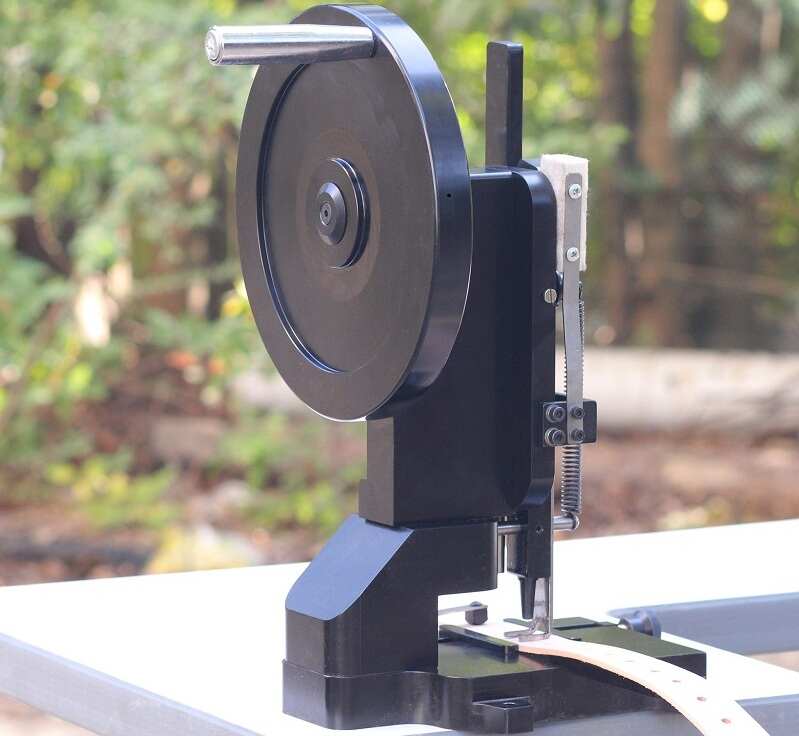

8500 Rotary Hole Punching Machine for Leather Belts and Straps

Click here for DEMO video

$1595.00, plus shipping

Special order this machine by calling 330 692 1418. Customer service will be happy to help and provide you with an estimated lead time.

Call us at: 330 692 1418 for more information, or to order

Description +

1. This machine is built for basic repeat punching in the belt and strap trades, designed for maximum performance and efficiency at a great price.
2. No electricity required. Simply hand crank the wheel to punch the material, and the machine feeds the work.
3. Equipped with a self-centering gauge that accommodates straps from 1/2″to 4-1/8″ wide.
4. The feed can be adjusted to punch holes from 7/16″ (10 mm) to a max. of 1-3/4″ (45 mm) apart.
6. Dual feed design helps feed material through machine.
7. A clicker board anvil offers more effective punching.
8. Simple, trouble-free design allows you to punch self-centering holes or punch holes down the side of a strap with the addition of our optional offset guide.

Specifications +

Accommodates straps: 1/2″ to 4-1/8″ wide
Adjustable Hole Punching Distance: 7/16″ to 1-3/4″

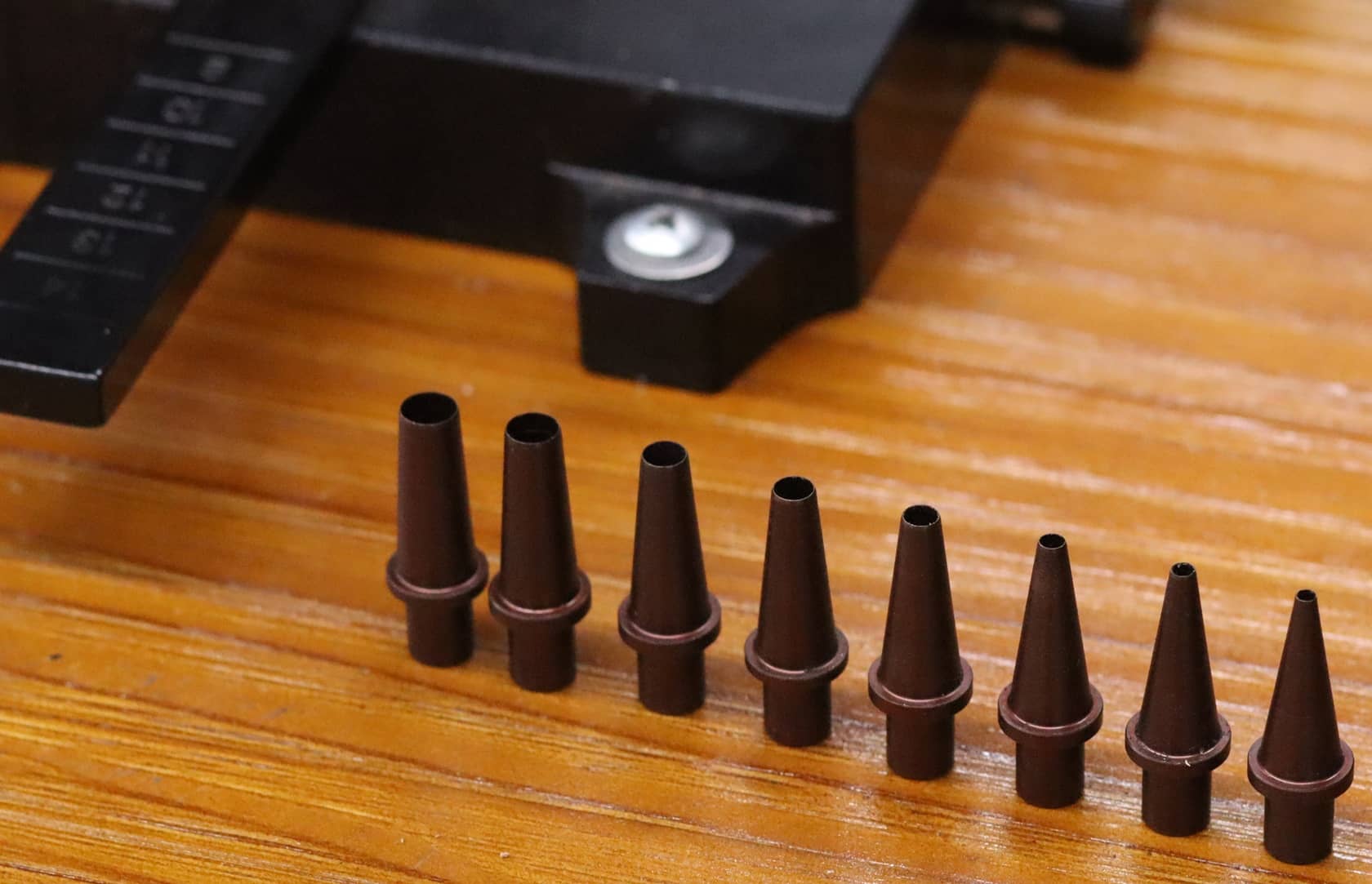

Punches Sizes (Included):
4mm, 4.5mm, 5mm
Punches Sizes (Optional): 2mm, 2.5 mm, 3mm, 5.5mm, and 6mm
Oval Puncher Size (Optional): 6mmx4mm
Work Space: 17″ x 14″ x 12″ (43 x 35 x 30 cm)
Material of blade: High speed steel (HSS)
Packing size:
Net weight: 63 lbs. (28 kg) / Shipping Weight: 75 lbs. (34 kg)

Product Information +

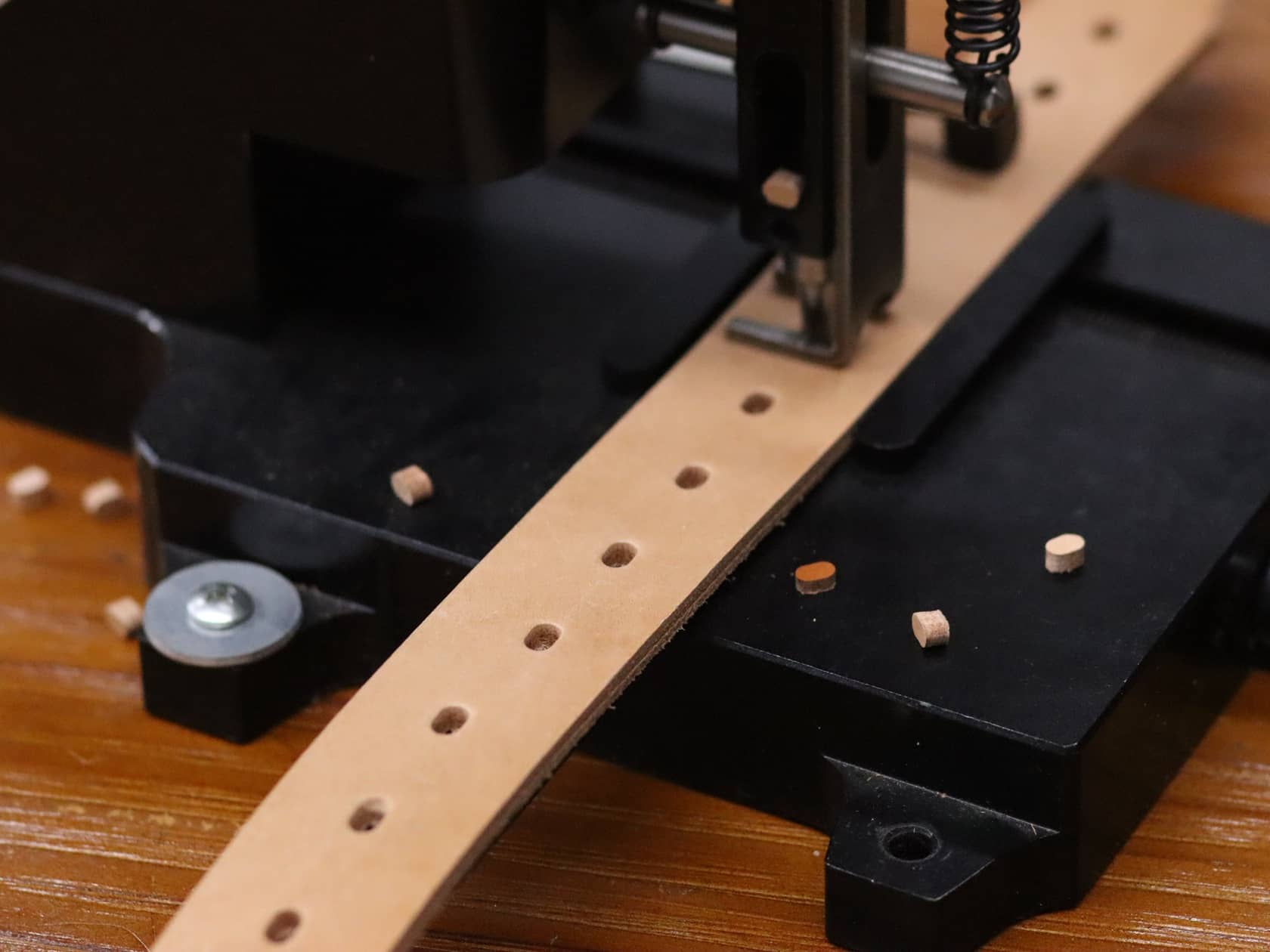

The Cowboy 8500 rotary punch is built for consistent, repeatable hole punching in the belt and strap trades. Oval hole puncher is available as option. This labor-saving machine is exceptionally easy to use and adapts perfectly to leather, synthetic materials, and coated webbing applications. It comes equipped with an automatic feeding system and a self-centering gauge that easily accommodates straps ranging from 1/2 to 4-1/8 inches wide.Operating completely without electricity, you simply turn the handwheel to punch your material while the machine automatically advances the work. The feeding mechanism can be adjusted to space holes anywhere from 7/16 inches (10 mm) up to a maximum of 1-3/4 inches (45 mm) apart. Both the hole spacing and the shock-absorbing anvil are fully adjustable to match your exact project needs.This efficient belt and strap hole punching machine maximizes workshop performance at an economical price. It is the perfect leathercraft tool to drastically boost your production speed, accuracy, and overall product quality.
