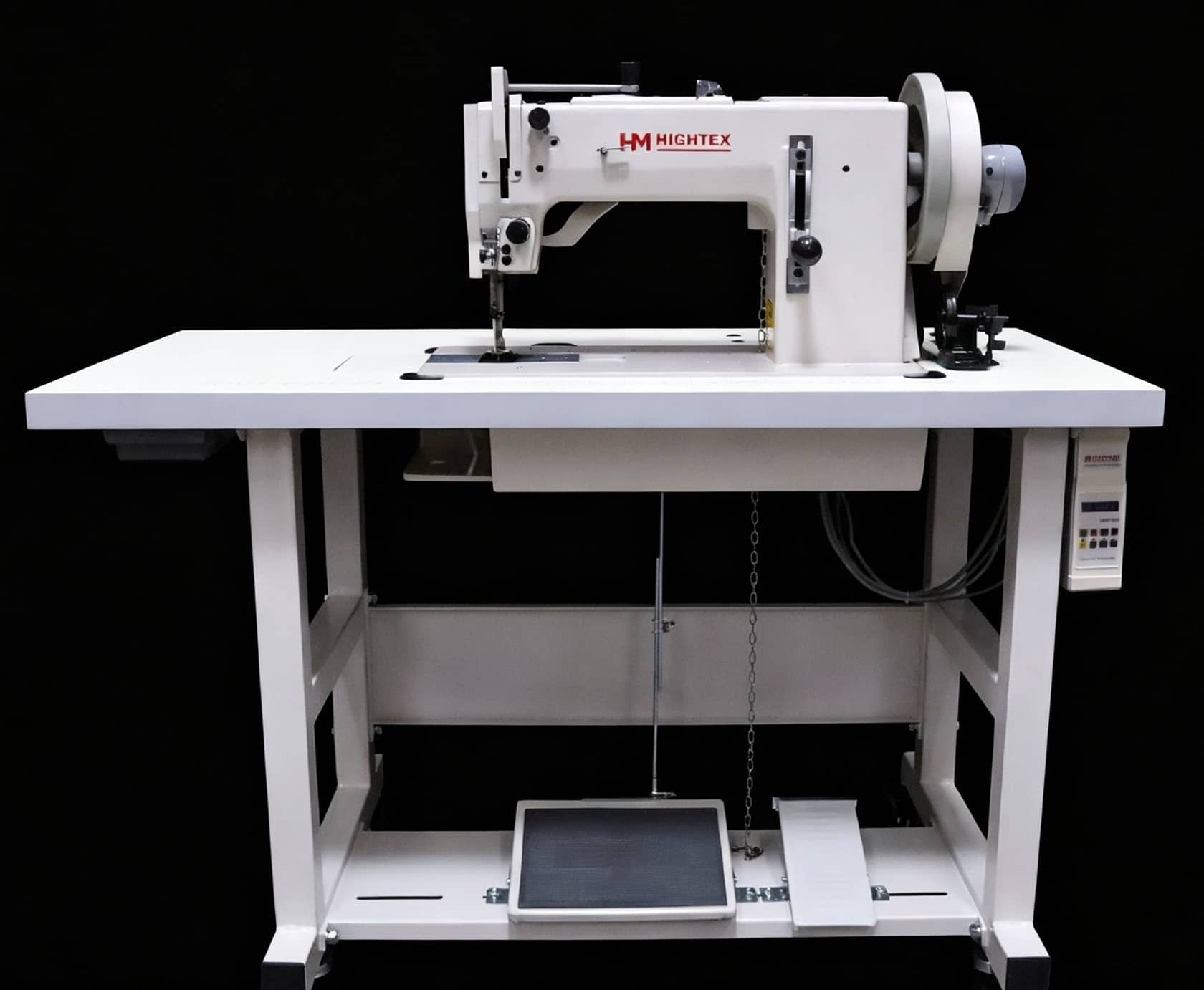

Adler 266 type Extra Heavy-Duty Zigzag Sewing Machine

Description +

1. It employs a parallel vertical needle bar motion for extremely strong needle penetration force, can easily sew sturdy webbing reinforcement and extra heavy sail corner patches, this extra heavy duty zigzag sew machine is capable of powering its needle through 20mm of Dacron, Kevlar, Webbing, Canvas and leather;

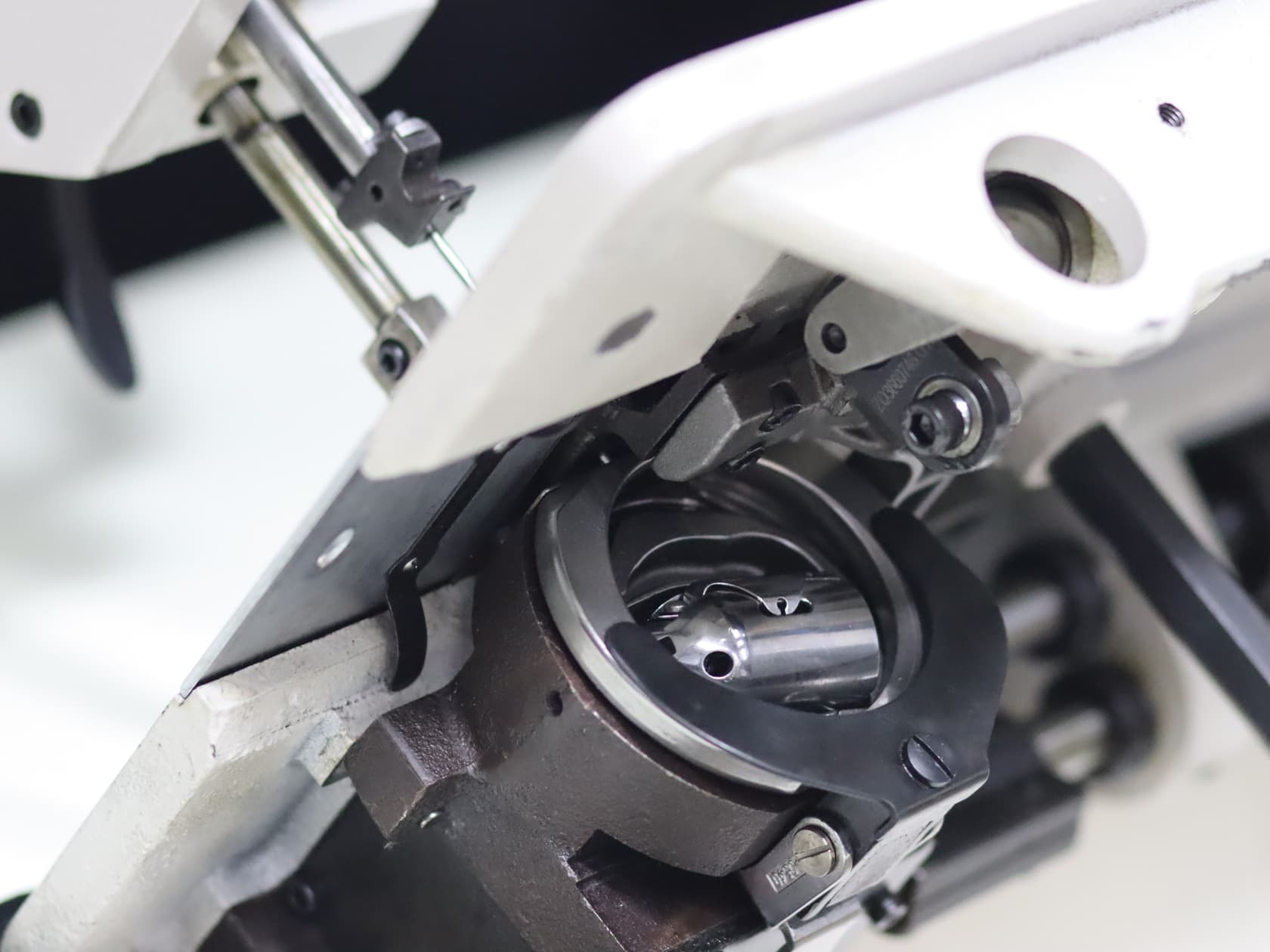

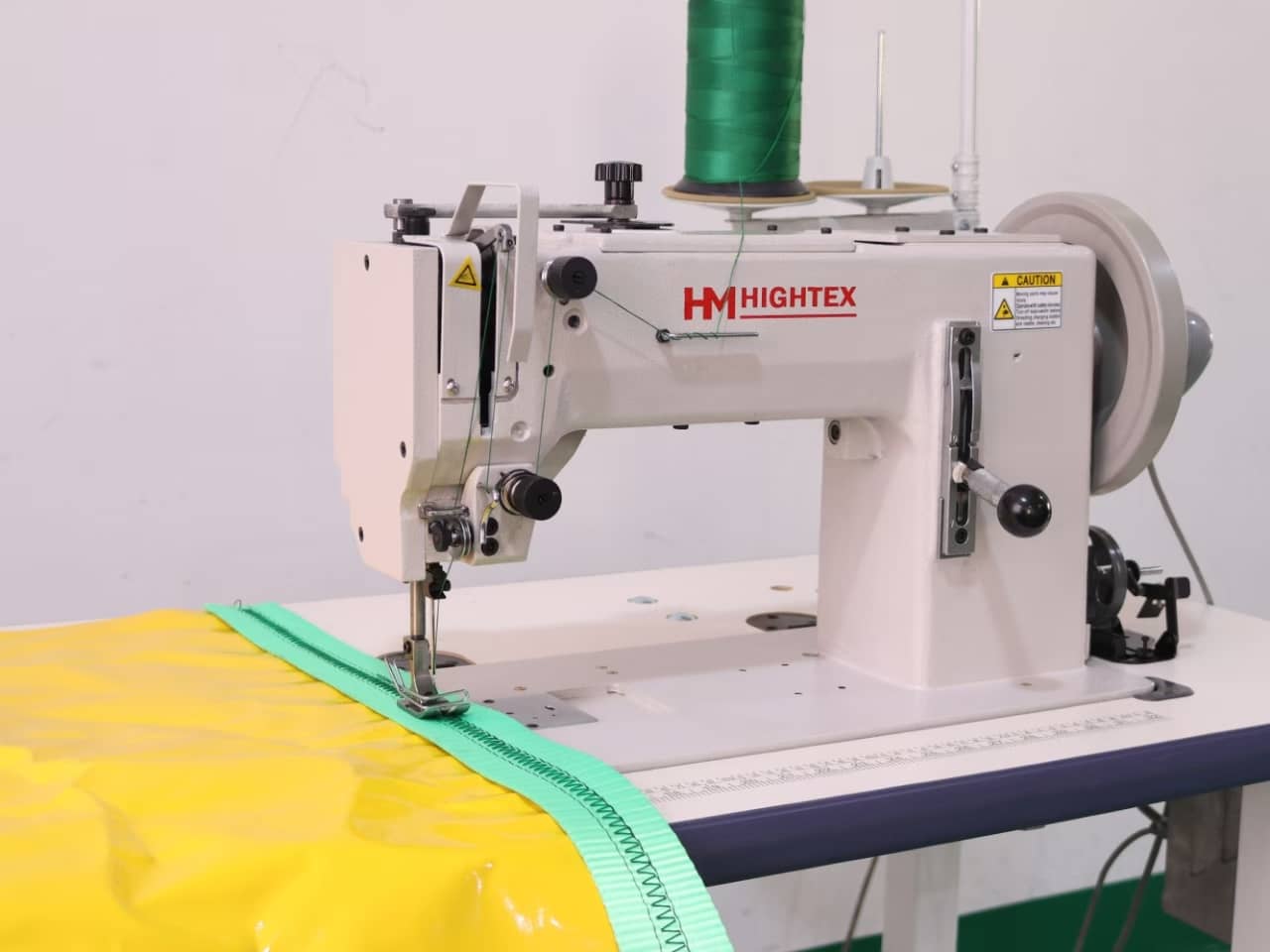

2. The large shuttle hook and bobbin capacity reduces the number of bobbin changes and offer high efficiency in sewing sails, tents and tarpaulins, using extra thick thread up to size V277, as well as thick decorative thread Tex 400 or 1300dx3 or 1.2mm braided thread;
3. A large Zigzag width of up-to 12mm to give nice decorative or functional stitching on a wide range of applications;
4. The basic mechanics (Shuttle hook, adjustments and times) is the same with Adler 166 and Adler 266 heavy duty zigzag, therefore it is easier for the manufacturers who already worked with Adler zig-zag sails sewing machines;

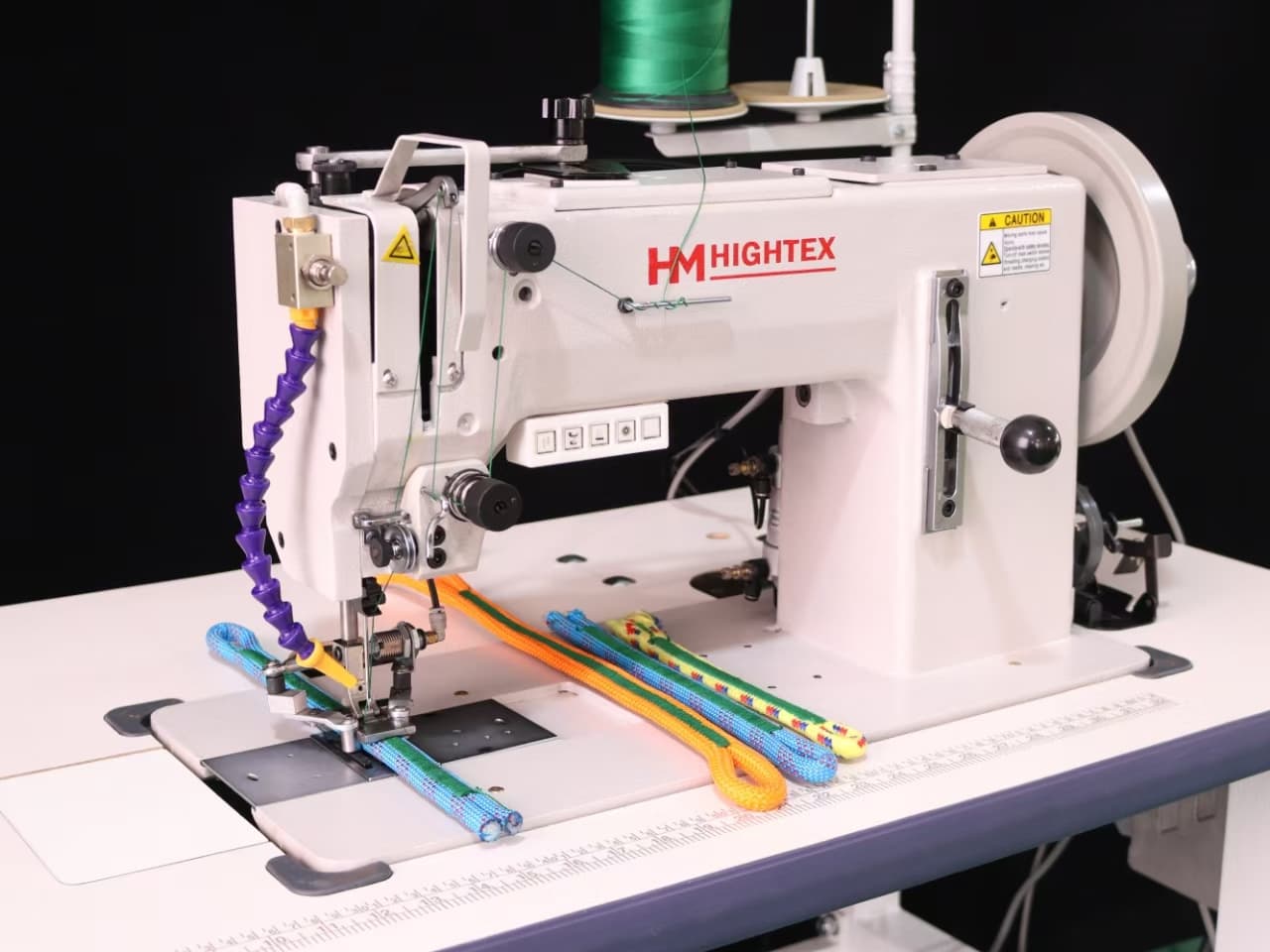

5. With an optional custom presser foot, the 9266 easily switches to a high-density zigzag stitch for rope-end bar tacking. Perfect for manufacturing large dog leashes, climbing ropes, and safety cordage;
6. Equipped with the Kinedyne HM-750SH low-speed electronic servo motor, this system delivers effortless, precise speed control—making heavy-material stitching smoother and more manageable than ever;
7. Pneumatic foot lift, pneumatic reverse stitch, needle cooler and zigzag binding device are available as option.

Specifications +

Max. Speed:800 spm
Max. stitch Length:10mm
Needle:794, DY x 3 (#24)
Max.Thread Sizes:8/3 (=V415, T-400) or 1mm Braided yarn
Maximum Foot Lift: 20mm
ZigZag width:12
Hook type: 204 Large Barrel Shuttle Hook
Clearance room:320mm (L) x 185mm( H)
Packing size(head):770x620x520MM, 85KGS

Product Information +

The Cowboy 9266 is a single-needle zigzag and straight-stitch sewing machine engineered for the production of sails, parachutes, leather goods, and technical textiles. Boasting an extremely powerful needle-penetration force, it effortlessly stitches through sturdy webbing reinforcements and extra-thick corner patches. As one of the heaviest industrial zigzag machines on the market today, it is capable of powering its needle through up to 20 mm of Dacron, Kevlar, webbing, canvas, and heavy leather.The extra-large shuttle hook and massive bobbin capacity drastically reduce the frequency of bobbin changes, ensuring high production efficiency even when sewing with extra-thick threads up to size V207 (including V92, V138, and more). Built on the same core mechanical architecture as the classic Adler 166 and Adler 266, this machine offers an incredibly familiar and intuitive setup for manufacturers who already operate Durkopp Adler zigzag sail-making machinery.

9266 Extra-Heavy-Duty Straight-Stitch and Zigzag Sewing Machine | Adler 266 Equivalent
