9518-30-17 Long Arm Zigzag Sewing Machine for Spinnakers and Windsurfing Sails

Click here for DEMO video

$15,650.00, plus shipping

Special order this machine by calling 330 692 1418. Customer service will be happy to help and provide you with an estimated lead time.

Call us at: 330 692 1418 for more information, or to order

Description +

The solid cast and strong sewing machine long arm allows approximately 735 mm clearance to the right of the needle, which is around 3 times the length of a standard arm Zigzag machine;
This sail maker sewing machine standard supplied with 4 cams for straight stitch, 1-step (2-points), 2-step (3-points), 3-step (4-points) zigzag, cover all demands of modern sail making industry. 6-point zigzag is available as option;
It employs a parallel vertical needle bar motion for stronger striking power and can easily sew sturdy webbing reinforcement and heavy duty corner patches. It is capable of powering its needle through 8 mm of Dacron sailcloth, Kevlar, Webbing, Canvas and leather;
This heavy duty upholstery sewing machine is particularly user-friendly due to the Kinedyne HM-1000SH low speed high torque servo motor that allows slow, controlled stitching. It makes sewing detailed work much easier;

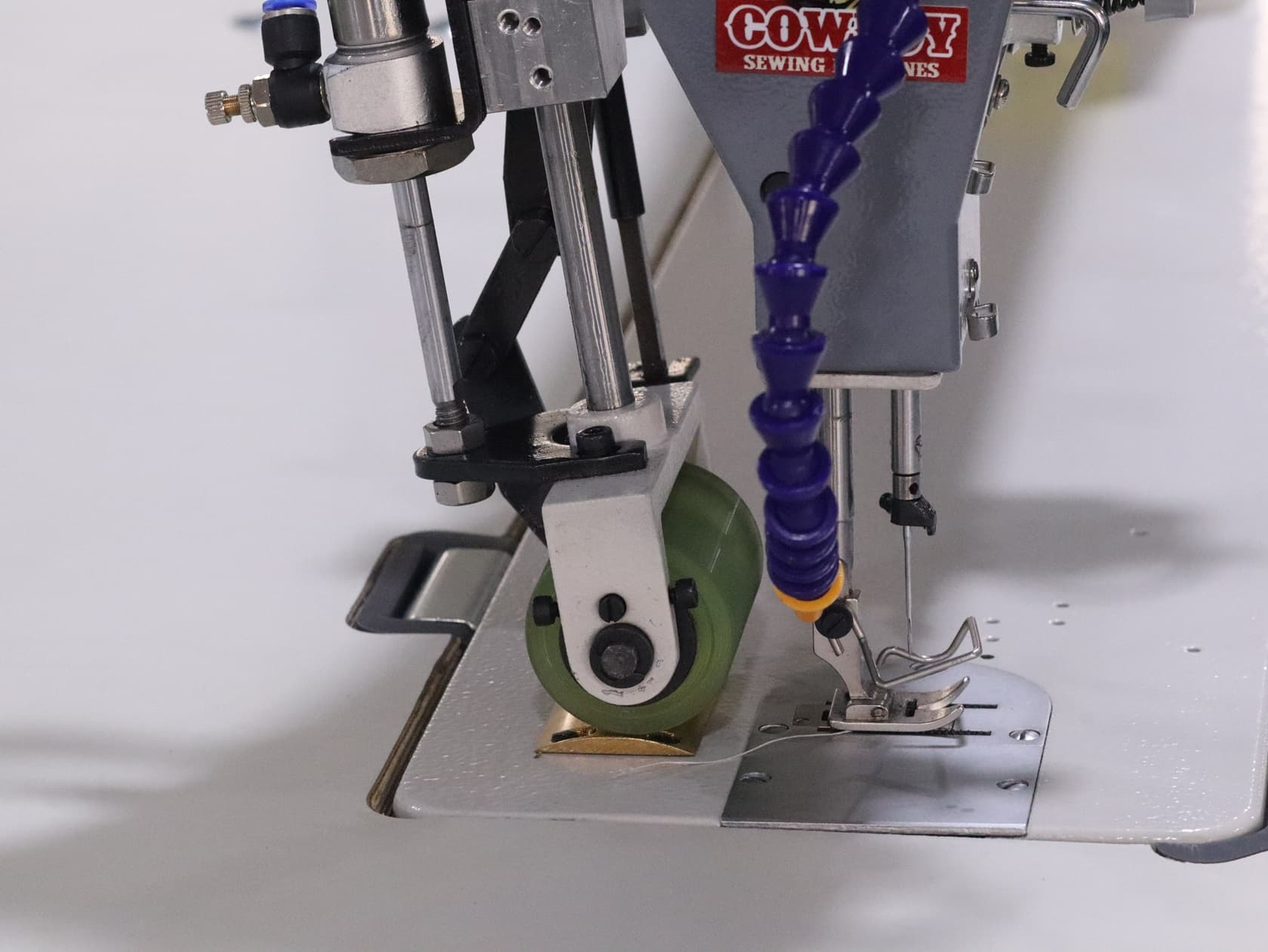

The heavy duty built-in puller behind the pressure foot helps sail makers create a smooth, even stitch on windsurf sail;
The rotary hook containing 3 times large bobbin capacity, resulting in fewer bobbin changes and in combination with the vertical take up lever system, it is of particular use when using thick threads;
The basic mechanics (Rotary hook, adjustments and timing) is the same with Durkopp Adler 72525 and Minerva 72525, therefore it is easier for the sail lofts already worked with Adler 525 spinnakers sewing machines.

Specifications +

Max. Speed: 2200 rpm
Max. Stitch Length: 5mm
ZigZag width: 10mm
Needle:134-35 size 100 to 140
Max.Thread Sizes:V138
Maximum Foot Lift: 12mm
Max Sewn Thickness: 8mm
Clearance room:735mm x165mm
Motor: 750W/110-120 Volt
Packing size(assembly):1630X790X1250MM, 180KGS

Product Information +

The HighTex 9518-30-17 is engineered for straight-stitching as well as 1-step, 2-step, 3-step, and 4-step zigzag patterns in the production of spinnaker sails and medium-weight sails. It employs a parallel vertical needle bar motion for increased striking power, allowing it to easily sew through sturdy webbing reinforcements and heavy-duty corner patches. This robust machine is capable of powering its needle through up to 7 mm of Dacron, Kevlar, webbing, canvas, and leather.
To ensure flawless handling, a heavy-duty built-in puller positioned behind the presser foot helps sailmakers create smooth, uniform stitches on windsurf sails and light-to-medium cloths. The machine is highly versatile, accommodating a wide range of industrial sewing threads, including sizes V46, V69, V92, and V138. Its modern design features a adjustable zigzag width of up to 10 mm.
Built with drop-in compatibility, it is fully interchangeable with the Durkopp Adler 72525—offering a seamless and familiar workflow for sail lofts already operating Adler 525 machinery. Powered by the Kinedyne HM-750SL precise speed control servo motor, it allows you to sew at very slow, consistent speeds—making it ideal for intricate artisan work and beginners alike.
