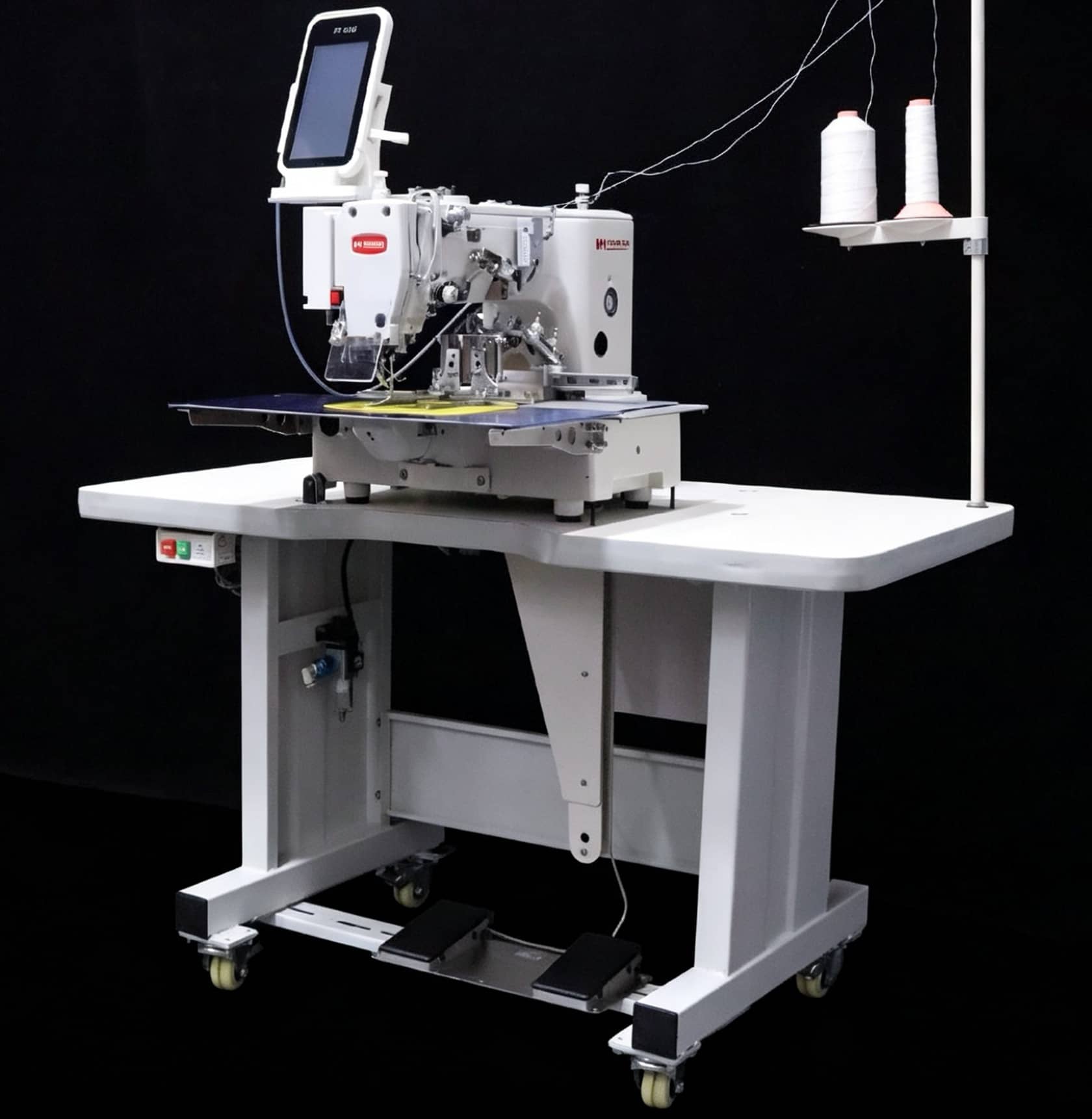

BAS-326H-484 Heavy Duty Programmable Electronic Pattern Sewer

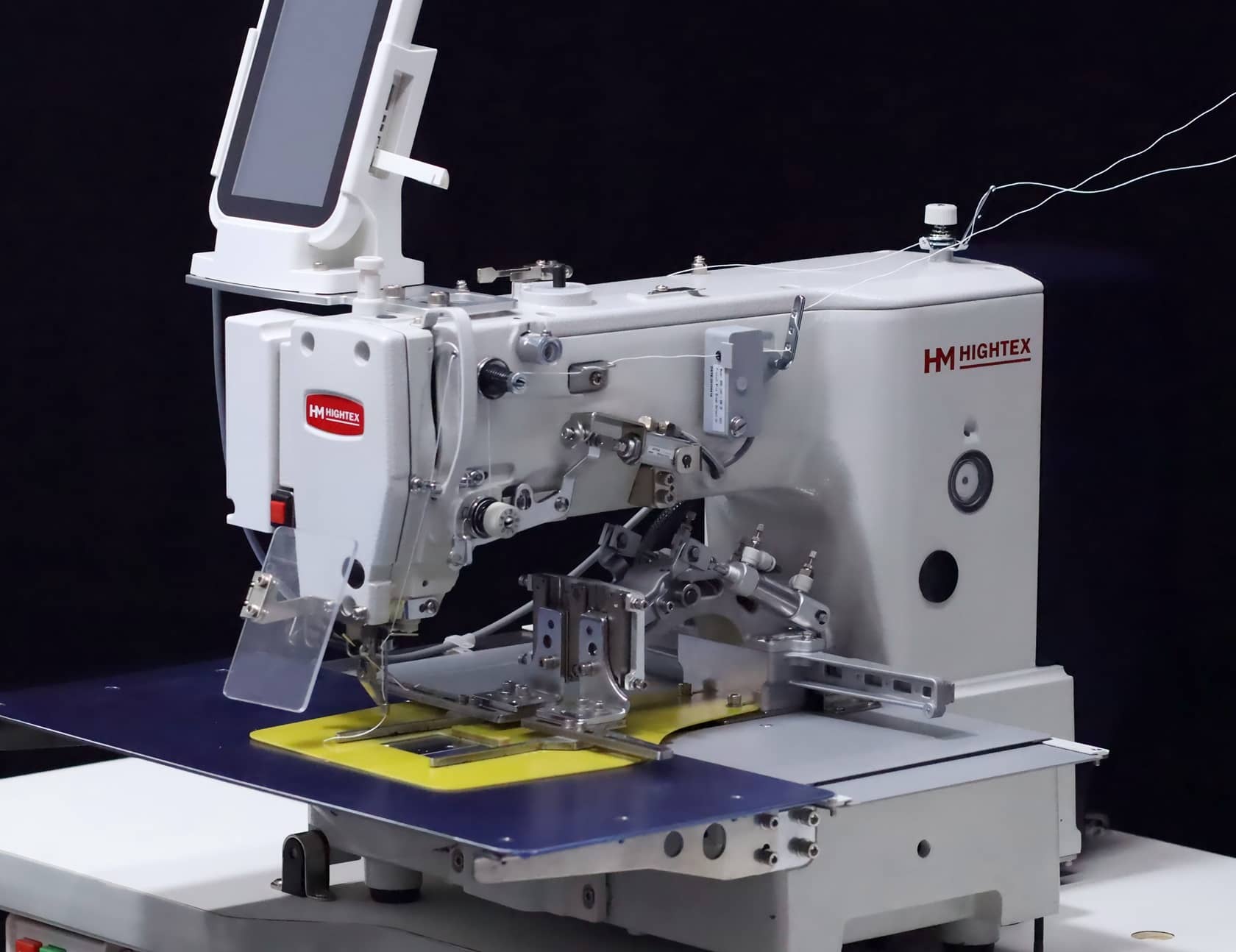

BAS-326H-484 Heavy duty bar backing machinee

BAS-326H-484 automated seat belt sewing machine

BAS-326H-484 Best price electronic bar tacking machine

BAS-326H-484 Heavy Duty Programmable Electronic Pattern Sewer thumbnail

BAS-326H-484 Heavy duty bar backing machine thumbnail

BAS-326H-484 automated seat belt sewing machine thumbnail

BAS-326H-484 Best price electronic bar tacking machine thumbnail

BAS-326H-484 Heavy Duty Electronic Pattern Sewing Machine with Treble Hook for Thick Thread Sewing of Leather Goods, Webbing Strap, and Safety Harness

Video on YouTube

$11,995.00, plus shipping

Call us at: 330 692 1418 for more information, or to order

Description +

1. Cost-Effective Premium Performance100% Component

Interchangability: It is built entirely using identical components to the Brother machine, giving you premium Japanese precision engineering at a fraction of the cost.
Lower Capital Investment: It eliminates the high cost barrier of the rare Brother model, allowing independent workshops to access industrial-grade automation within a reasonable budget.

2. Tailored for Extra-Thick Threads

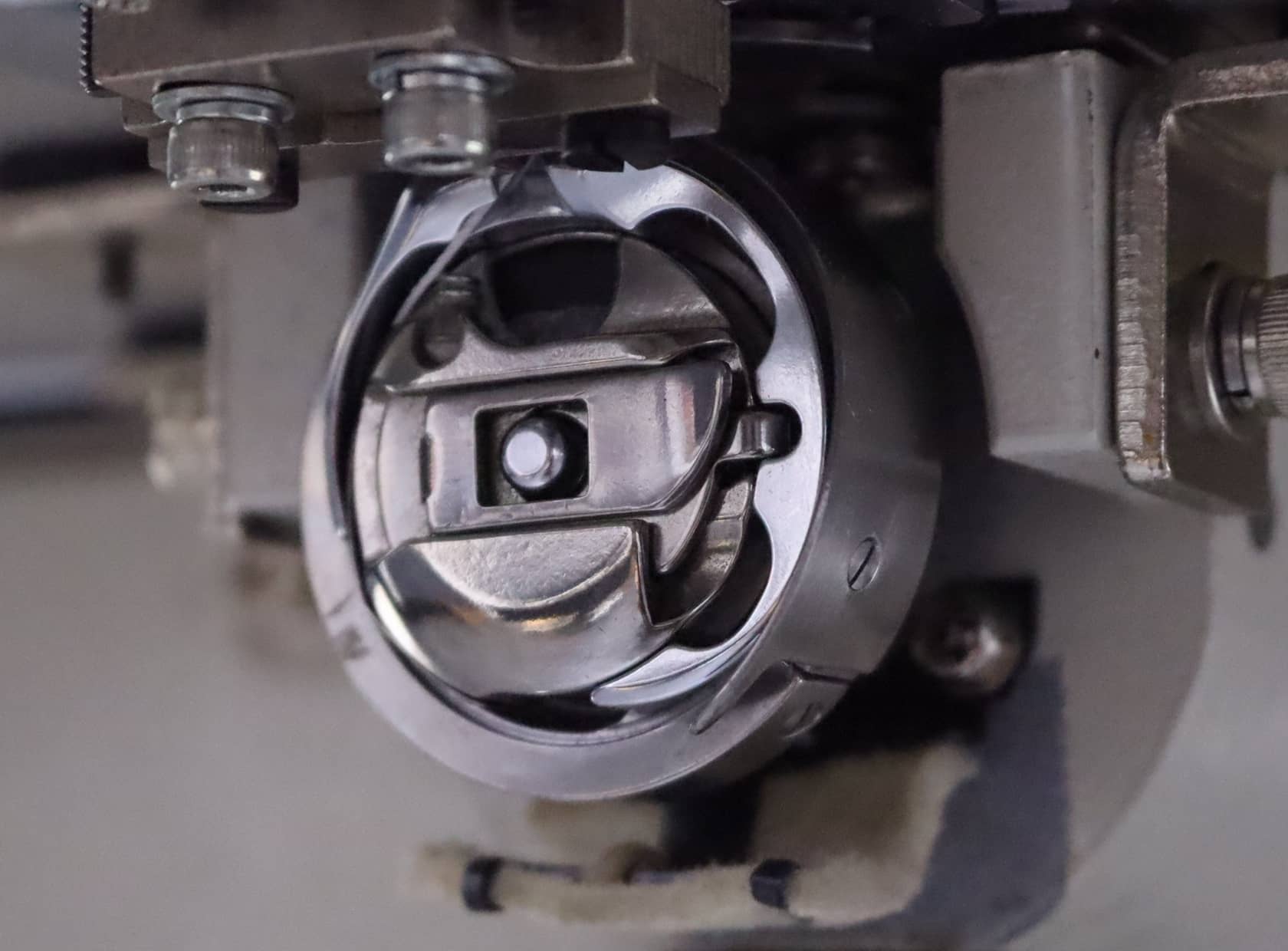

Triple Bobbin Capacity: It features a 3x large capacity rotary hook, which drastically reduces the frequency of bobbin changes when sewing with thick threads.
Heavy Thread Optimization: Unlike standard machines that struggle with thick thread tension, this machine is specifically modified to handle extreme thread sizes (such as V277 and T-270) without skipping stitches.

3. Market Availability & Support

High Stock Availability: While the original Brother version is nearly impossible to find or order in today's market, the HighTex version is actively manufactured and highly available.
Easy Maintenance: Because it uses identical standard components, finding replacement parts, needles, and technician support is simple and inexpensive.

3. Uncompromised Sewing Accuracy with Pinpoint X-Y Mechanics

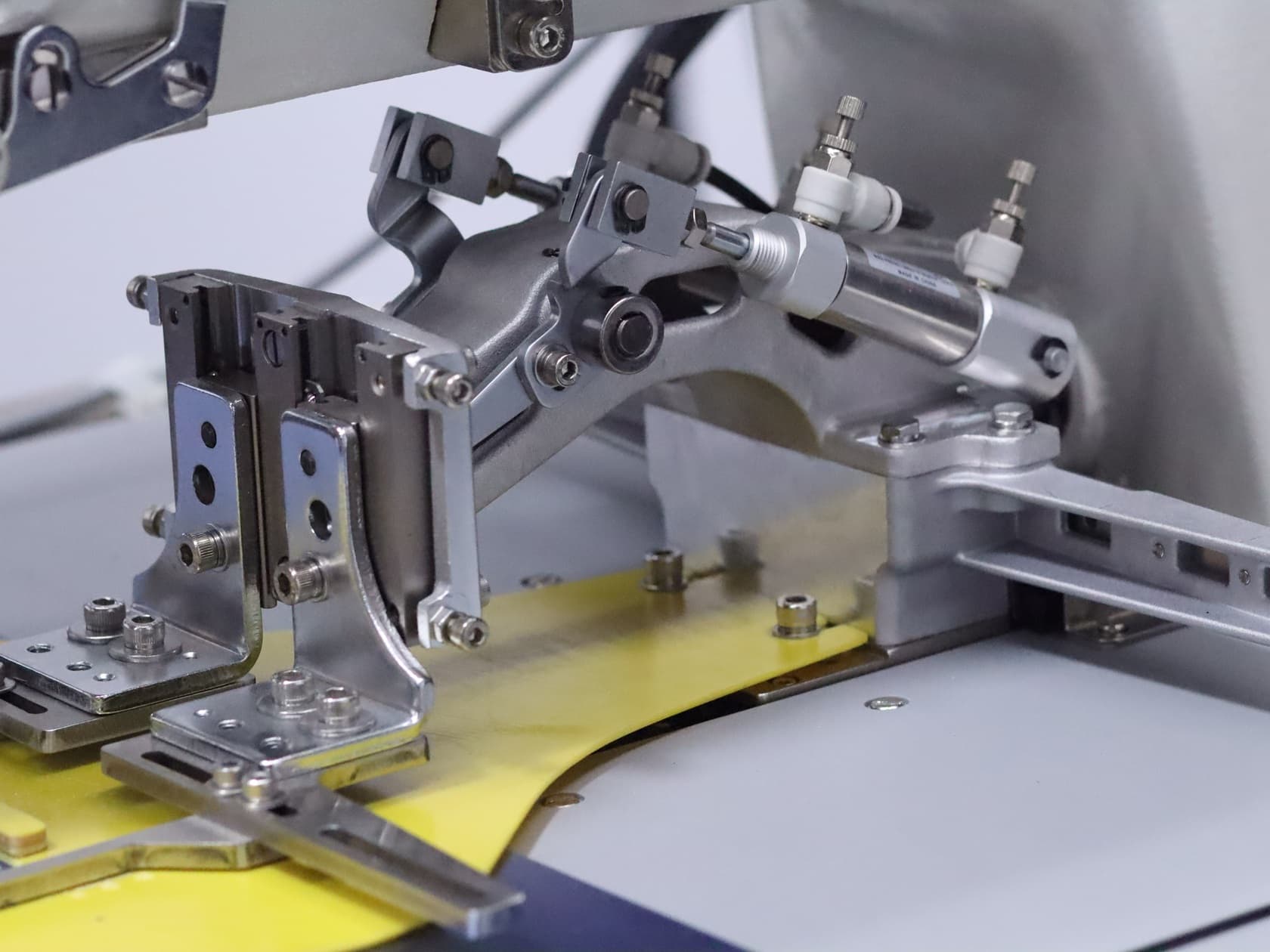

Robust Construction: Retaining the original design's rigid feed mechanics and heavy-duty clamping system, this system ensures perfect stitch alignment and flawless pattern replication—even on thick leather or heavy webbing.
Thread Breakage Sensor: The moment a thread snaps, the sensor instantly signals the motor controller to stop the machine, preventing missed stitches and material damage.

Specifications +

Max. Speed: 2700 rpm
Max. sewing Area: 300x200mm
Max. Stitch Length: 10MM
Needle: DPX17#18
Max.Thread Sizes:Metric#10 (=T-270, V277, 840dx3)
Maximum Foot Lift:20mm
Max Sewn Thickness:9mm
Pattern Input:Touch screen
Bobbin size: Outside Dia. 30mm, Height 11mm
Air pressure: 0.6 MPa
Motor: 1000W/200-240 Volt
Packing size:1230x865x1370MM, G.W:196 KGS

Product Information +

Brother BAS pattern sewers deliver pinpoint accuracy through advanced rigid mechanics and smart feed mechanisms. However, the small bobbin size remains a major challenge for manufacturers who need to sew with thicker threads. To solve this problem, the Brother BAS-326H-484 pattern sewing machine was introduced. Unfortunately, this machine is highly elusive in the market, likely due to its prohibitive cost.
As a result, the HighTex BAS-326H-484 sewing machine offers a compelling alternative. Its primary advantage is that it is built entirely with identical components, seamlessly blending precision Japanese engineering with HighTex’s specialized, heavy-duty modifications. This machine perfectly bridges the gap between premium industrial reliability and cost-conscious budgets for professional webbing and leather manufacturers.
