Heavy duty cylinder bed leather sewing machine

inexpensive heavy duty saddlery sewing machine

Low Cost Leather sewing machine thumbnail

Heavy duty cylinder bed leather sewing machine thumbnail

inexpensive saddlery sewing machine thumbnail

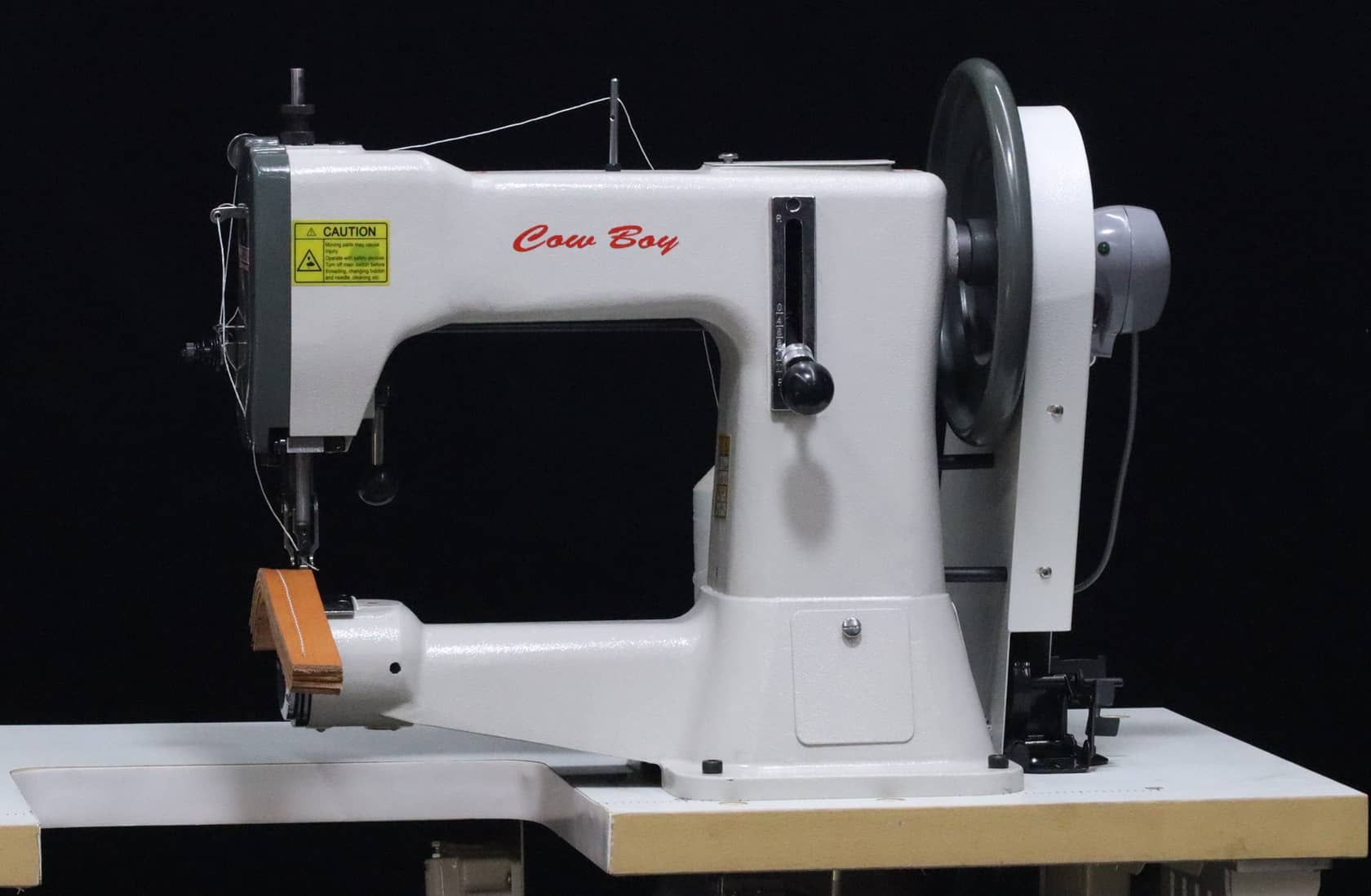

CB3200 Budget-Friendly Heavy Leather Stitcher for Saddlery & Harness Making

Click here for DEMO video

$2,895.00, plus shipping

Special order this machine by calling 330 692 1418. Customer service will be happy to help and provide you with an estimated lead time.

Call us at: 330 692 1418 for more information, or to order

Description +

Exceptional Cost to Performance Ratio

1.Budget-Friendly Entry: It is the lowest-cost heavy-duty saddle and harness stitcher on the market, pricing significantly below competitor models like the Juki TSC-441 or Adler 205.
2.Shared Accessories: It utilizes the same needles, bobbins, and presser feet as larger, more expensive industrial machines (like the Cowboy CB4500), saving you money on parts.

Superior Material Feeding & Stitch Precision

3.Triple Feed Mechanism: Features a walking foot, needle feed, and feed dog working in unison. This ensures thick, multi-layered, or slippery leather segments feed evenly without shifting.
4.Perfect Stitch Matching: The full reverse mechanism allows the machine to perfectly match stitch holes in both forward and reverse, creating cleaner, professional-looking seams.
5.No Material Marring: Equipped with a non-teeth feed dog, smooth throat plate, and smooth-bottom presser feet to prevent leaving unsightly marks or teeth tracks on fine vegetable-tanned leather.

Heavy-Duty Structural Capabilities

6.Impressive Lift and Clearance: Features an 11-inch long arm cylinder bed for manipulating shaped items, along with a high 5/8" presser foot lift to clear thick projects easily.
7.Thick Material Penetration: It can easily stitch through heavy leathers up to 1/2" to 5/8" in total thickness. This makes it perfect for gun holsters, knife sheaths, belts, and light saddlery.

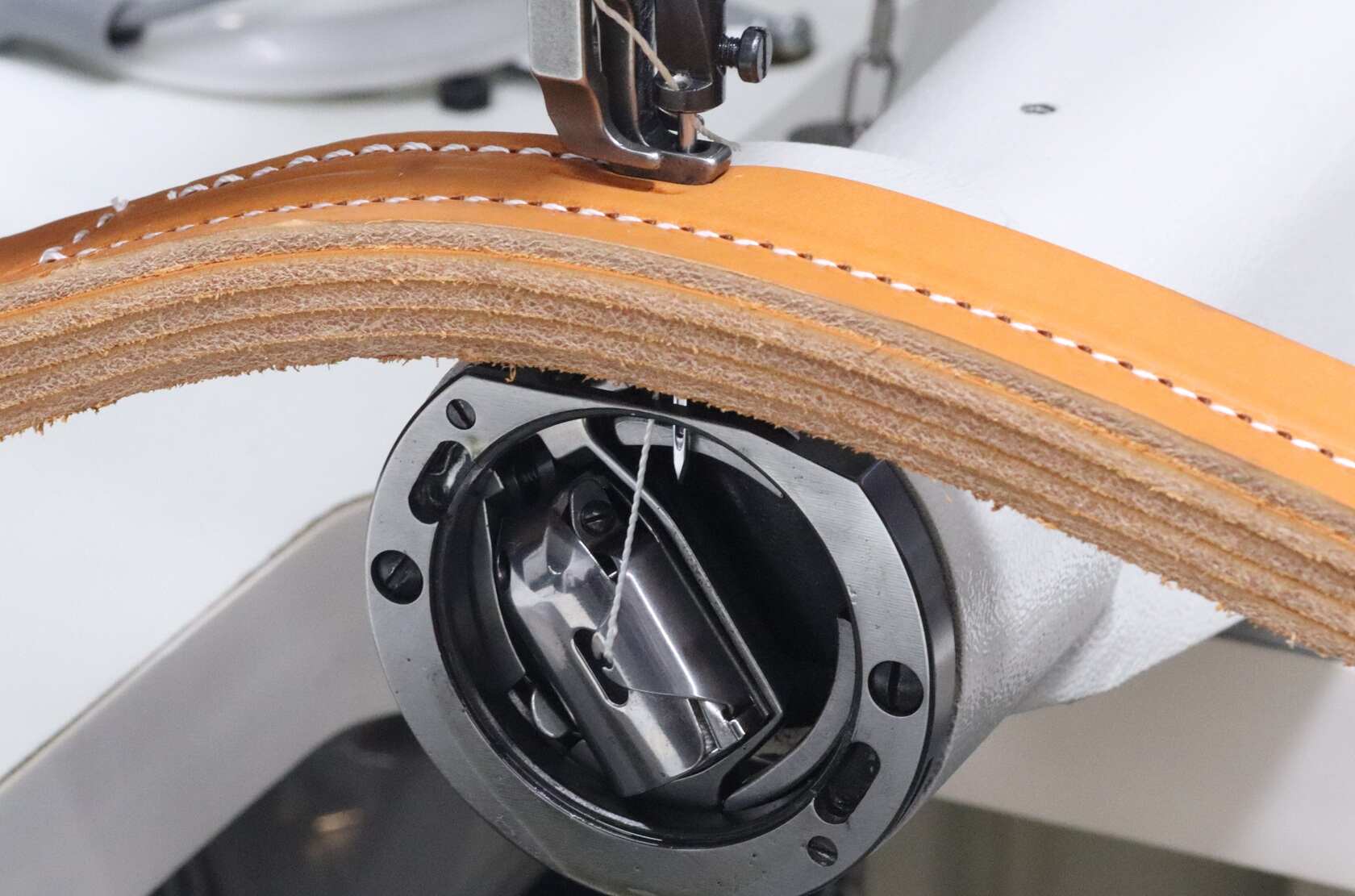

8.Massive Thread Capacity: Utilizes a large barrel shuttle hook built to easily manage heavy bonded nylon or polyester threads ranging up to thick #346 sizes without skipping stitches.

User-Friendly Control for Detailed Work

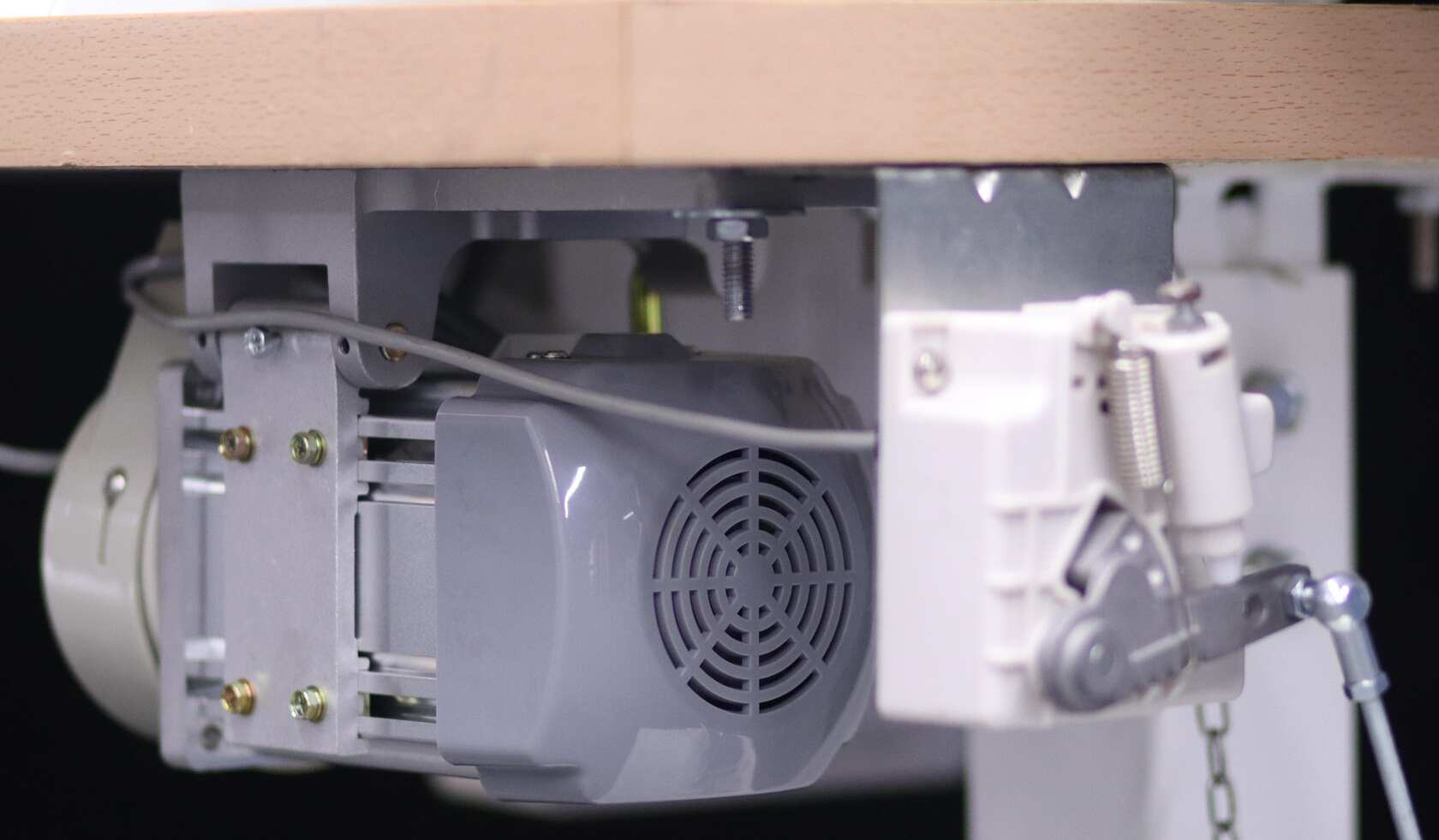

7.Low-Speed Servo Motor: Typically paired with a specialized Kinedyne HM-750SH low-speed servo motor (eliminates the need for a now obsolete, "Speed Reducer"). This allows for stitch-by-stitch control, which is crucial when navigating tight corners or detailed borders.

Specifications +

Max Speed: 700 rpm
Max Stitch Length: 10mm
Needle:794 S leather point needle, #160-#280
Thread Sizes: #69 - #415
Bobbins: 7/8" x 1" large capacity
Arm Length:268mm
Arm Diameter: 3 9/16"
Maximum Foot Lift: 18mm
Max Sewn Thickness:16mm
Reverses into same holes
750W/110V Slow speed high torque servo motor

Product Information +

For beginners who are mindful of their budget, the Cowboy CB3200 is an excellent choice. As the most affordable heavy-duty, compound-feed walking foot machine on the market for saddles and harness, it refuses to compromise on quality. It offers straightforward functionalities that are easy for novices to grasp, making it an ideal entry-level option. Equipped with an Adler 205 and Juki TSC-441 style shuttle hook, it effortlessly sews through extremely thick materials. Its compound feeding system ensures perfectly even stitches across multiple plies of heavy fabrics, while precision components significantly reduce skipped stitches. Furthermore, the Kinedyne HM-750SH extra-powerful servo motor enables slow, controlled stitching, making detailed work remarkably user-friendly.
