Cowboy CB4500 The Ultimate Heavy-Duty Leather Sewing Machine for Saddlers, Harness Makers, and Leather Crafters

Click here for DEMO video
$3,395.00, plus shipping
Special order this machine by calling 330 692 1418. Customer service will be happy to help and provide you with an estimated lead time.
Call us at: 330 692 1418 for more information, or to order
Description +
  • While around ten different manufacturers in China produce JUKI TSC-441 clone heavy-duty industrial leather sewing machines, the Cowboy CB4500 is unmatched in performance and reliability. Over the past 20 years, the CB4500 has been a consistent bestseller among leather crafters and saddlers, earning its reputation as one of the highest-rated machines in its class with a massive worldwide following.

  • General Advantages:

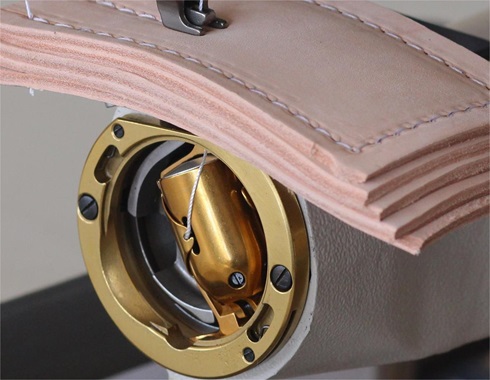

  • 1. The special extra large Barrel shuttle hook and bobbin capacity reduces the number of bobbin changes and offers high efficiency in sewing products using extra thick thread up to metric size 7* (=V415, 1300dX3 or T-400);
  • 2. The compound feed mechanism of this machine features a feed dog, walking foot, and needle feed that all work in unison to insure feeding of the most difficult materials with ease;

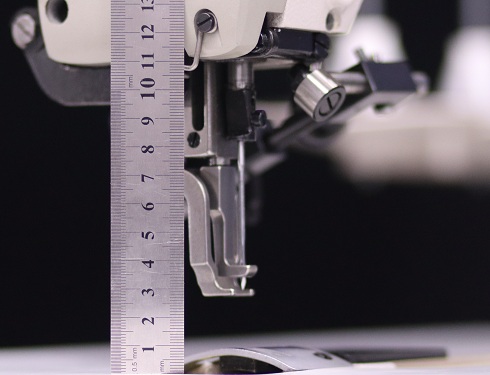

  • 3. The presser foot has an extra high lift and can go up to 25mm, allowing for a large range of extra heavy weight material or bulky items to be used (Click here for detail) ;
  • 4. The 12 inch Mega Flywheel of this saddle and harness sewing machine is to create more torque for very hard and rigid leather for saddle makers and harness makers;
  • 5. The height adjustable Pedestal stand (Space saver) allows the machine bed to stick out from the left hand side of the table allowing an opening or free arm advantage;
  • 6. The precise reverse mechanism guarantees reverse stitches in the same holes.
  • 7. A full array of special sewing attachments (Click here for detail) are available for high productivity and perfect seam quality.

  • Superior Maneuverability for Leatherwork:

  • In the world of fine craftsmanship, where every stitch is a testament to quality and precision, the CB4500 leather sewing machine delivers unparalleled maneuverability to ensure flawless results.

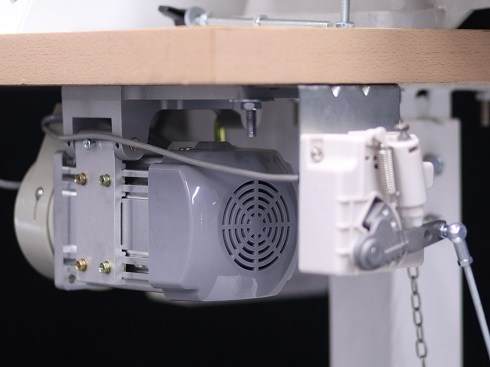

  • 1. Using low speed, high torque extra powerful servo motor (Click here for detail) that allowing you to slow down your sewing machine and sew stitch by stitch (eliminates the need for a now obsolete, "Speed Reducer");
  • 2. The soft start/slow start function helps prevent issues with thread breakage or damage to the material at the beginning of the sewing process;

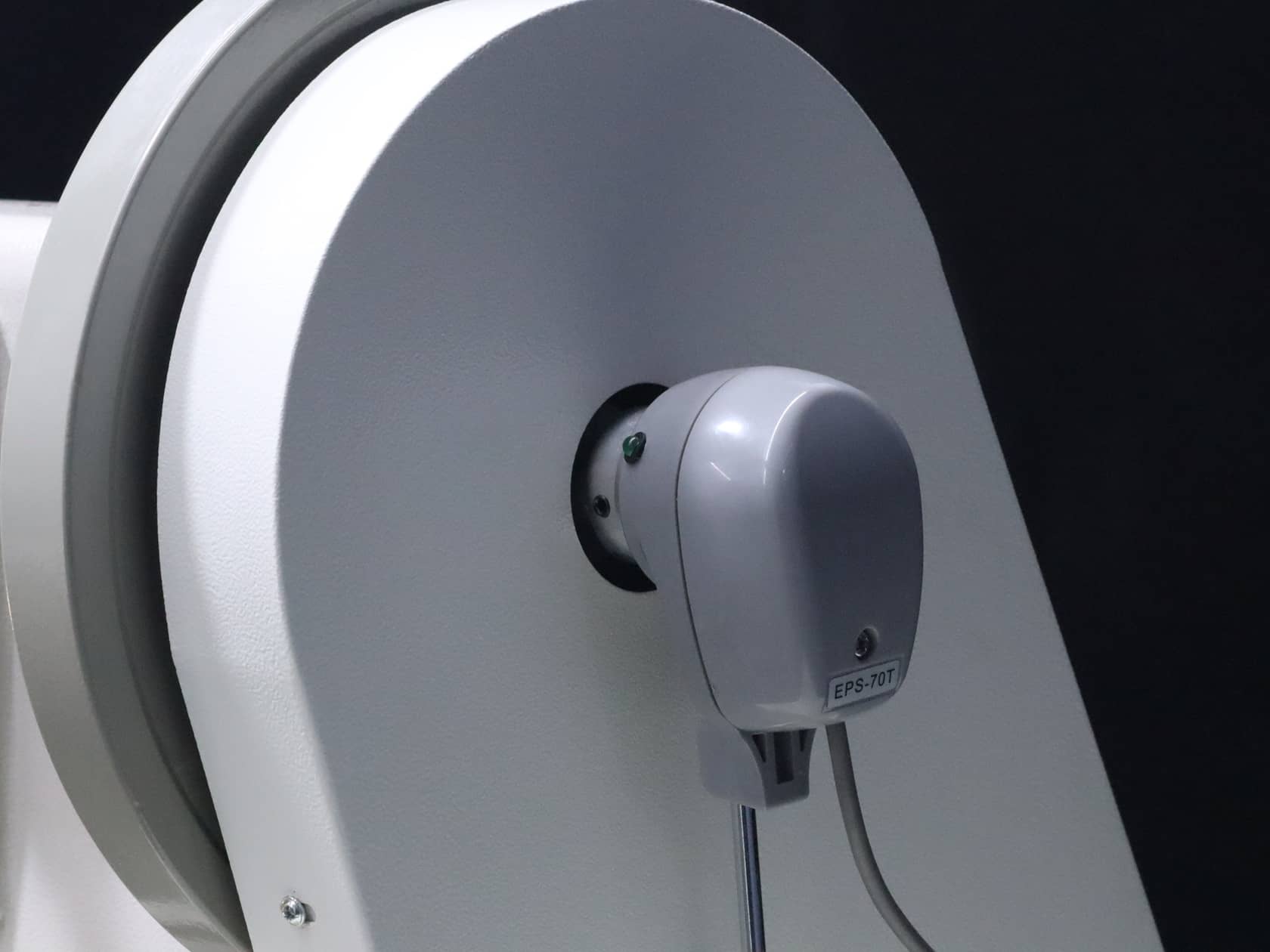

  • 3.The robust needle positioner offers exceptional precision that allows you to achieve perfect stitching alignment, improving overall sewing quality and efficiency;

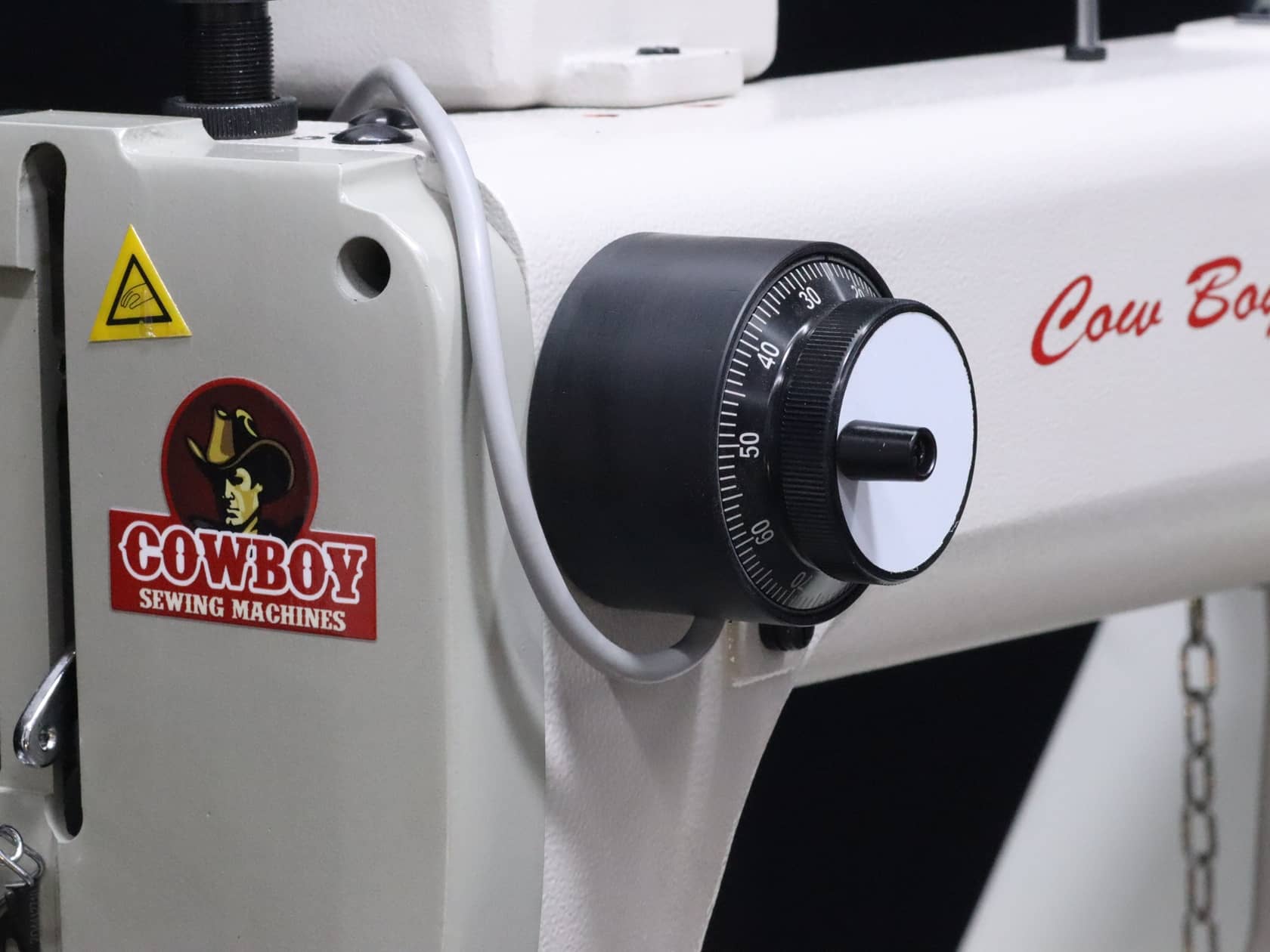

  • 4.Jog-Dial (Optional): simplify needle bar adjustments with a convenient electronic hand wheel, if you need to sew particularly carefully with of accuracy;
  • 5. Speed Controller (Optional)): allow you to adjust sewing speed in a second, essential for sewing thick leather and fine or delicate fabrics;
  • 6. Half stitch (Optional): This micro-adjustment button allows you literally move at a half-stitch at a time if you need to sew particularly carefully with of accuracy, stitch length, angles and where it is needed.
Specifications +

Max Speed: 800 rpm
Max Stitch Length: 3 per inch
Needle: 7x3 or 794: #19-#27
Thread Sizes: #69 - #415
Bobbins: 7/8" x 1" large capacity
Arm Length: 16 1/2"
Arm Diameter: 3 9/16"
Maximum Foot Lift: 1 1/16"
Max Sewn Thickness: 7/8"
Reverses into same holes
750W/110V Slow speed high torque servo motor

Product Information +

The robust and proven construction of the CowBoy CB4500 has made this workhorse an operating equipment for general stitching in leathercrafting and leatherworking ... the CB4500 has become the standard in saddle and harness industry. The compound feed mechanism of this saddlery sewing machine features a feed dog, walking foot, and needle feed that all work in unison to insure feeding of the most difficult materials with ease. It allows one to sew from 4 layers of 16 oz. harness leather down to thin chap material without needing to excessively adjust the sewing machine tensions. Precise reverse mechanism guarantees reverse stitches in same holes. It is capable of sewing most materials up to a maximum thickness of 3/4"-7/8". A right drive motor and control can be the make or break of a good leather sewing machine, CB4500 comes with Kinedyne HM-750SH low speed servo motor - Effortless and precise speed control is now the standard, making sewing smoother and more manageable than ever.
