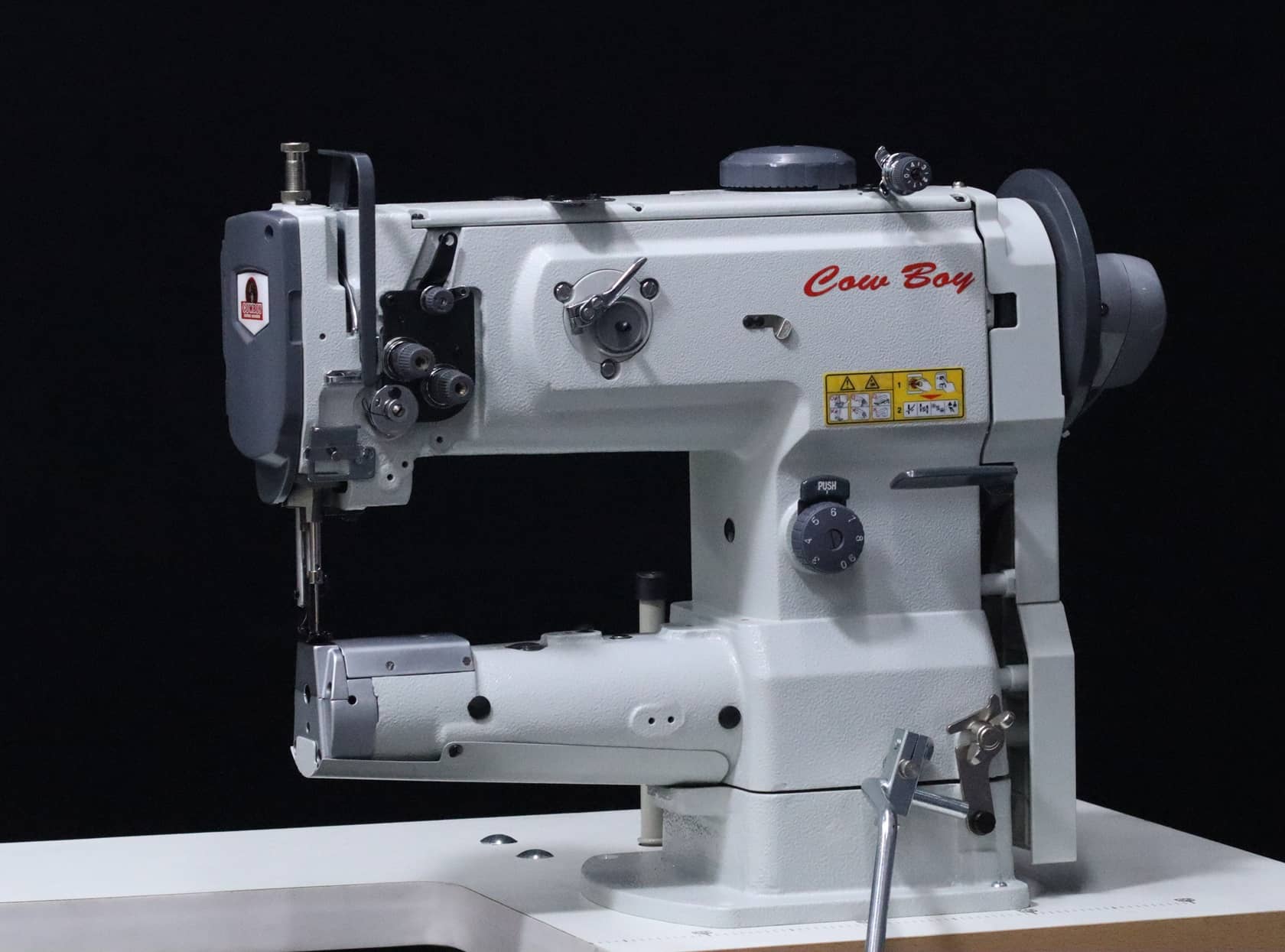

CB6900 Medium-to-Heavy-Duty Cylinder Bed Compound-Feed Leather Sewing MachineIdeal for Handbags, Shoes, Belts, Carpets, and Leathercrafts

Click here for DEMO video

$2,895.00, plus shipping

Special order this machine by calling 330 692 1418. Customer service will be happy to help and provide you with an estimated lead time.

Call us at: 330 692 1418 for more information, or to order

Description +

1. Advanced Rectangular Feed Motion: Traditional elliptical feed mechanisms can struggle when moving over varying leather thicknesses, causing dense, bunched-up, or skipped stitches. The CB6900 features a highly rigid rectangular feed trajectory. This square-drive system ensures the needle and walking foot move in a perfectly flat line across the leather surface, keeping stitch length perfectly uniform even when crossing bulky seams or sewing ultra-soft garment leathers.
2. Dual-Tension (Double Clamping) System:The machine includes a dual-tension control assembly (often called a secondary thread clamp). This lets you micro-adjust upper thread tension for highly irregular textures or heavy-gauge thread. It prevents loose loops or bunched stitching on the backside of your work, producing an ultra-clean, boutique-grade lockstitch finish.
3. On-the-Fly Walking Foot Adjustment: A convenient dial located right on top of the machine allows you to quickly alter the alternating vertical stroke ratio of the inner and outer presser feet (ranging from 2.5mm to 7.0mm). If your handbag project transitions from 2 layers of soft leather to a thick 4-layer corner "hill," you can adjust the feet on the fly so the machine climbs the obstacle seamlessly without lagging or marring the leather face.
4. Slim Cylinder Base for Tight Curves: With a 72mm diameter cylinder arm and a 10.5-inch length, the arm is slim enough to navigate tight radius corners, sharp curves, or the inside cavities of small purses and shoes. It also allows you to sew incredibly close to the left flange of the cylinder head, making narrow gusset and edge-stitching work effortless.
5. Massive 16mm Presser Foot Clearance: While designed for precision, it possesses massive lifting power. The presser foot can be raised up to 16mm high via the knee lifter. This makes it incredibly easy to slide bulky, multi-layered bag rims, canvas straps, or padded upholstery under the needle. It comfortably sews an everyday thickness of 8mm and can push up to 12mm–13mm under optimal conditions.
6. Semi-Automatic Oil Pump System: Unlike many older manual cylinder machines that require you to oil dozens of tiny holes by hand every few hours, the CB6900 has an integrated internal automatic oil pump. It self-lubricates critical high-wear internal shafts during operation, drastically reducing user maintenance and guaranteeing a long operational lifespan.
7.Large Drop-In "M-Class" Bobbin: It utilizes a large, vertically oriented M-Class hook and bobbin system. This bobbin holds significantly more thread than standard cylinder arm machines, allowing you to sew extensive runs of heavy bonded threads (like #138 or #207 nylon) without constantly stopping to rewind or swap your bobbin.
8.Precision Speed Control: Usually paired with a Kinedyne low-speed, high-torque servo motor, the system allows millimeter-by-millimeter stitch control. This ultra-slow, consistent pace is crucial for beginners or experts executing highly intricate artisan topstitching.

Specifications +

Max Speed: 2500 rpm
Max Stitch Length:6mm
Needle:DP×17 / 135×17 Nm 125-180
Thread Sizes: #10 (=T-270, V277, 840dx3)
Max. top feed stroke: 7mm
Arm Length:260mm
Arm Diameter:72mm
Maximum Foot Lift: 16mm
Max Sewn Thickness:14mm
Reverses into same holes
750W/110V Slow speed high torque servo motor

Product Information +

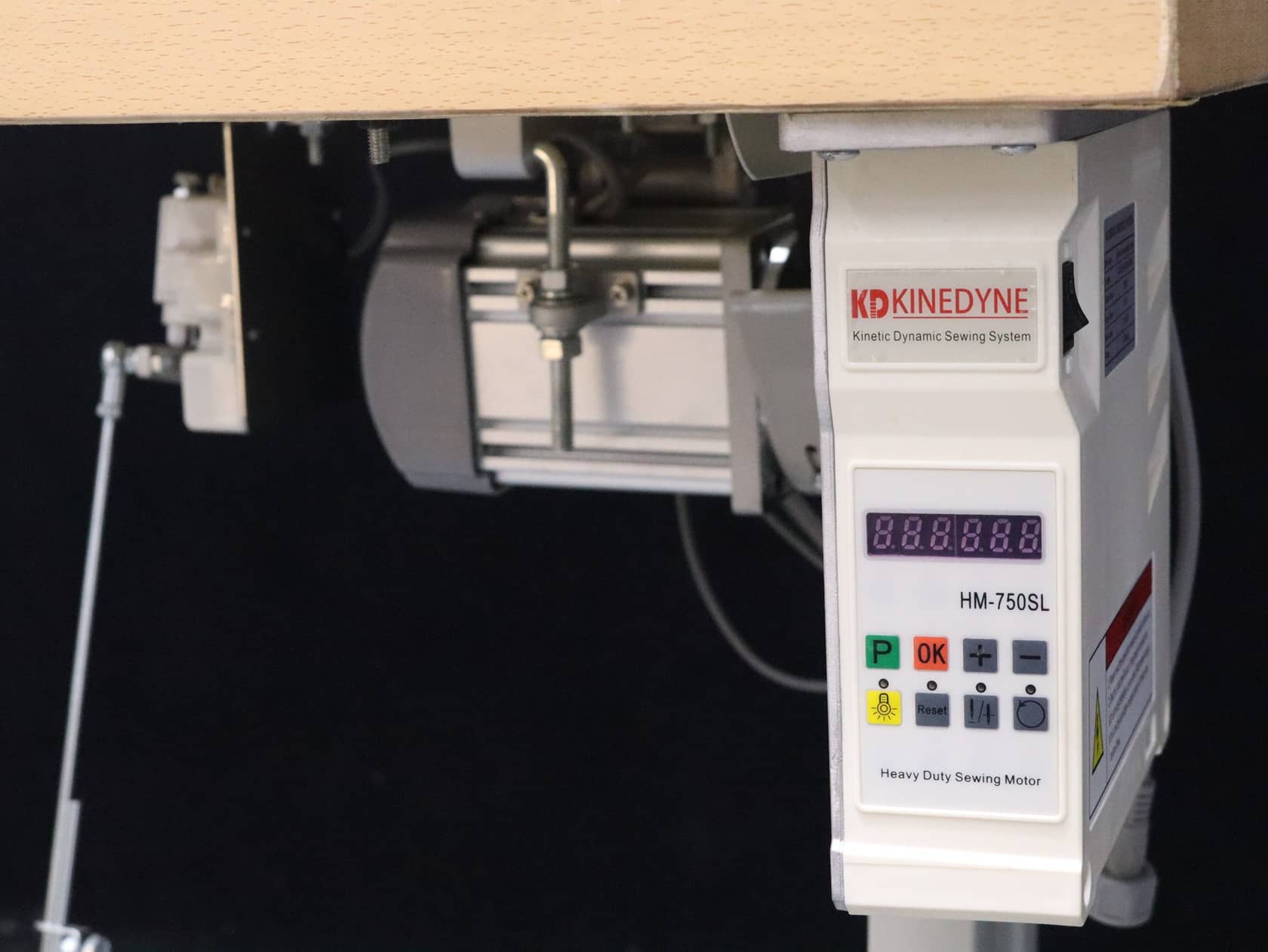

This cylinder-arm walking foot (compound feed) sewing machine is a consistent global bestseller for craftsmen sewing handbags, purses, wallets, and similar leather goods. Highly rated with a massive worldwide following, the CB6900 delivers an exceptionally consistent stitch pitch and an outstanding ability to sew sharp curves. It handles medium-to-heavyweight materials—such as leather, vinyl, canvas, cork, webbing, and synthetics—with effortless precision.Key features include an extra-high 16mm presser foot lift for easy material handling, and a large shuttle hook with high-capacity bobbins to ensure extended runtime, even when using thick thread. The machine easily accommodates thread sizes from Tex 70 up to Tex 210. Additionally, a full array of specialized attachments and sewing equipment is available to maximize productivity and achieve perfect seam quality. Powered by the Kinedyne HM-750SL precise speed control servo motor, it allows you to sew at very slow, consistent speeds—making it ideal for intricate artisan work and beginners alike.
