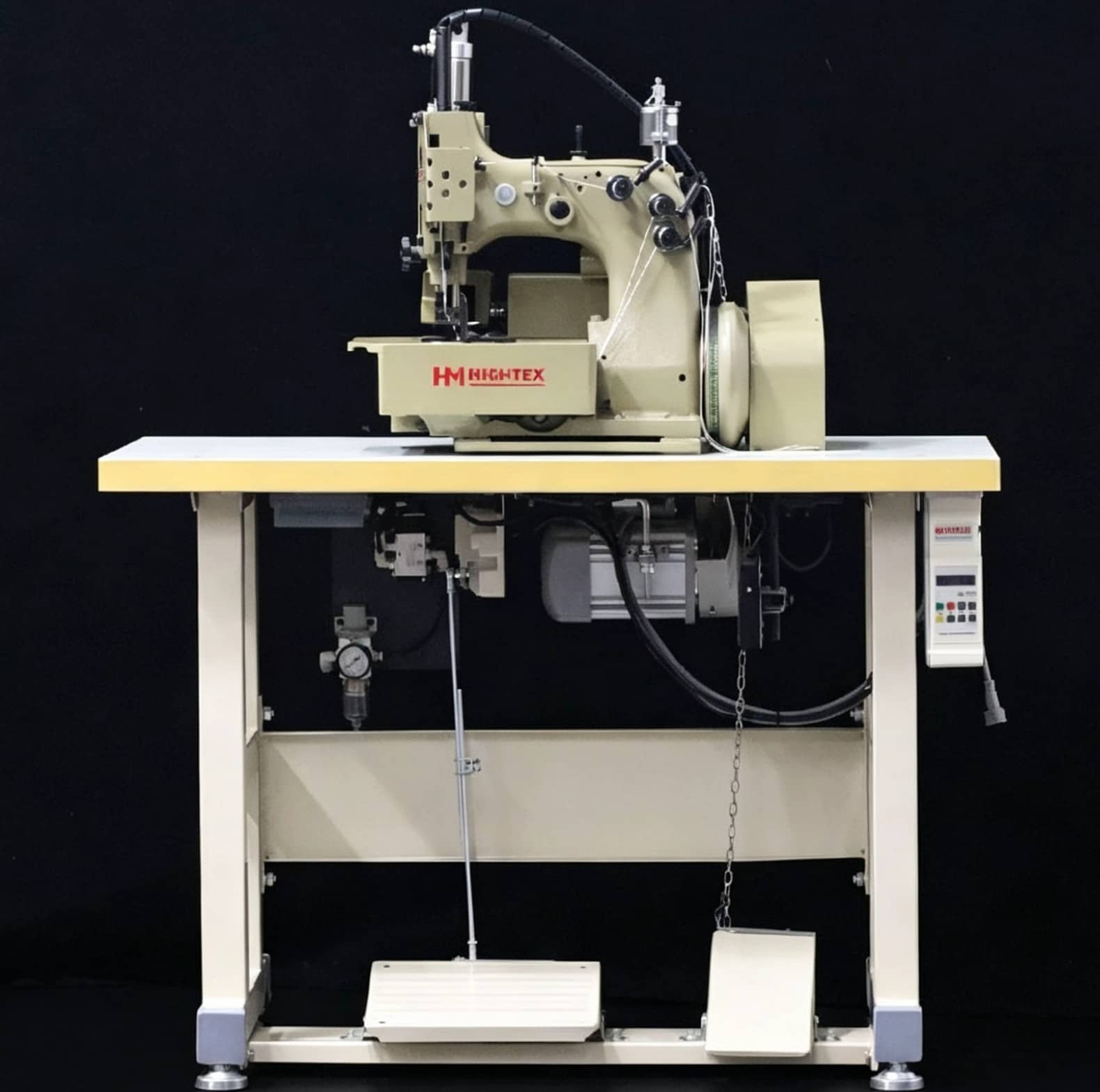

FIBC500 Heavy-Duty 3-Thread Net Overedging Sewing Machine

Industrial Netting & Rope Overedging Machine

Union Special 81500CZ Overedging machine

FIBC500 Heavy-Duty 3-Thread Net Overedging Sewing Machine thumbnail

Industrial Netting & Rope Overedging Machine thumbnail

Union Special 81500CZ Overedging machine thumbnail

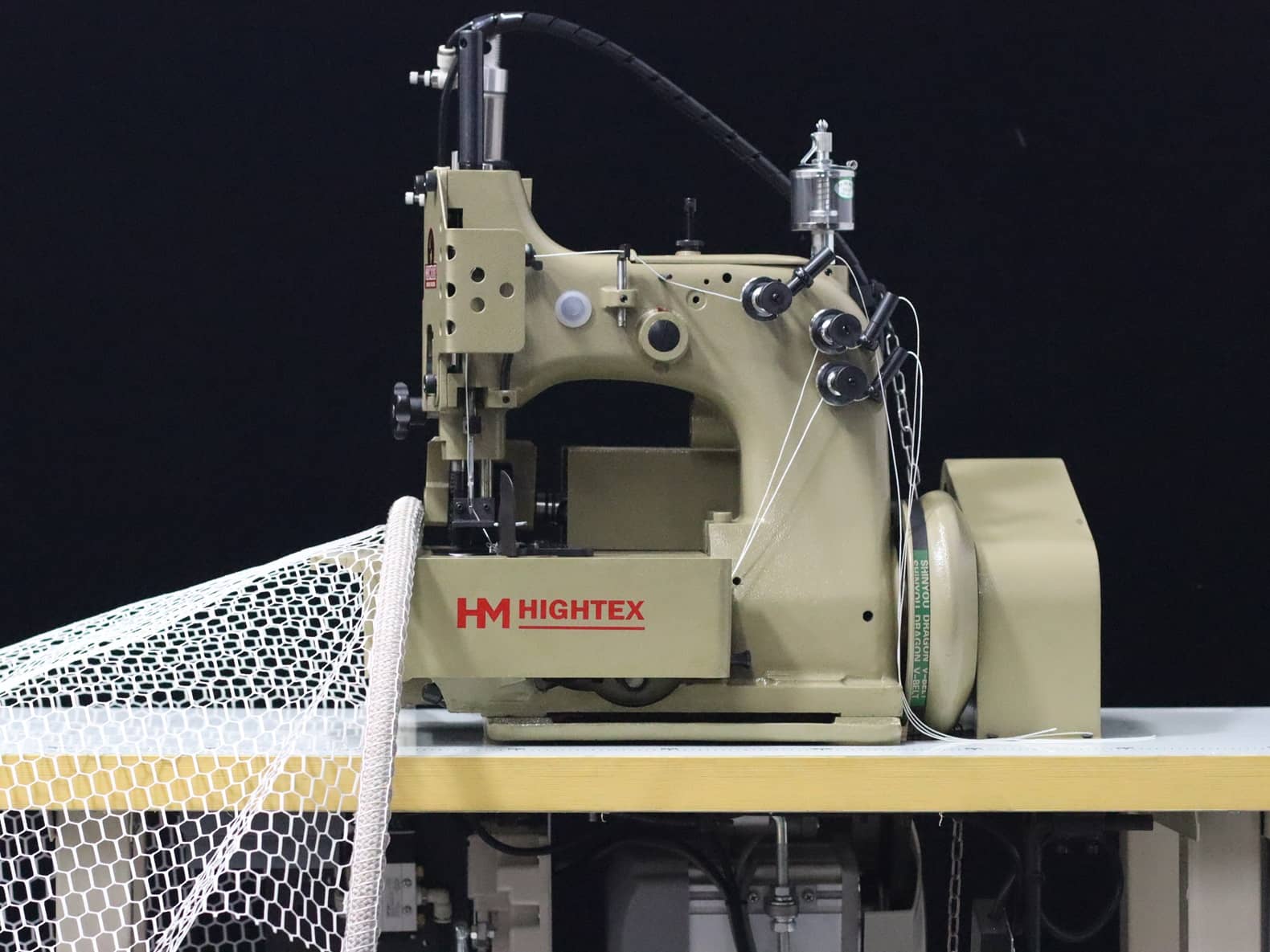

attaching 20mm rope to net border thumbnail

FIBC500 Heavy-Duty 3-Thread Net Overedging Sewing Machine | Industrial Netting & Rope Overedging Machine

Video on YouTube

$9995.00, plus shipping

Special order this machine by calling 330 692 1418. Customer service will be happy to help and provide you with an estimated lead time.

Call us at: 330 692 1418 for more information, or to order

Description +

1. Heavy-Duty Stitching: Single-needle, 3-thread overedge system designed for attaching tensioning and border ropes to nets.
2. High Capacity: Effortlessly sews ropes up to 20mm thick (varying by net thickness and knot size).
3. Optimized Mesh Size: Perfect for joining nets with a mesh width of 45mm or larger.

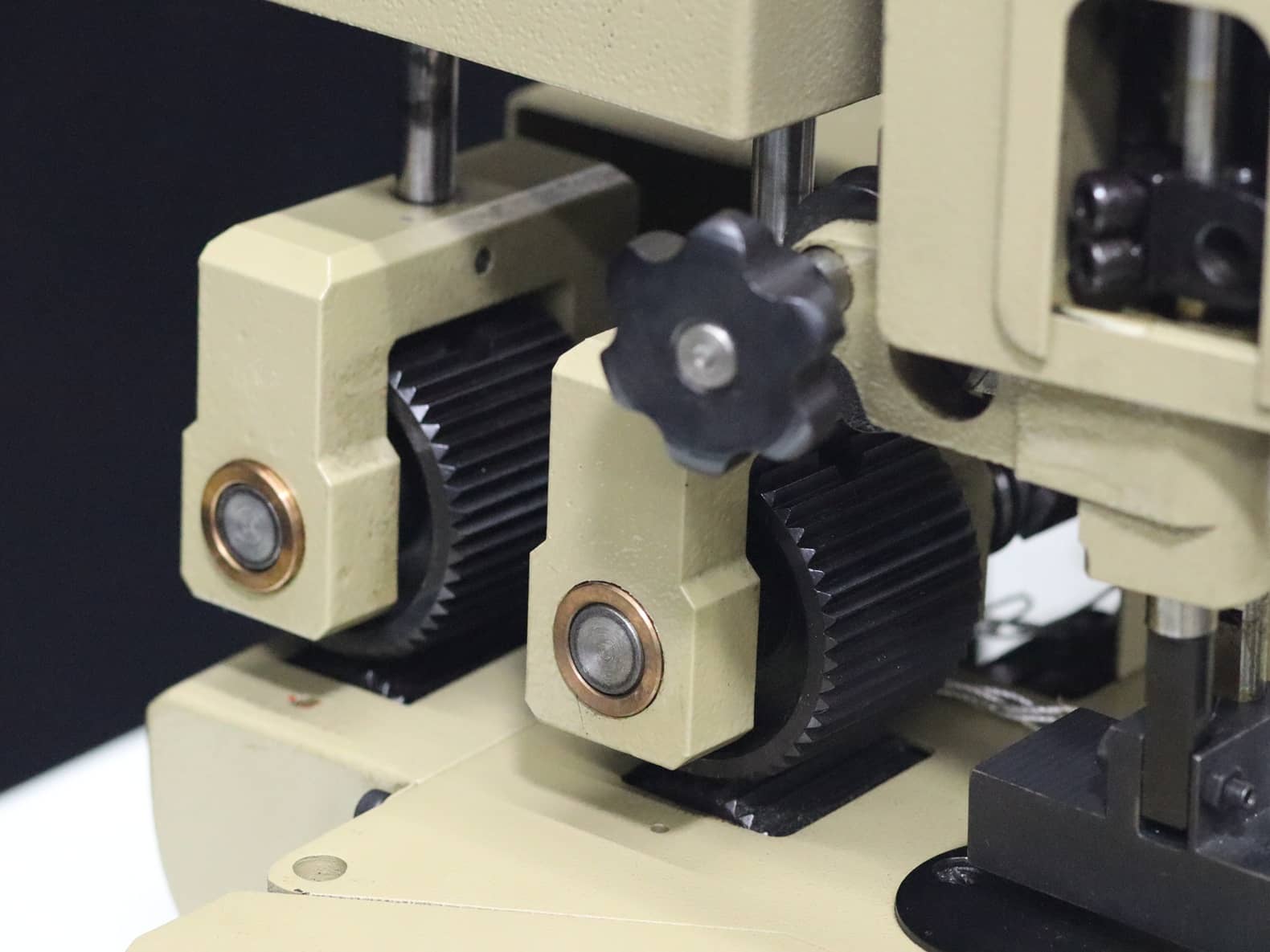

4. Advanced Puller Feed: Standard top and bottom synchronized puller feed ensures smooth, wrinkle-free material transport.
5. Revolutionary Servo Motor: Equipped with a next-generation industrial servo motor that is exceptionally powerful, silent, reliable, and energy-efficient.
6. Versatile Applications: Ideal for manufacturing and customizing sports nets, safety/fall-arrest nets, fishing nets, military cargo nets, climbing nets, agricultural netting, and barrier solutions.

Specifications +

Stitch types:504
Max. Sewing Capacity:16-25 mm
Max. sewing speed:1500 RPM
Capacity under presser foot:23mm
Needle System:9853GA300/120
Feed type:Top and bottom feed + puller feed
Total Overedge Stitch Width:23mm
Stitch range:4 - 12mm

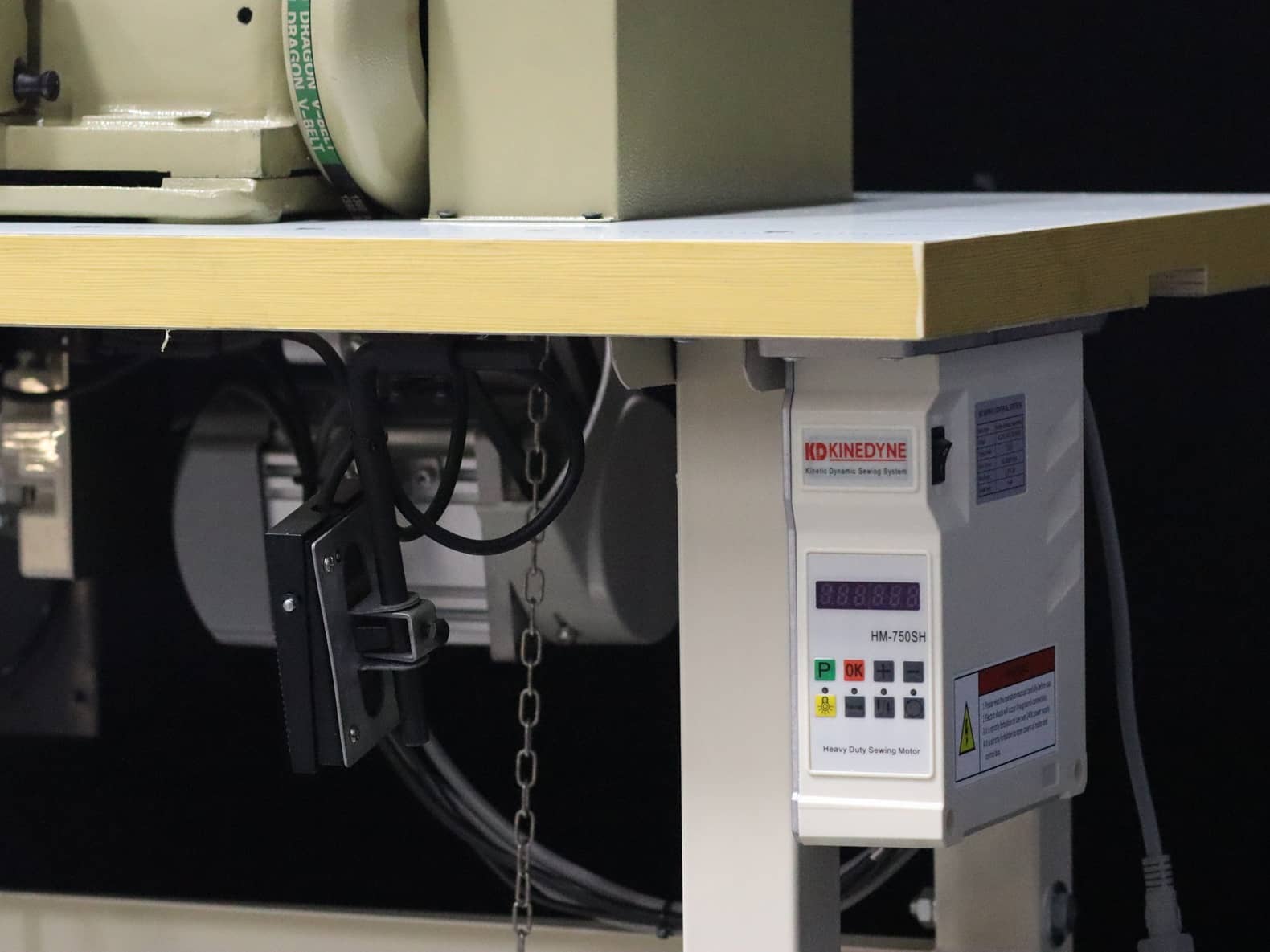

Motor: HM-750SH 750W High Torque servo motor
Air pressure:0.6 MPa
Thickness of Ropes:6-20mm
Needle Stroke:71mm
Number of yarn:3
Needle Thread:Net Yarn 210/24 or 210/30, PP Yarn, 4000 Denier
Looper Thread:Net Yarn 210/24 or 210/30, PP Yarn, 4000 Denier
Package (assembly): 1050x1380x625MM, 135KGS

Product Information +

The FIBC500 is a single-needle, 3-thread extra heavy-duty overedging machine designed specifically for attaching border and tensioning ropes to nets. It seamlessly handles ropes up to 20mm thick, depending on net density and knot size. Engineered for joining nets with a mesh width greater than 45mm, it is standard-equipped with a synchronized top and bottom puller feeding system. Driven by a revolutionary, high-torque industrial servo motor, this machine delivers ultra-powerful, whisper-quiet, and energy-saving performance.
